Door Control Module Schematics (FDDM Inputs, Outputs, and Class 2)

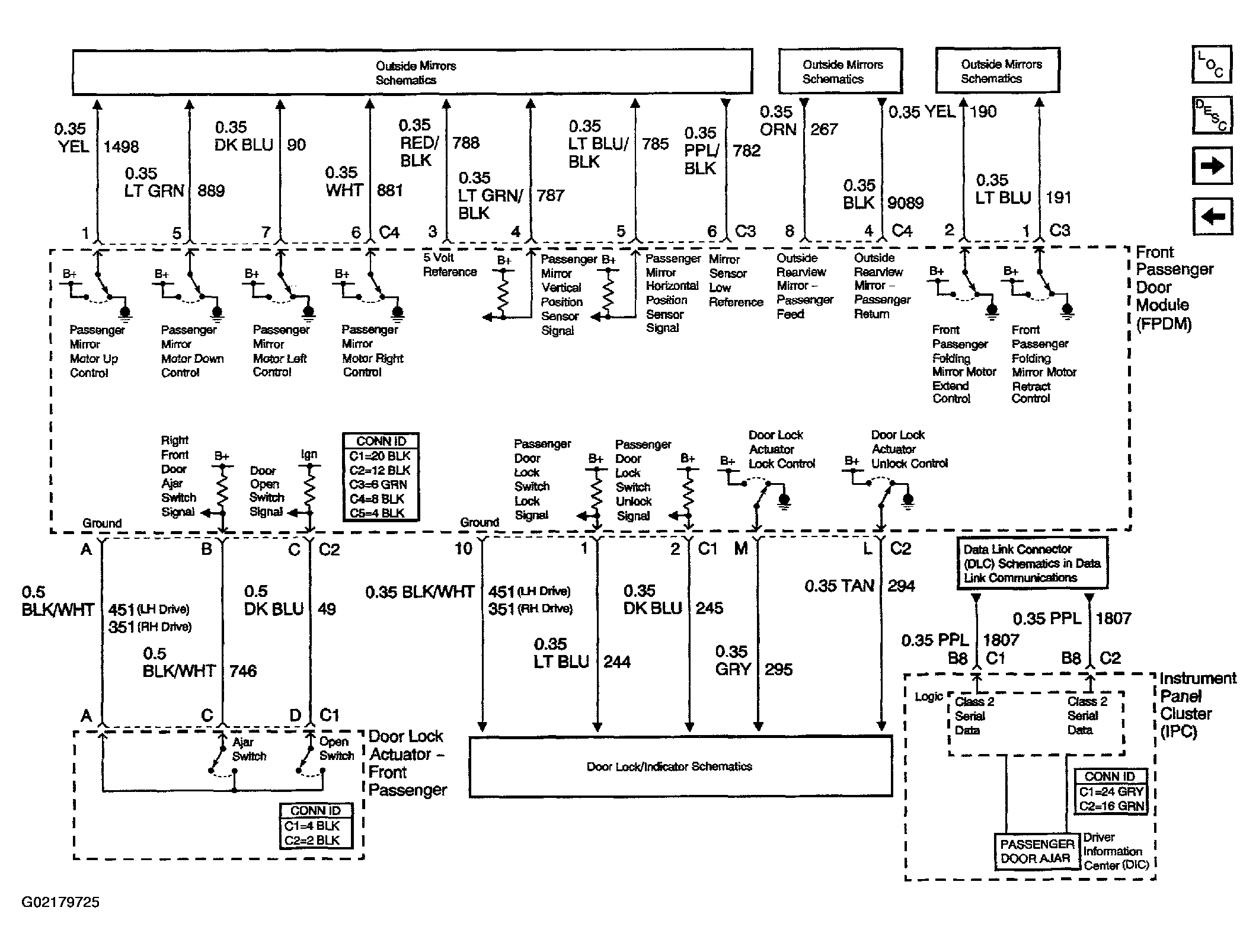

Fig 1: Door Control Module Schematics (FDDM Inputs, Outputs, And Class 2)
G02179725Courtesy of GENERAL MOTORS CORP.
