Installation Procedure

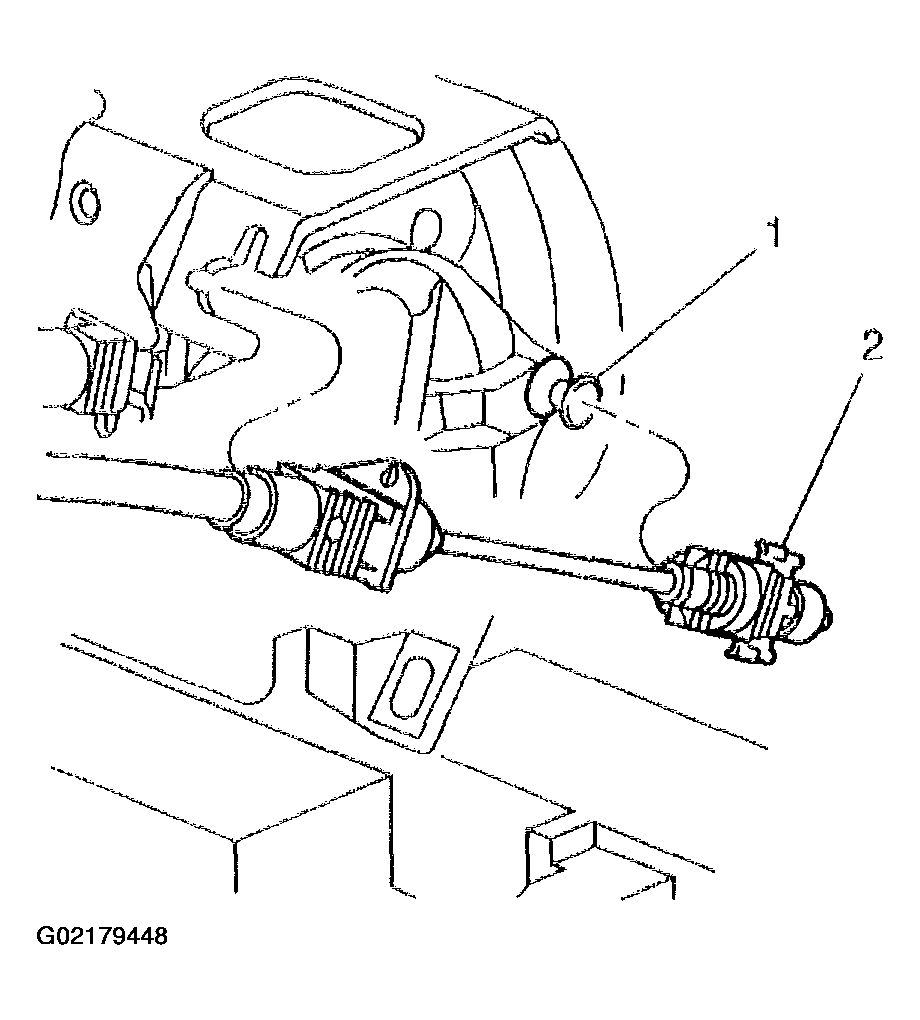

Install the cruise control cable (1) to the cruise control module.

Fig 1: Installing Cruise Control Cable To Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Install the cruise cable to the throttle lever (1) and to the throttle body bracket.

Fig 2: Installing Cruise Control Cable To Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION for the complete operational details.

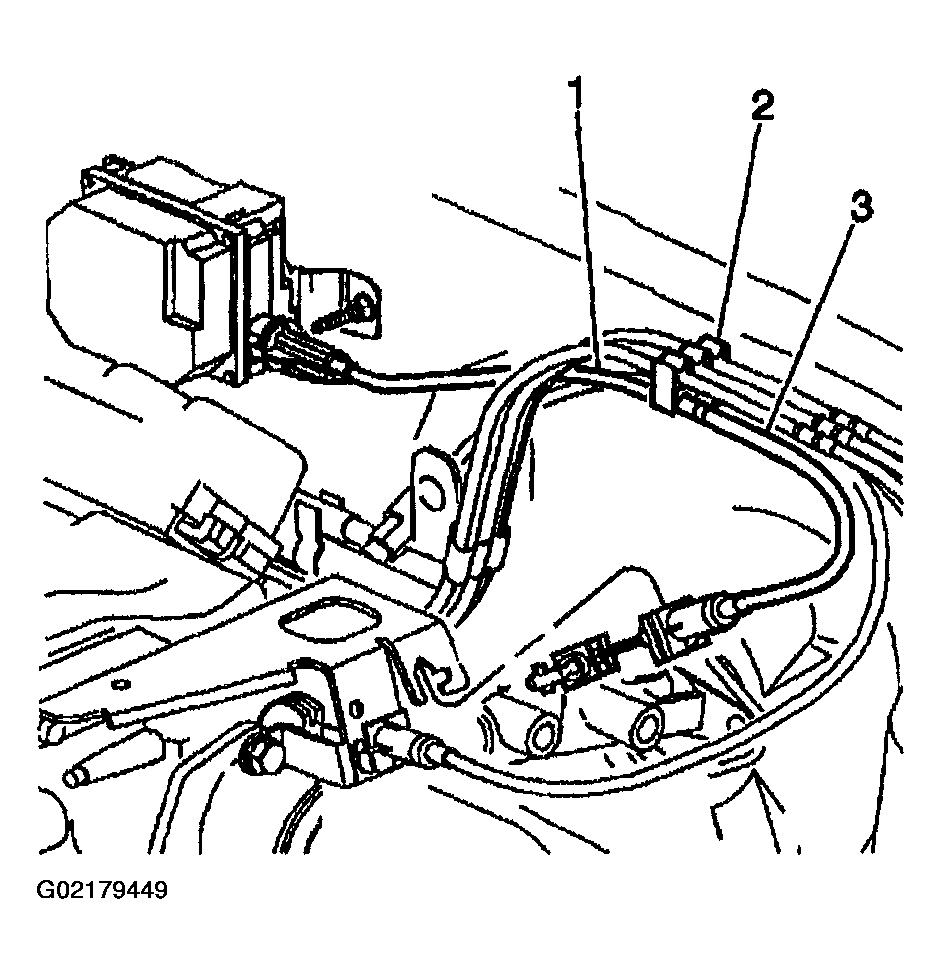

Install the cable (1) to the retainers (2).

Fig 3: Installing Cruise Control Cable To Retainers
Courtesy of GENERAL MOTORS CORP.
