Home
›
Cadillac
›
2003
›
Seville SLS
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Cellular Communication System
›
Diagnostic Information and Procedures
›
Scan Tool Data List
›
OnStar® Vehicle Communication Interface Module
OnStar® Vehicle Communication Interface Module

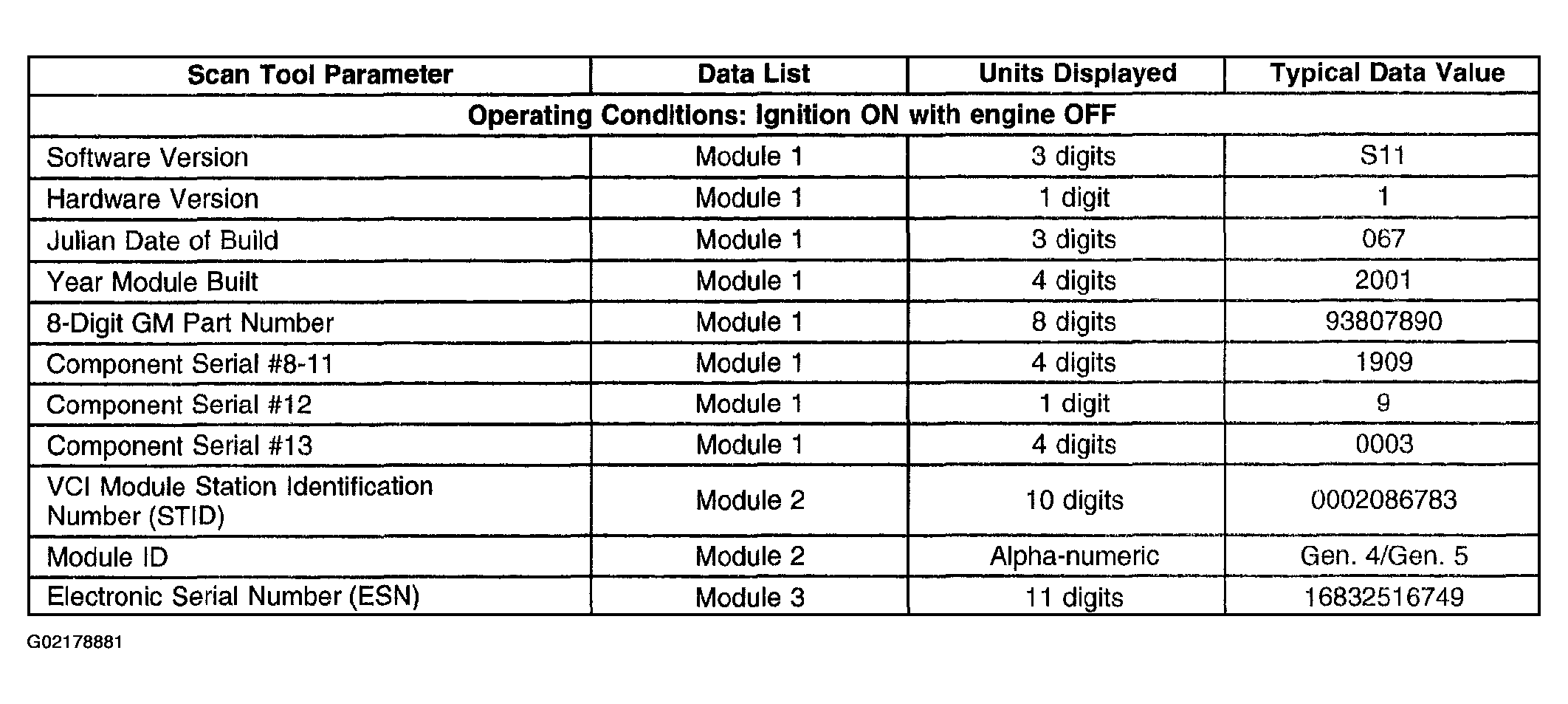

Fig 1: Onstar® Vehicle Communication Interface Module - Scan Tool Data Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
