Cellular Telephone Schematics: Notes

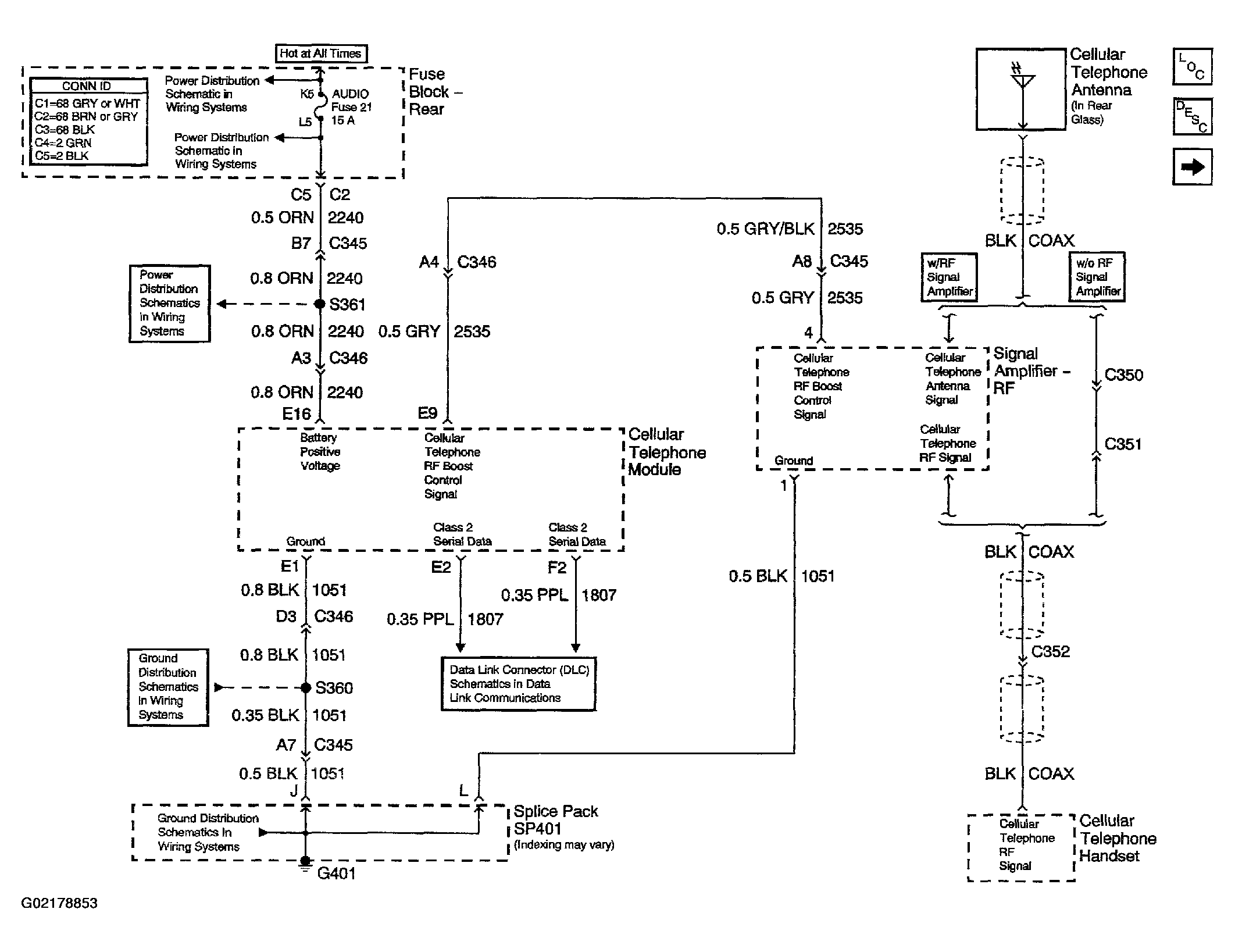

Fig 1: Cellular Telephone Schematic Diagram (Power, Ground & Class 2)
G02178853Courtesy of GENERAL MOTORS CORP.
