Navigation System Connector End Views

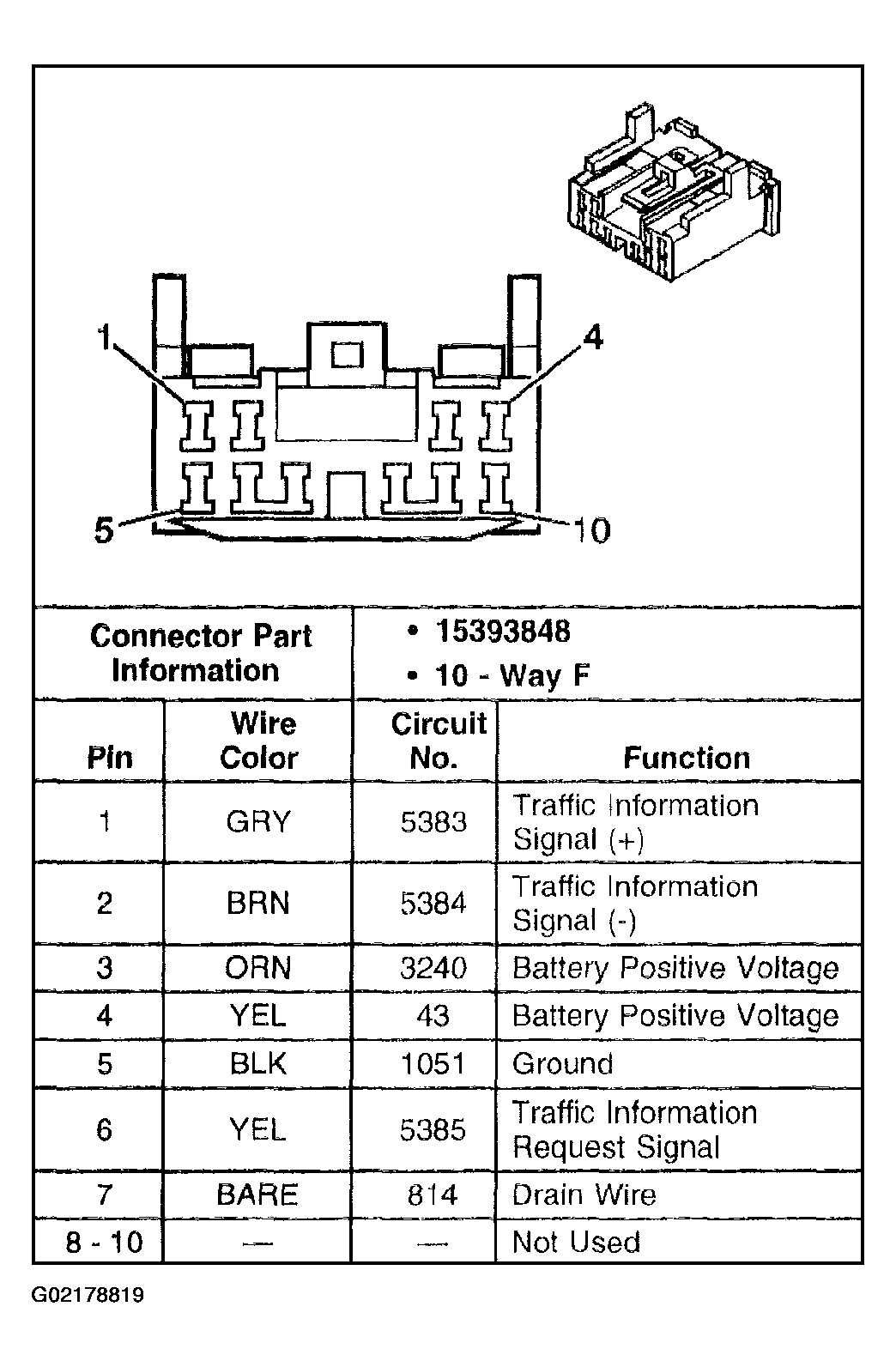

Fig 1: Traffic Information Receiver (VICS) Connector End View
G02178819Courtesy of GENERAL MOTORS CORP.
