Installation Procedure

Install the TV antenna module, ensuring the locating tab is positioned properly.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the retaining fastener.
Tighten

Tighten the TV antenna module fastener to 10 N.m (89 lb in).
Connect the electrical connectors to the TV antenna module.

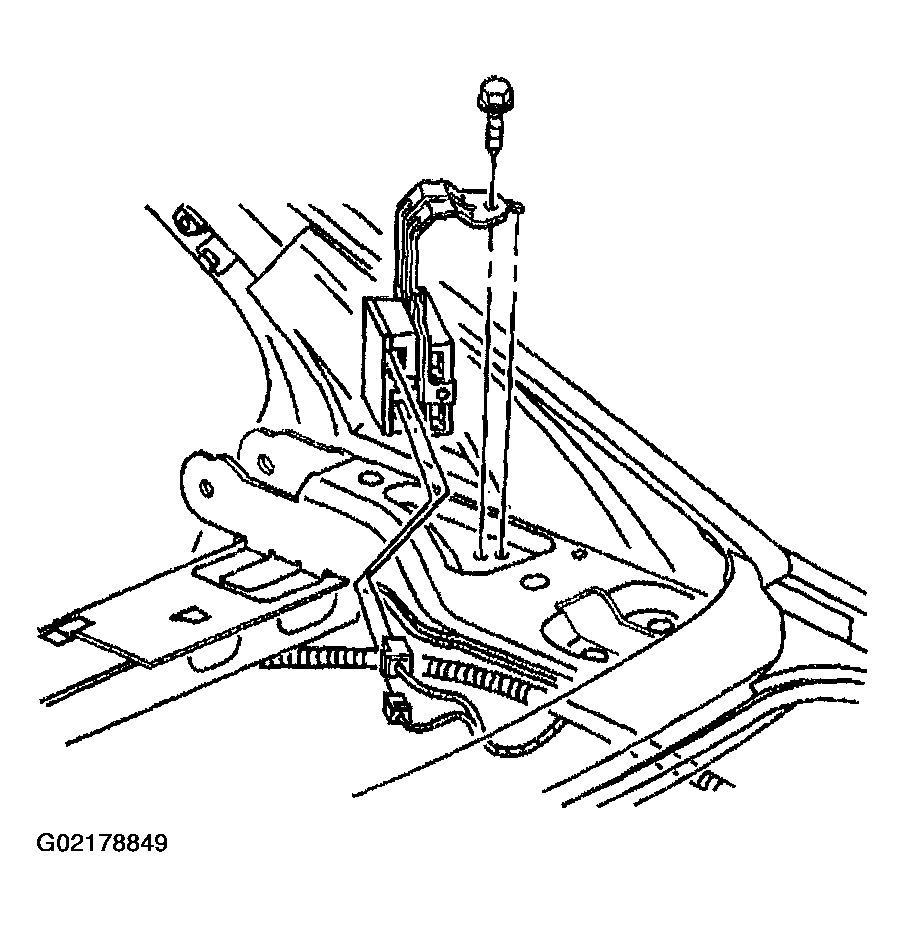

Fig 1: Installing TV Antenna Module Assembly
Courtesy of GENERAL MOTORS CORP.
Install the rear shelf trim panel. Refer to INTERIOR TRIM in Interior Trim.
