Theft Deterrent System
›
Component Locator
›
Theft Deterrent System Component Views
›
Theft Sub-System
Theft Sub-System

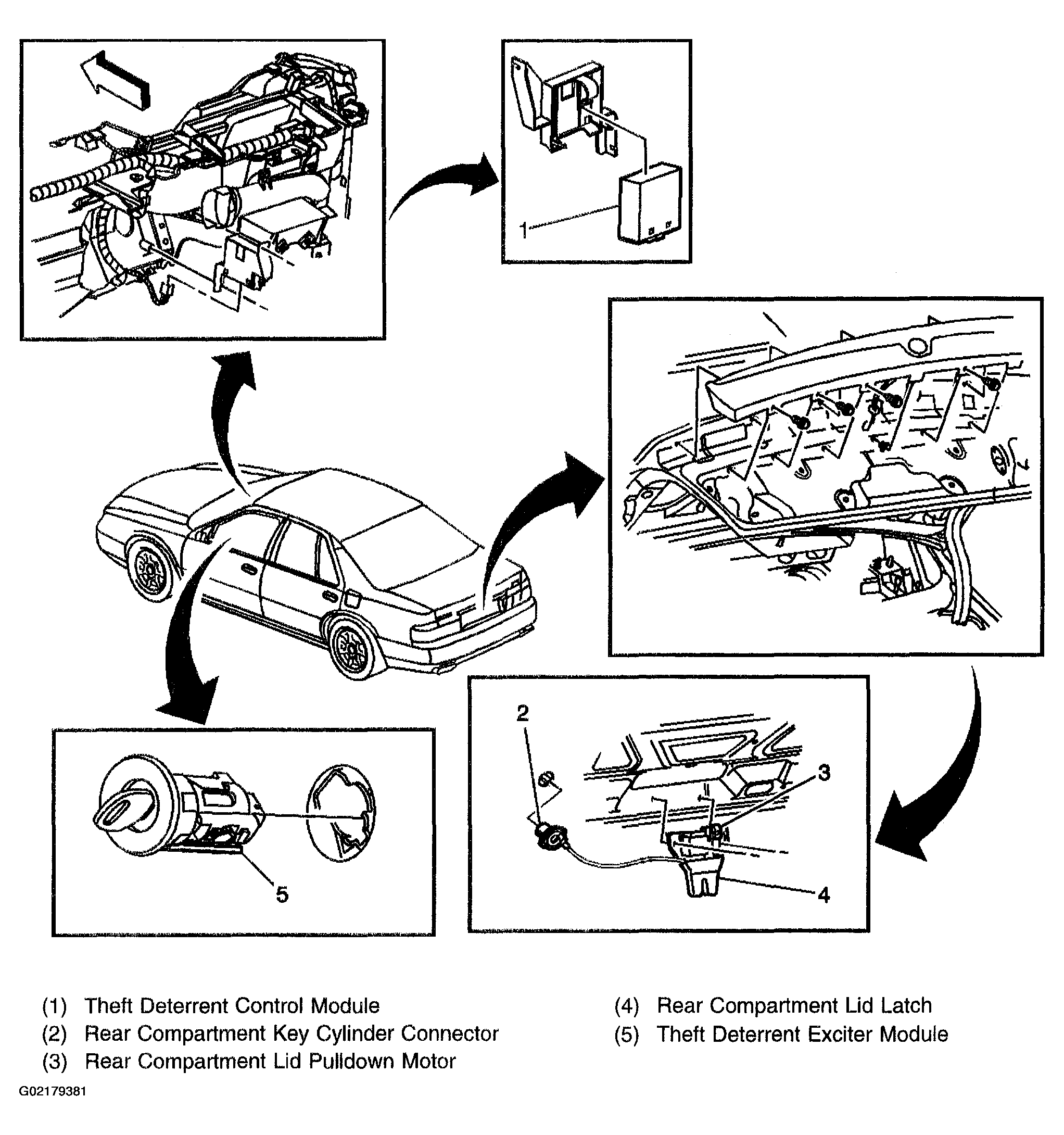

Fig 1: Theft Sub-System Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
