Removal Procedure

The replacement (VTD) modules are manufactured to be able to learn the FIRST key that is used to start the vehicle. When learning the first key, simply insert the ignition key and turn the ignition ON. All other keys (spare keys) will need to be programmed to function with the replacement VTD module. Refer to ADDING KEYS (DOMESTIC)   or ADDING KEYS (EXPORT)   .

1. Remove the driver side sound insulator. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  or INSTRUMENT PANEL, GAGES, AND CONSOLE  or CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD)  or INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel Gages and Console.
2. Disconnect the electrical connector from the module.

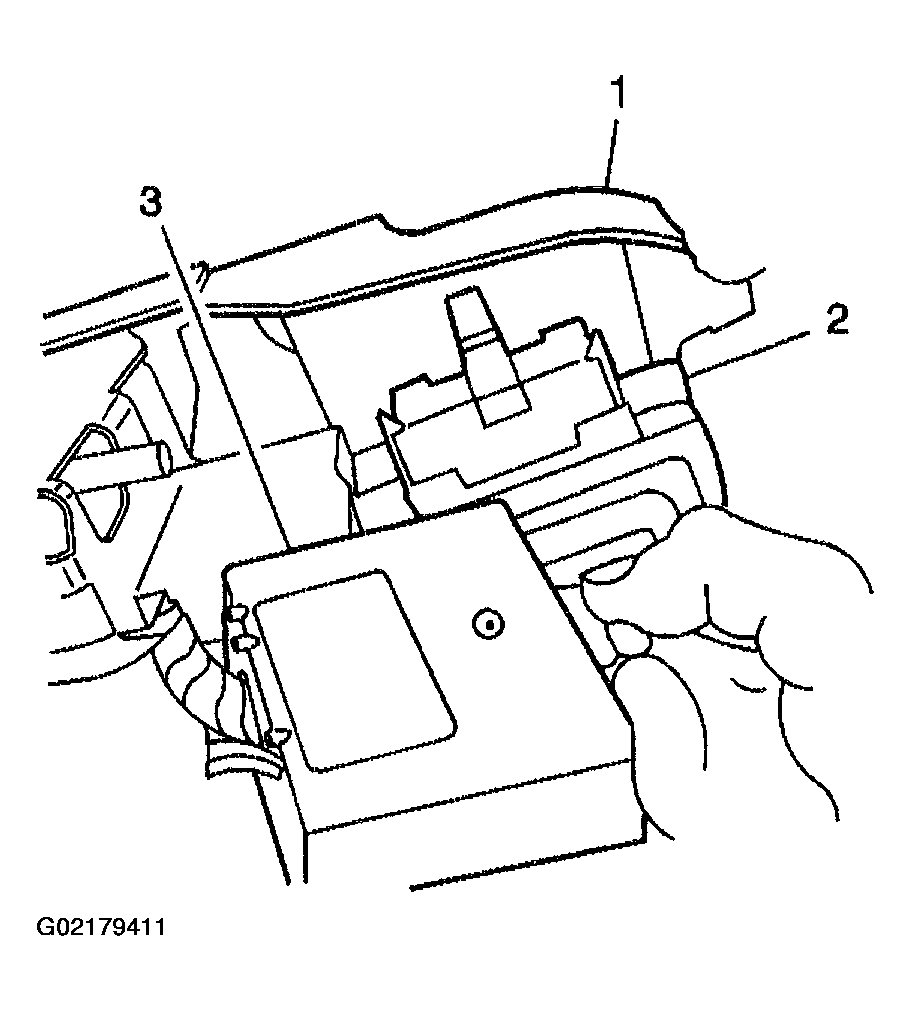

3. Move the bottom of the module (3) towards the brake pedal first and then slide down from the bracket (2).
   Fig 1: Removing Theft Deterrent Control Module

   Courtesy of GENERAL MOTORS CORP.
