Door Control Module Schematics (RRDM Power, Ground, Inputs, Outputs, and Class 2)

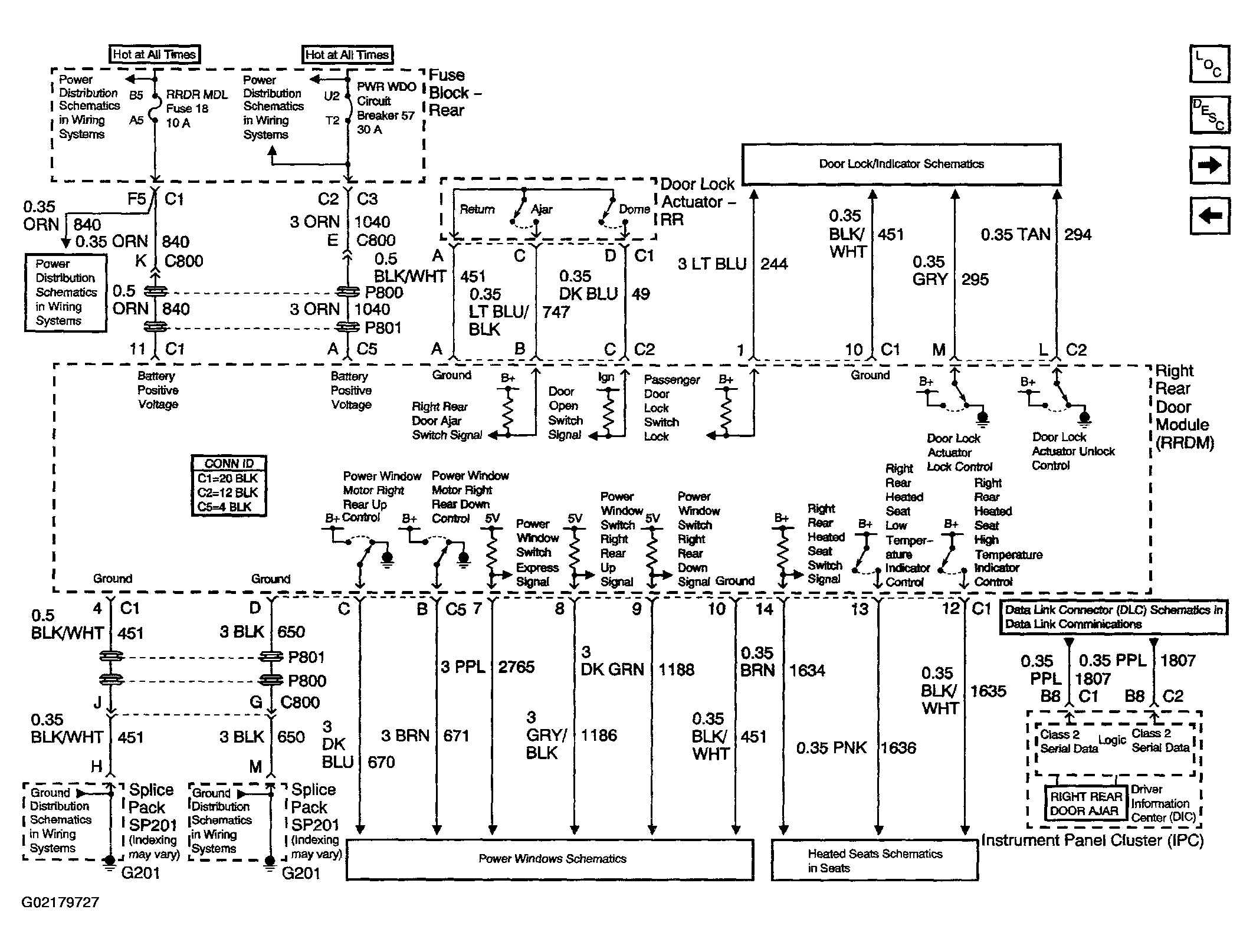

Fig 1: Door Control Module Schematics (RRDM Power, Ground, Inputs, Outputs, And Class 2)

Courtesy of GENERAL MOTORS CORP.
