Anti-Lock Brake System Sub-System (2 of 2)

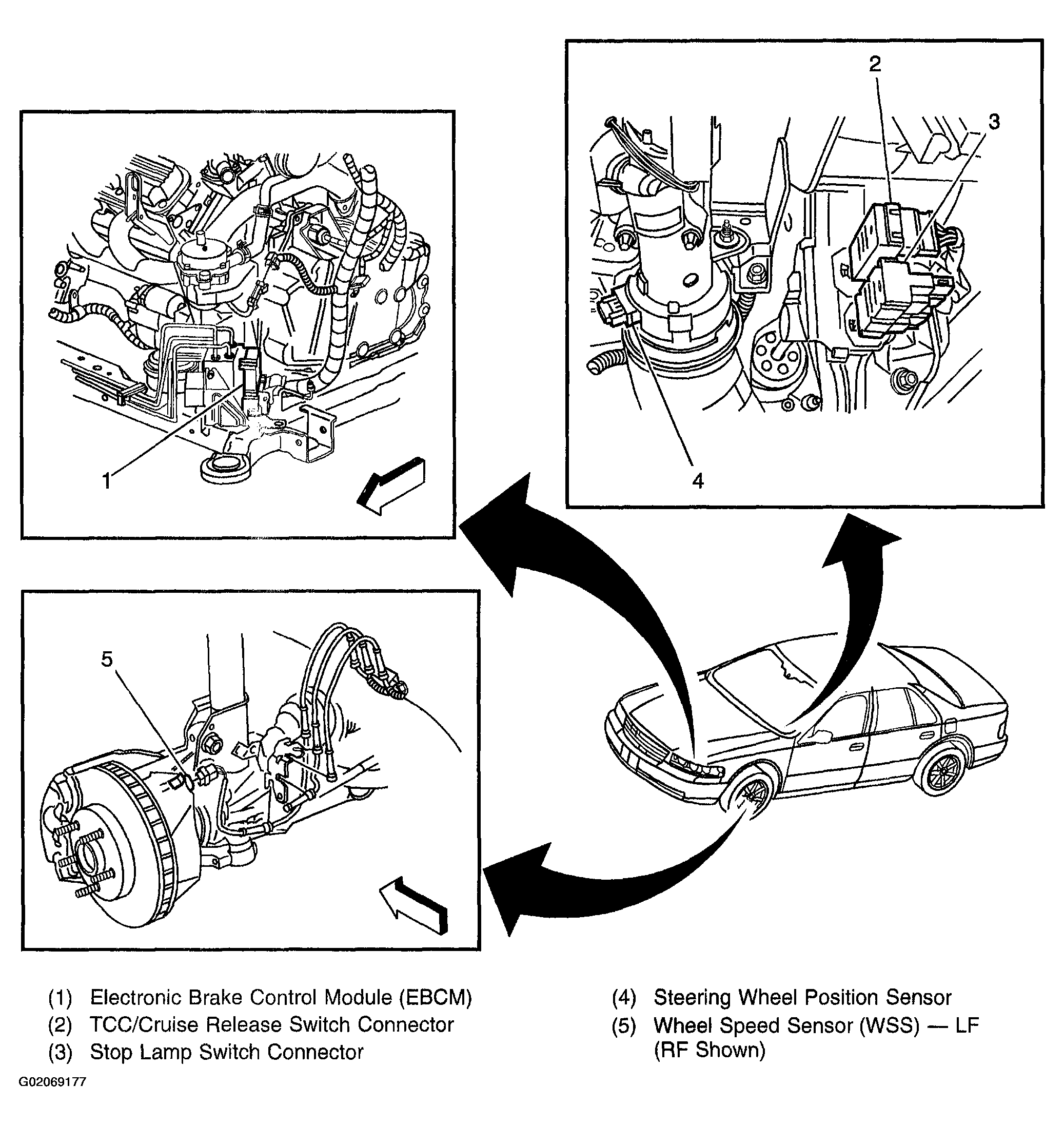

Fig 1: ABS Component Views - Anti-Lock Brake System Sub-System (2 of 2)
G02069177Courtesy of GENERAL MOTORS CORP.
