Lateral Accelerometer Sensor
Lateral Accelerometer Sensor

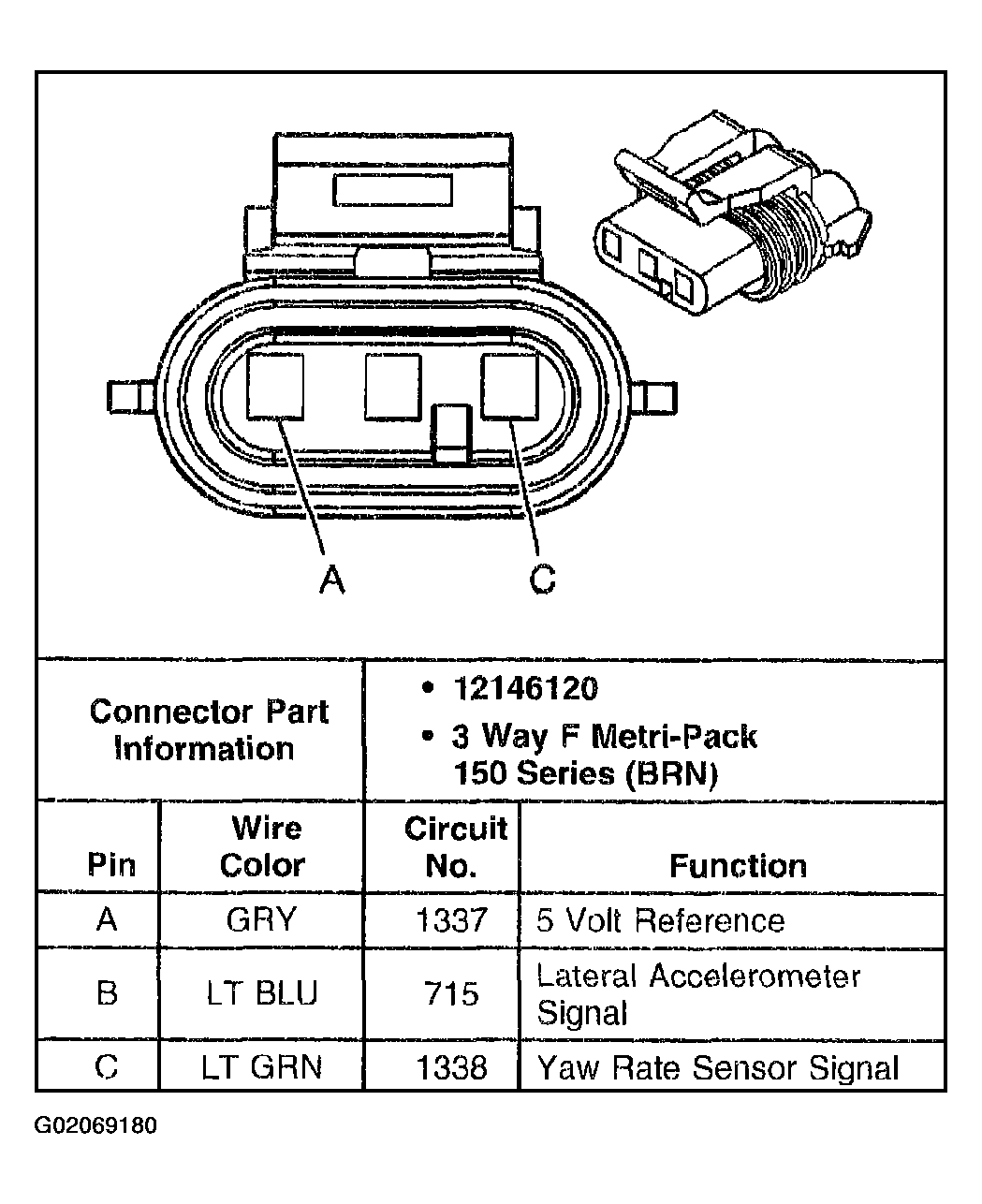

Fig 1: Identifying Lateral Accelerometer Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
