Stoplamp Switch C1
Stoplamp Switch C1

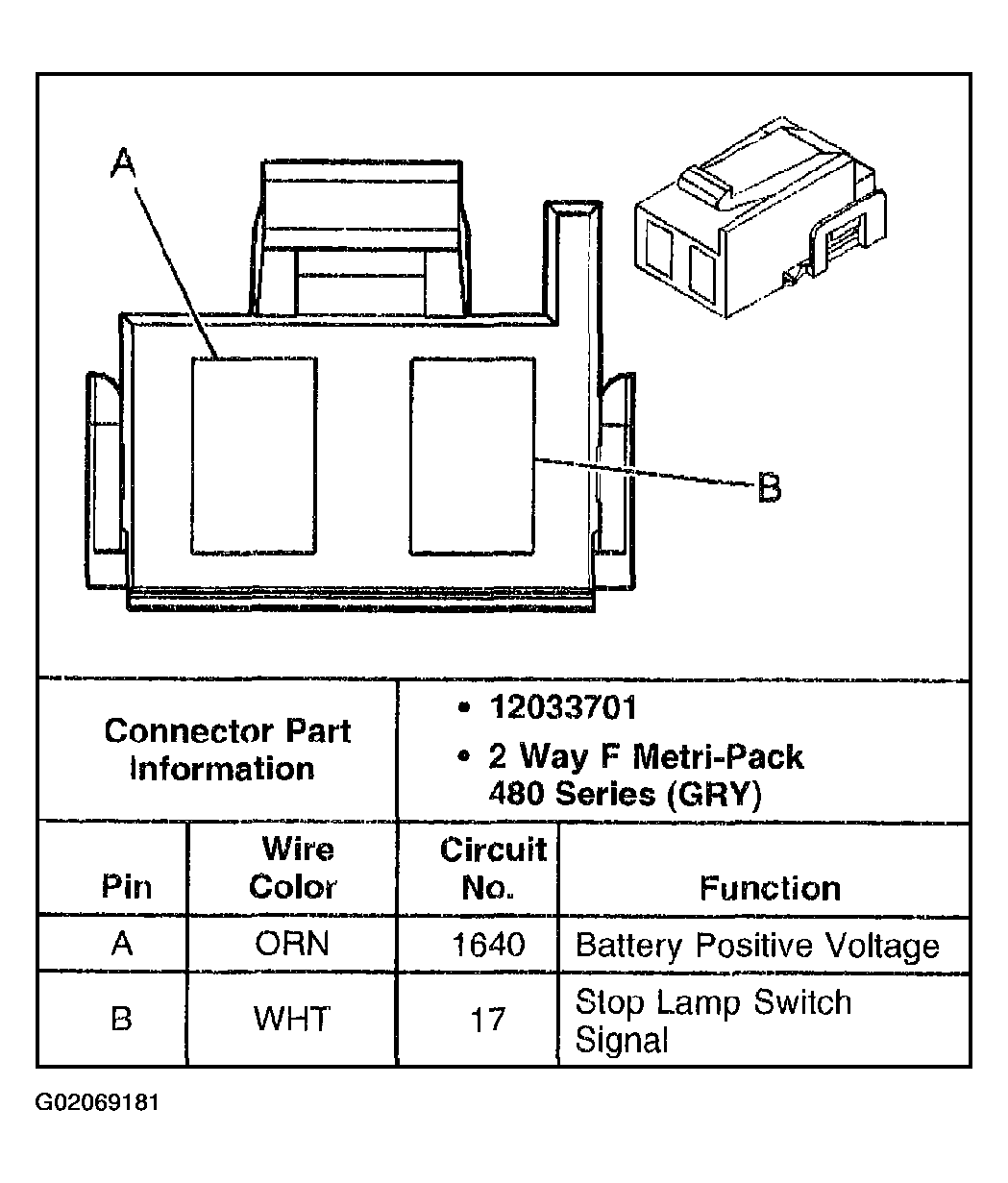

Fig 1: Identifying Stoplamp Switch C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
