Electronic Brake Control Module (EBCM)

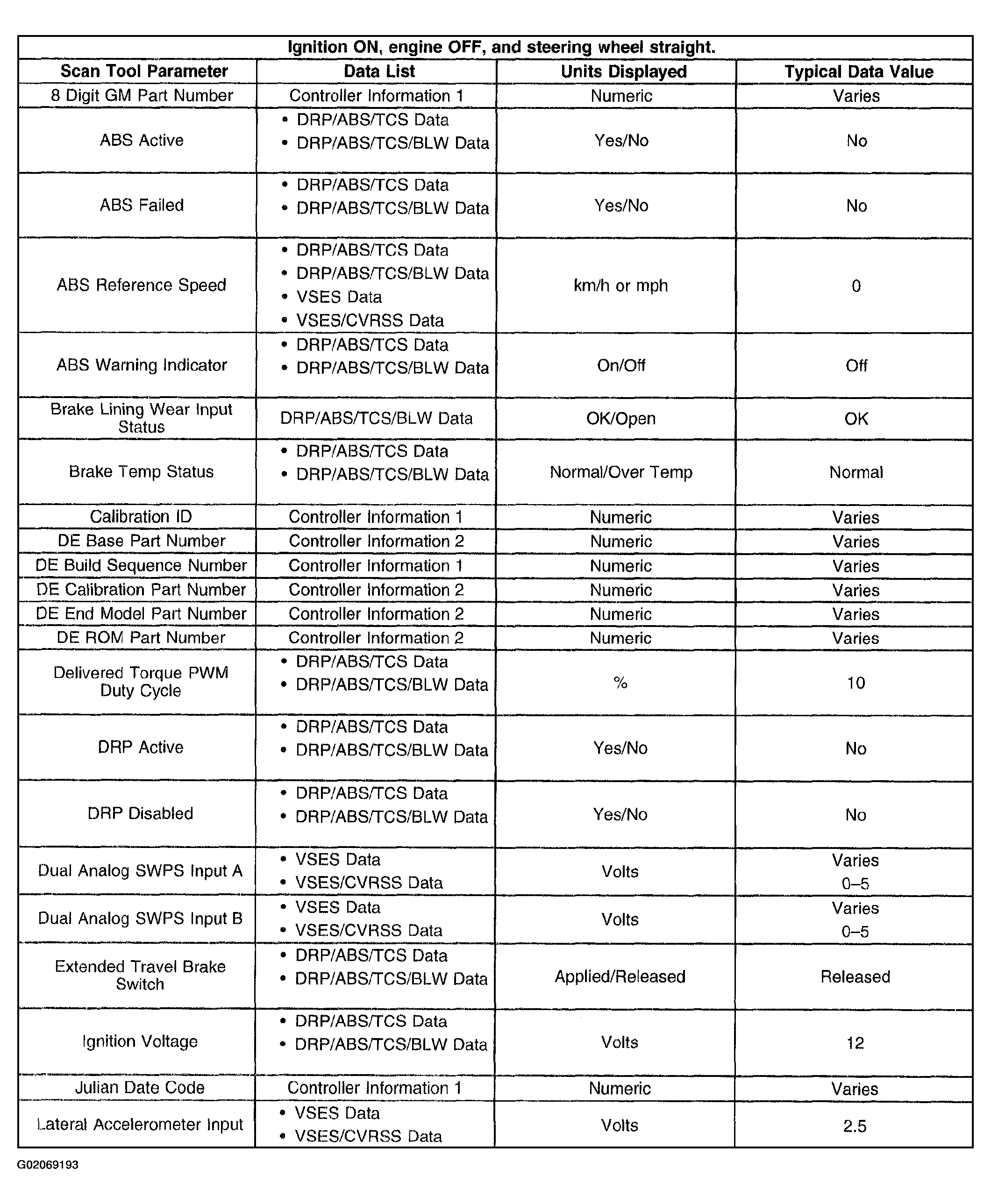

Fig 1: Scan Tool Data List - Electronic Brake Control Module (EBCM) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Scan Tool Data List - Electronic Brake Control Module (EBCM) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Scan Tool Data List - Electronic Brake Control Module (EBCM) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
