Electronic Brake Control Module (EBCM)

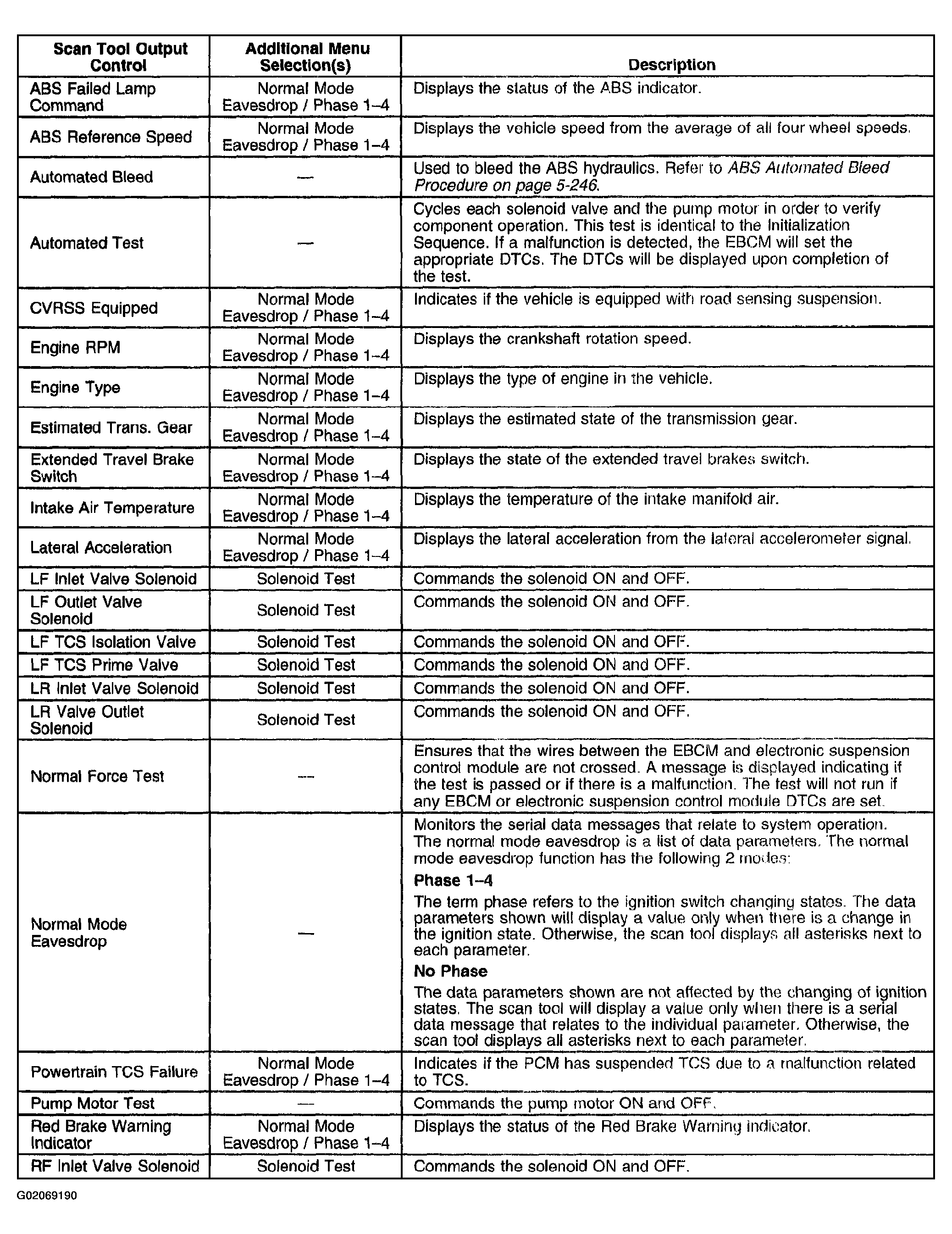

Fig 1: Scan Tool Output Controls - Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

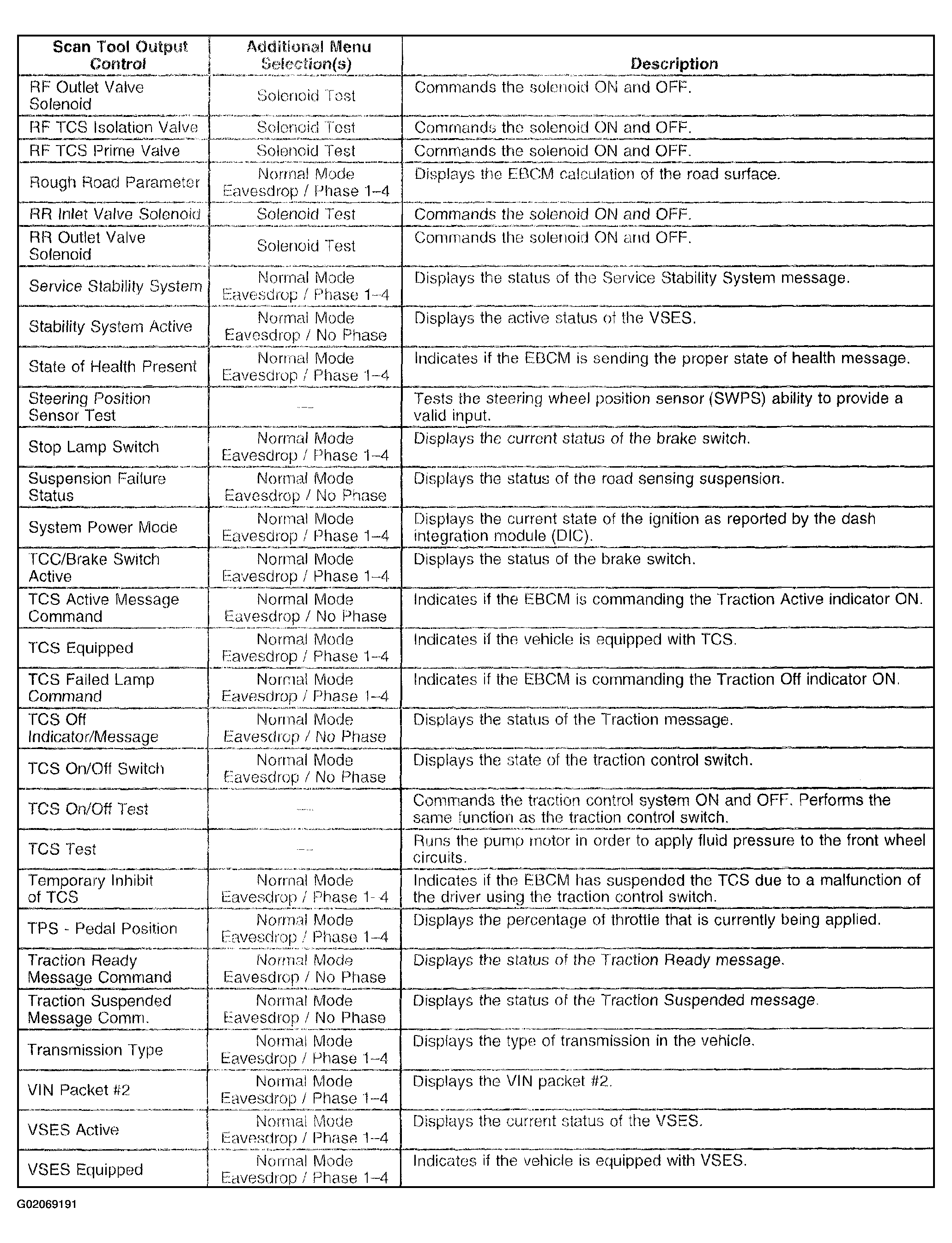

Fig 2: Scan Tool Output Controls - Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
