Engine Electrical Connector End Views: Generator

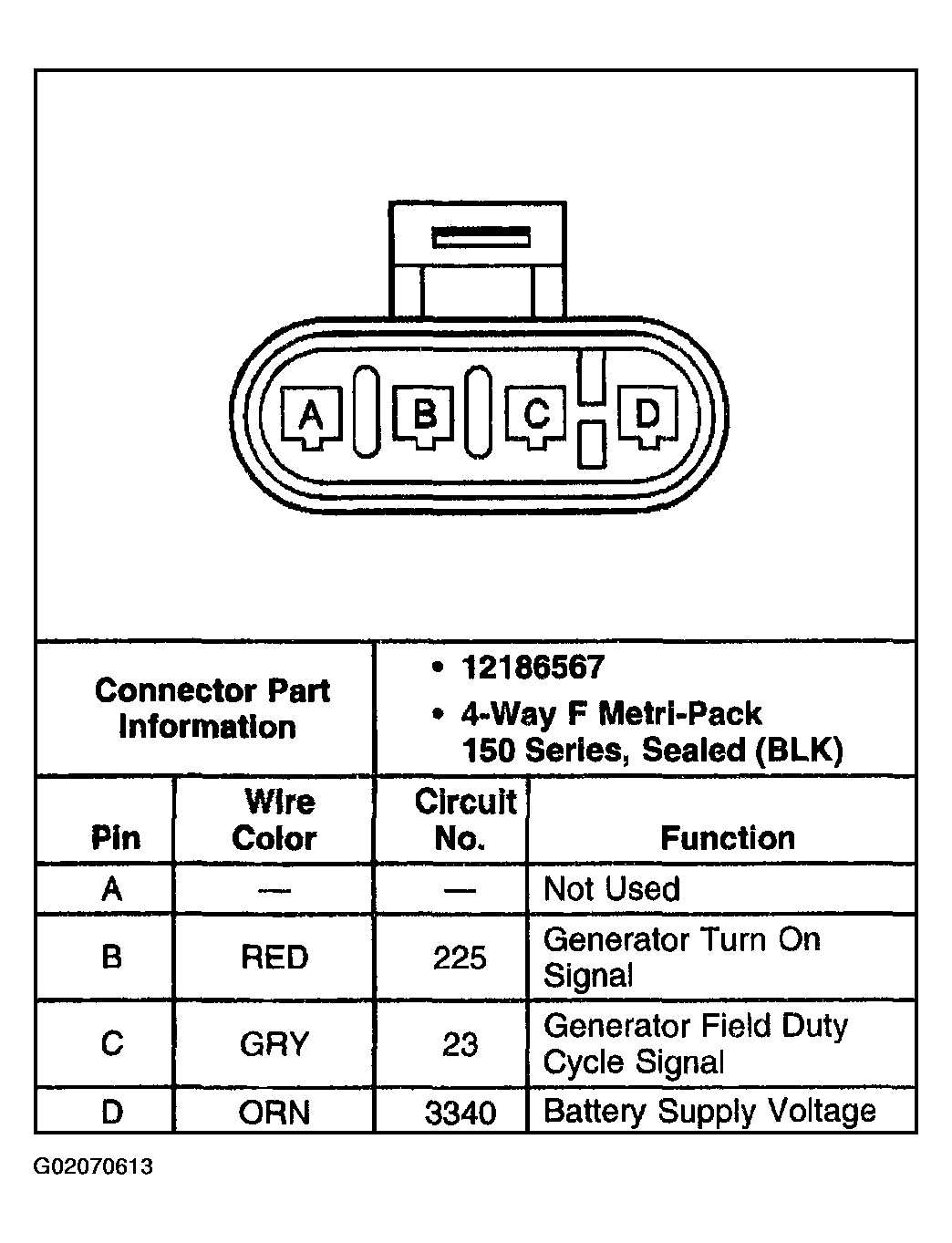

Fig 1: Identifying Generator Connector Terminal Connector End View
G02070613Courtesy of GENERAL MOTORS CORP.
