Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .
  2. Disconnect the battery positive cable (1) from the battery.

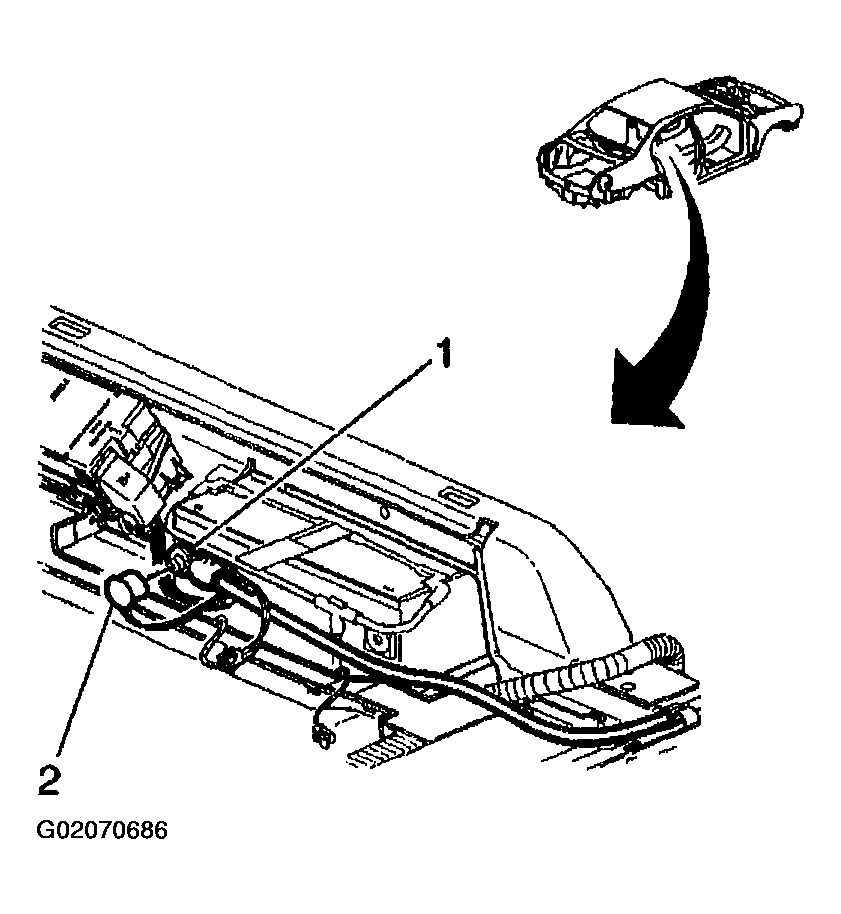

    Fig 1: Disconnecting Battery Positive Cable From Battery
    G02070686Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.

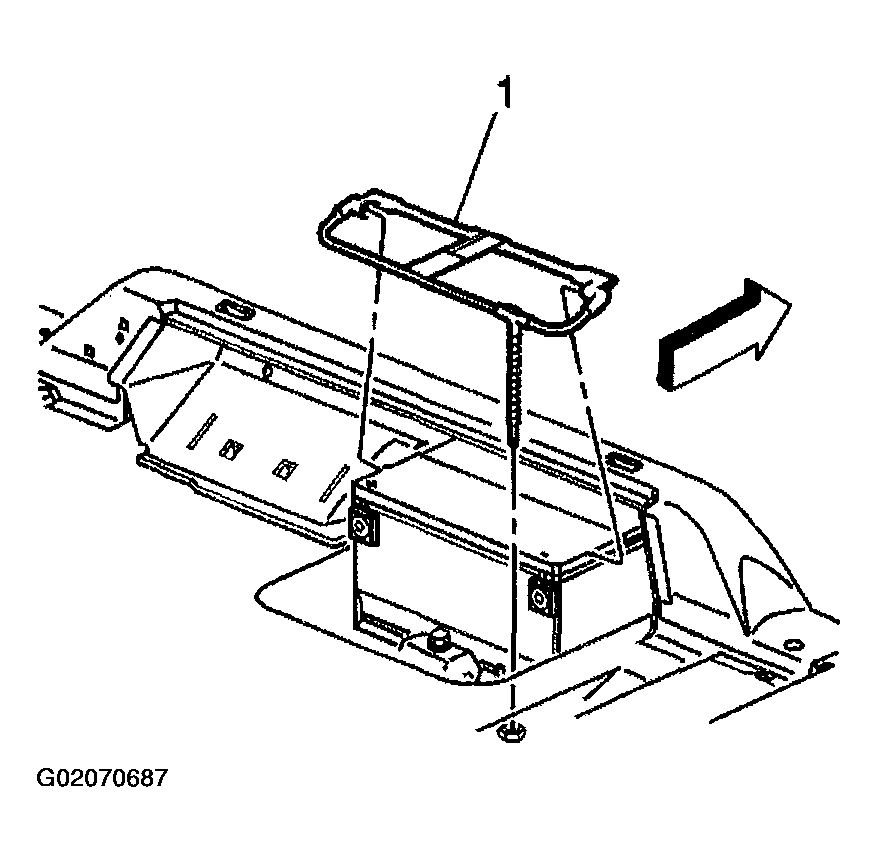

    Fig 2: Removing Battery Vent Tube From Battery
    G02070687Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.

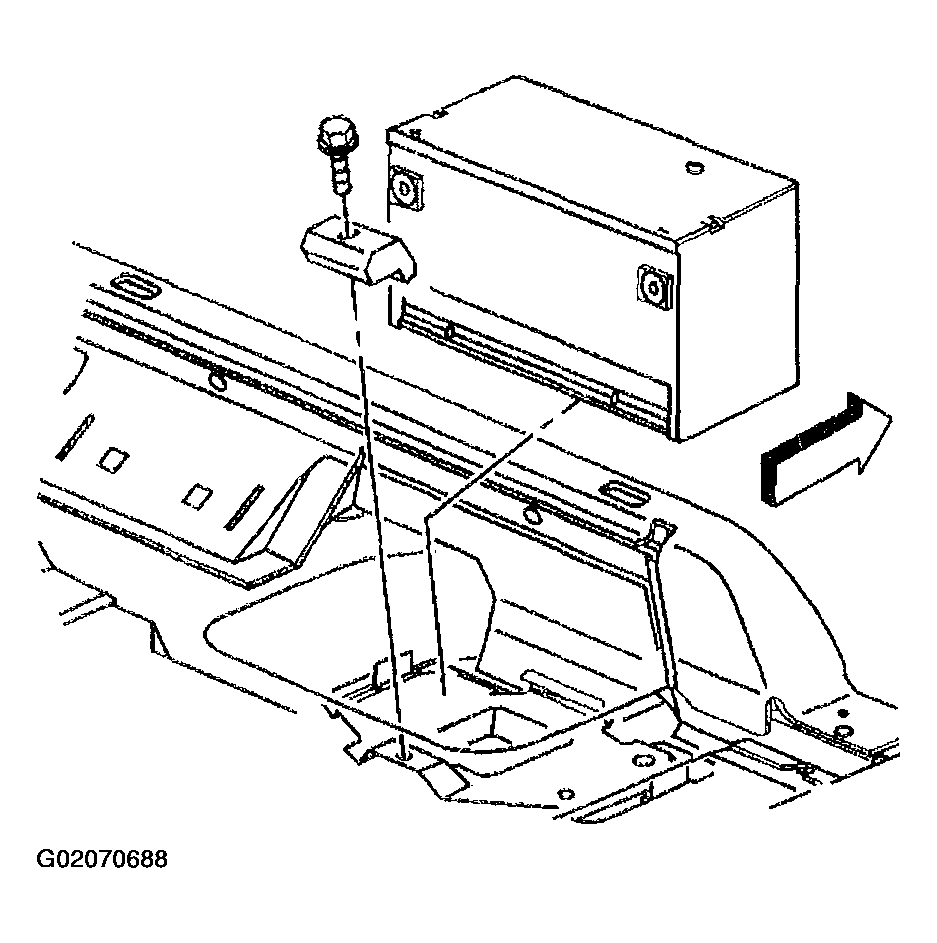

    Fig 3: Removing Battery Retainer Bolt, Battery Retainer & Battery
    G02070688Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery.
