Engine Block Assembly

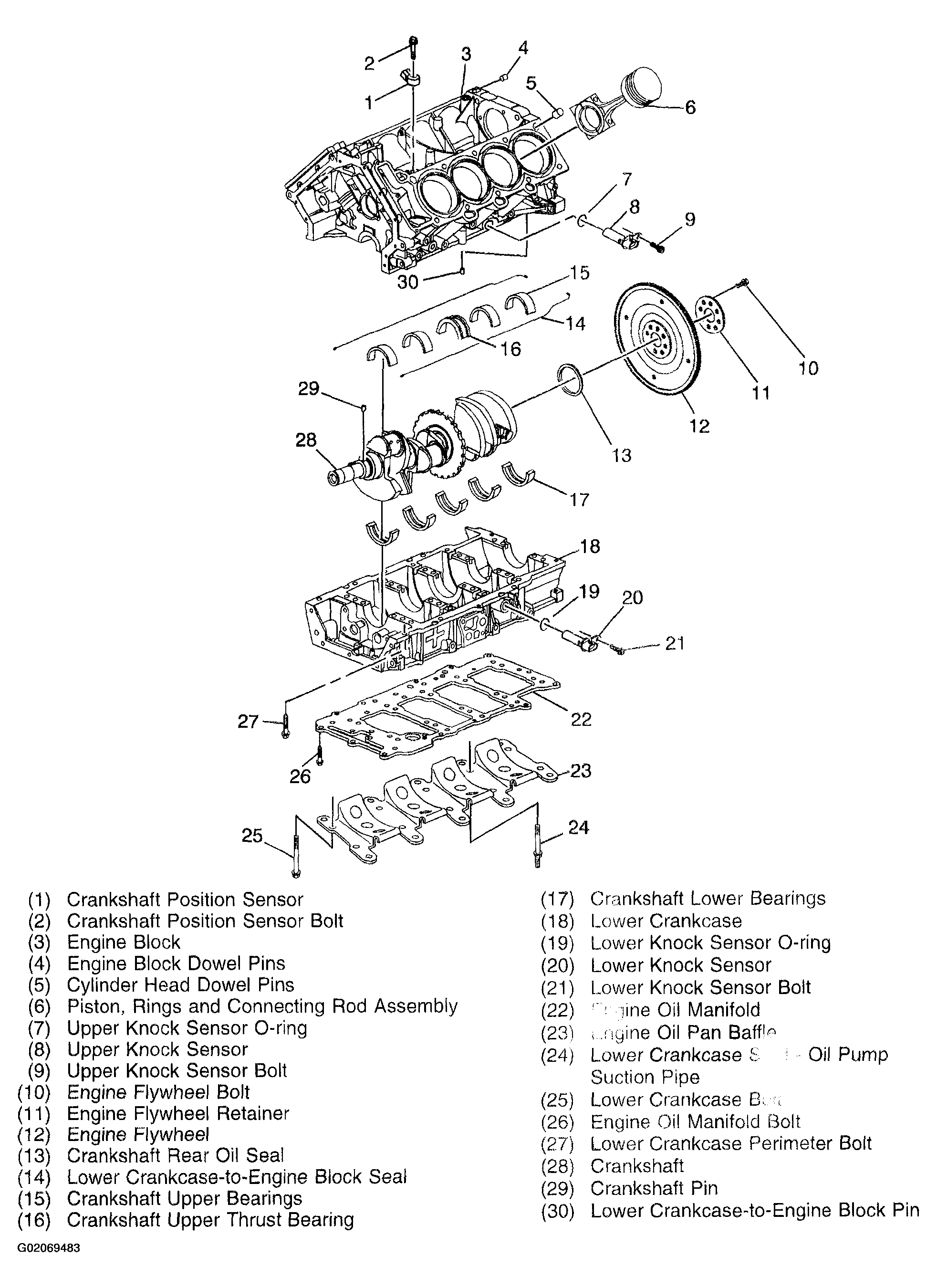

Fig 1: Engine Block Assembly Disassembled View
G02069483Courtesy of GENERAL MOTORS CORP.
