Engine Verification

The engine verification label is placed in two locations on the right side of the engine.

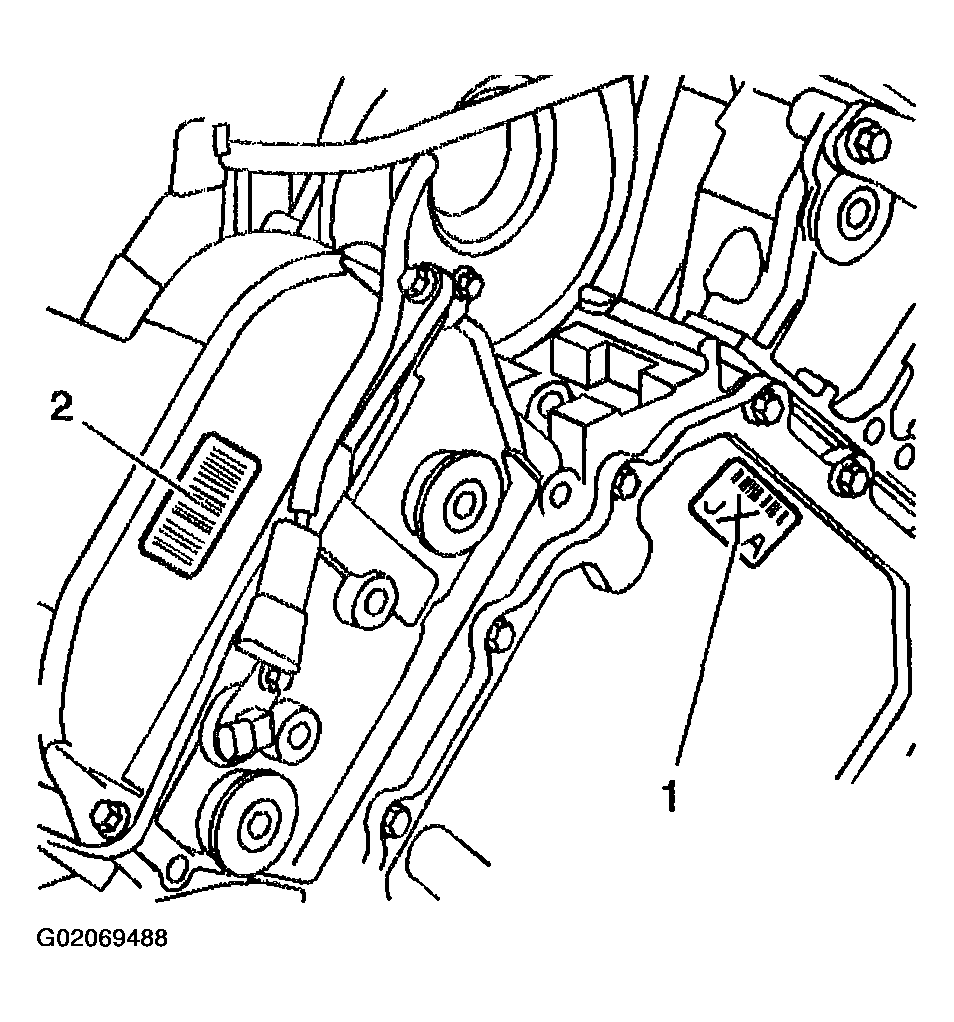

The engine front cover has an engine verification

label (1) and the front of the right camshaft cover has a traceability label (2).

Fig 1: Locating Engine Verification Number

Courtesy of GENERAL MOTORS CORP.

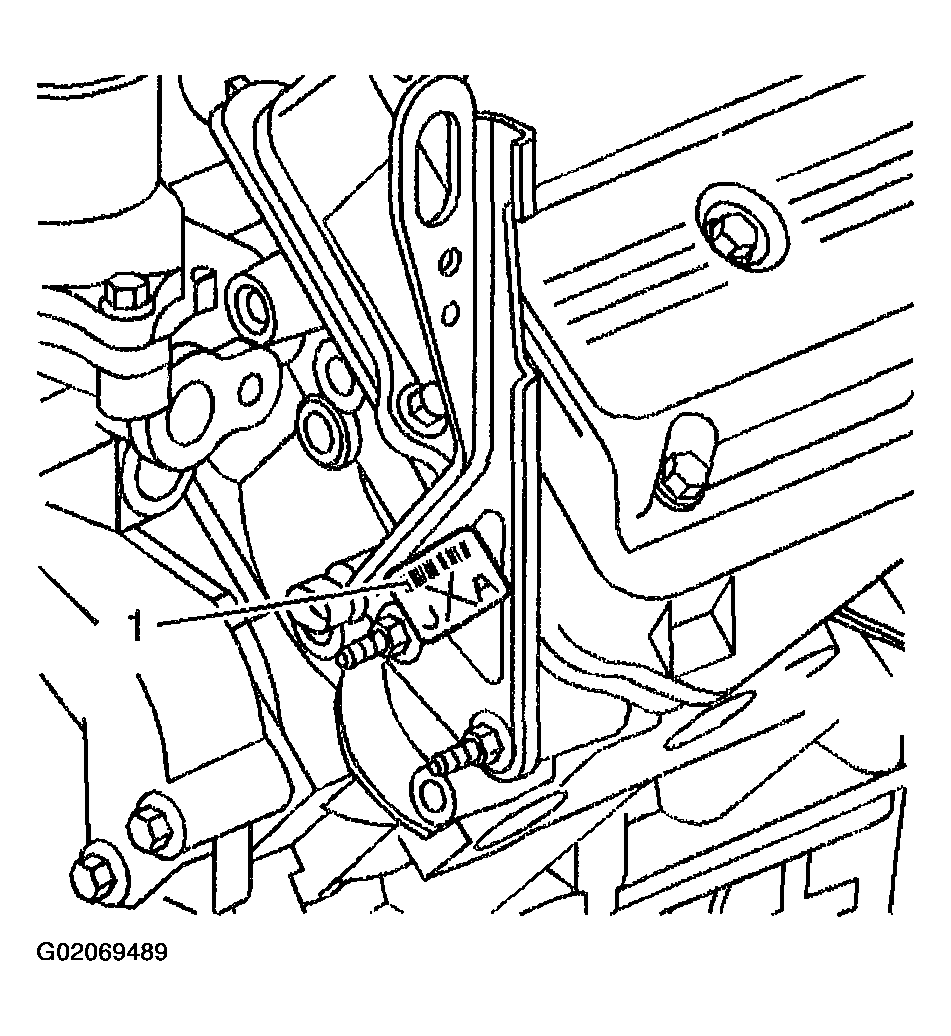

The rear of the right camshaft cover has an engine verification label (1).

Fig 2: Locating Engine Verification Number

Courtesy of GENERAL MOTORS CORP.
