Ignition Module Installation - Left

Ensure the RFI/ground spring (1) and the seal (2) are in place and inspect each for serviceability.

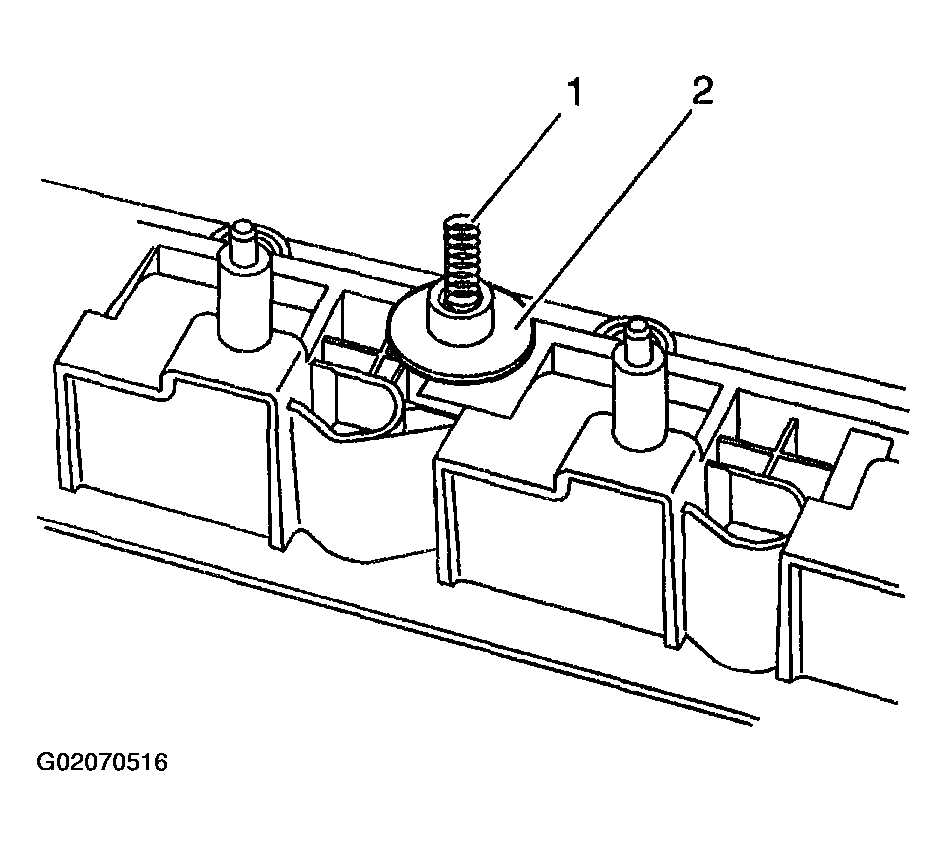

Fig 1: Locating RFI/Ground Spring & Seal
Courtesy of GENERAL MOTORS CORP.
Install the left spark plug boots onto the ignition coil assembly.

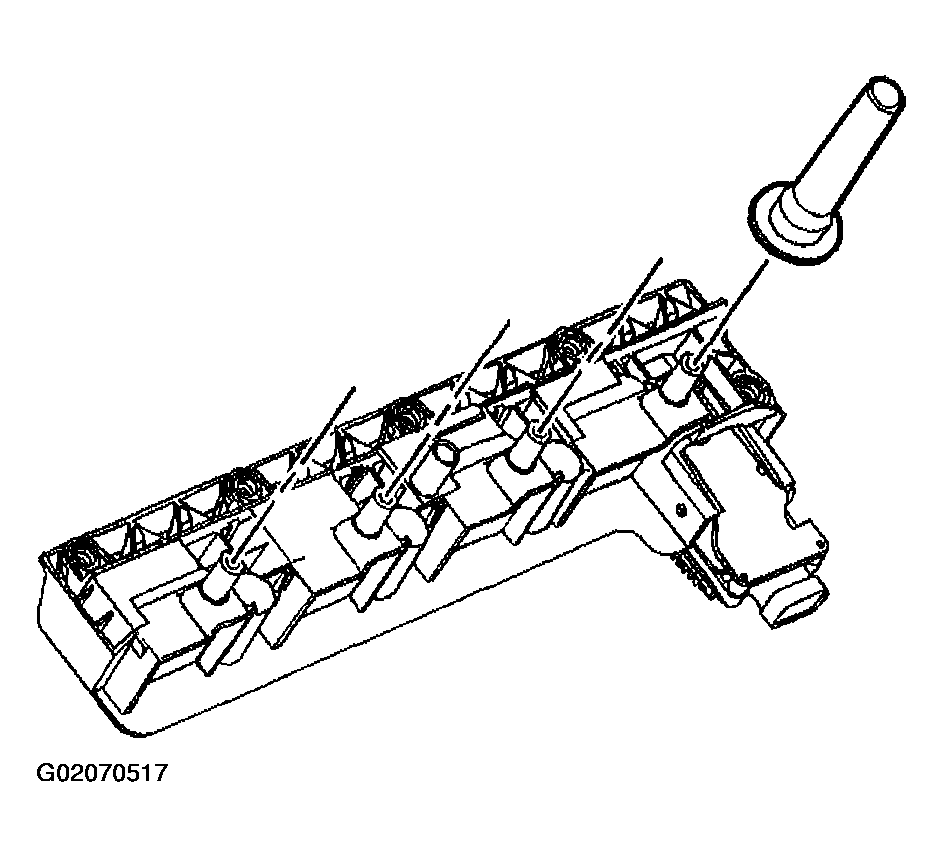

Fig 2: Installing Left Spark Plug Boots Onto Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the left spark plugs.
Tighten

Tighten the spark plugs to 15 N.m (11 lb ft)

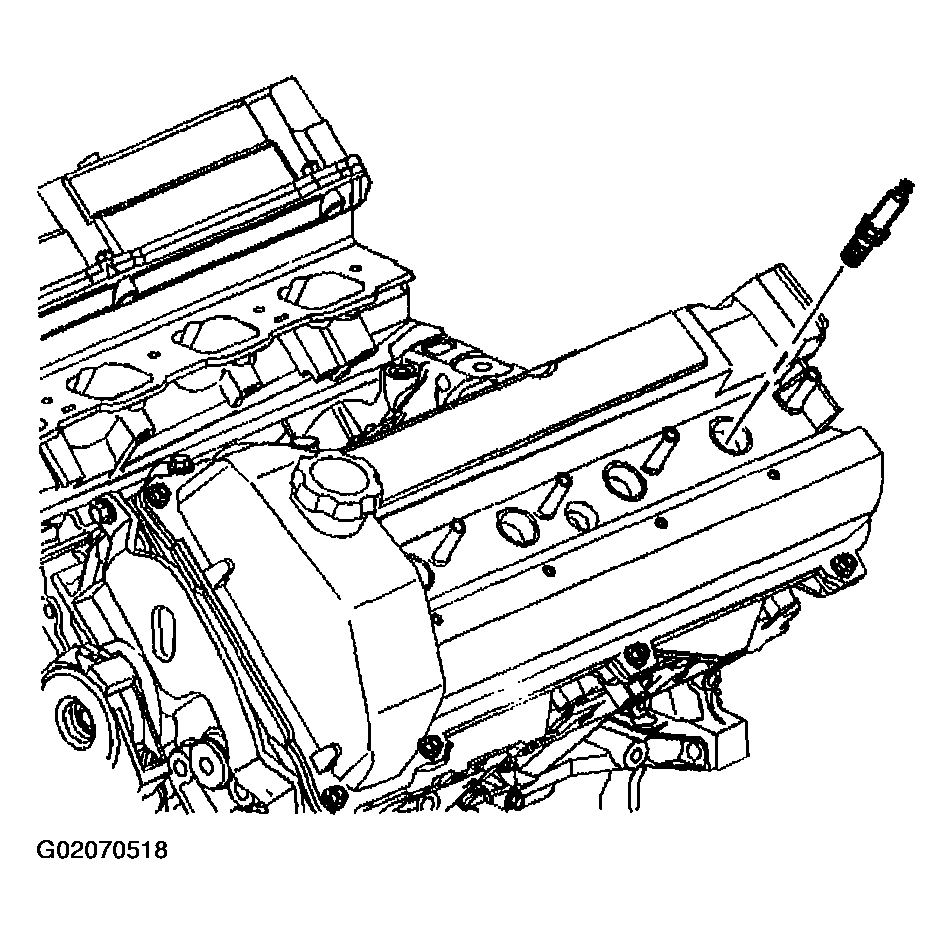

Fig 3: Installing Spark Plugs
Courtesy of GENERAL MOTORS CORP.
Position the ignition coil assembly on the left camshaft cover.

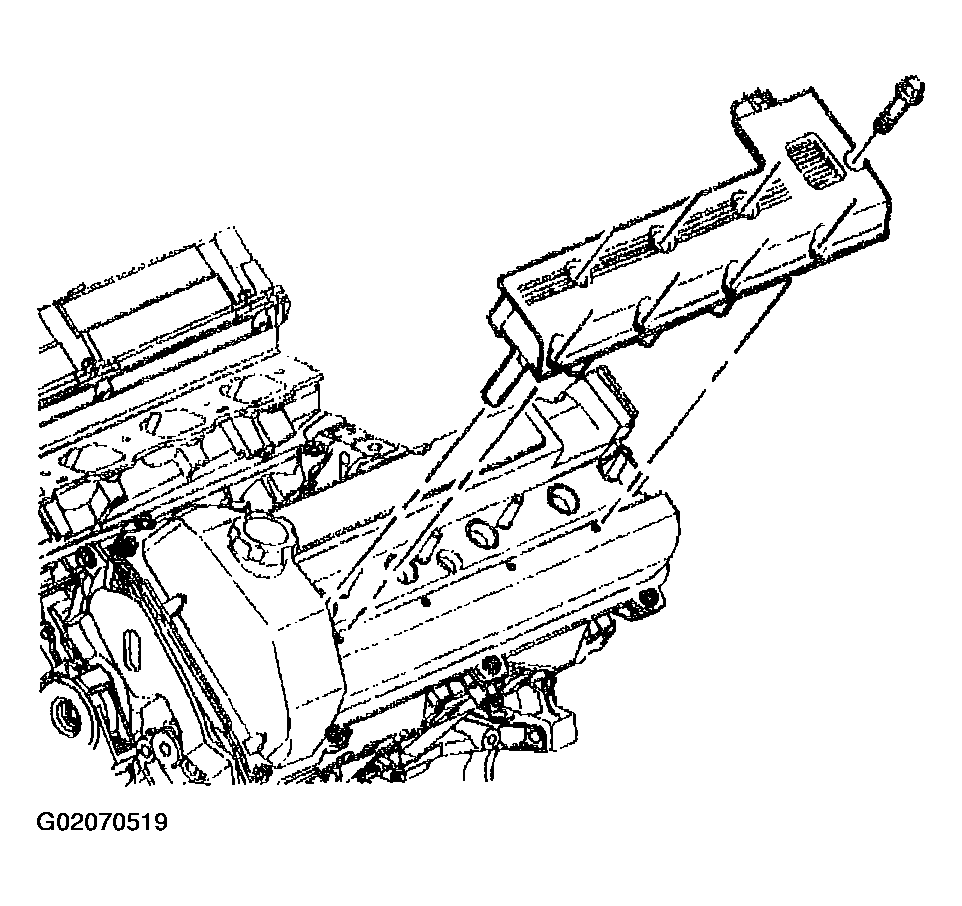

Fig 4: Aligning Ignition Coil Assembly On Left Camshaft Cover
Courtesy of GENERAL MOTORS CORP.

Important: DO NOT damage the ignition coil perimeter seal.
Install the ignition coil assembly bolts in sequence.
Tighten

Tighten the ignition coil assembly bolts to 9 N.m (80 lb in).

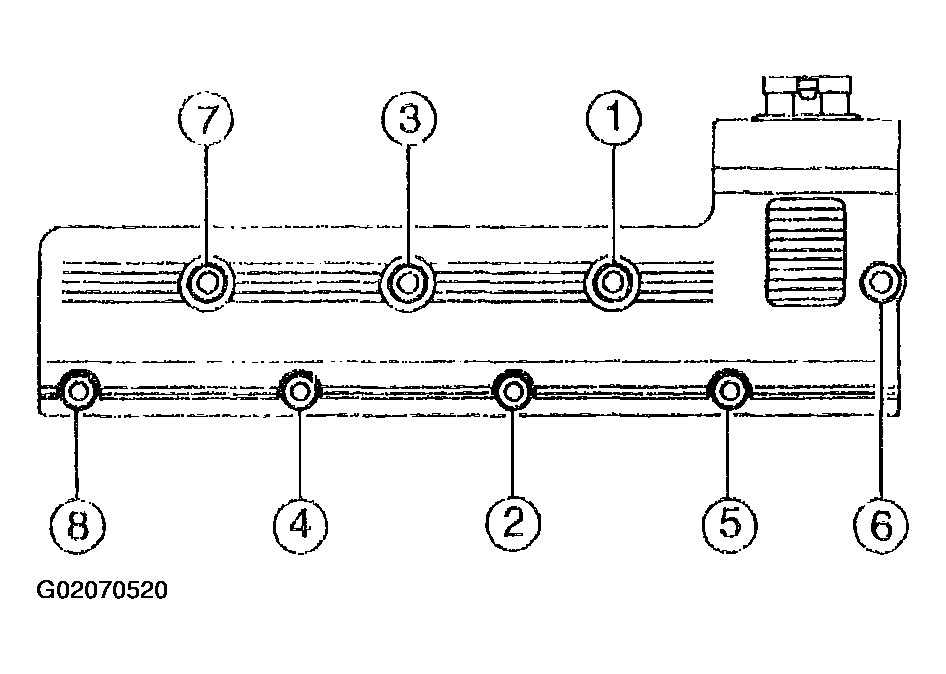

Fig 5: Tightening Sequence Of Ignition Coil Assembly Bolts
Courtesy of GENERAL MOTORS CORP.
