Engine Block Left Deck Face Thread Repair Specifications

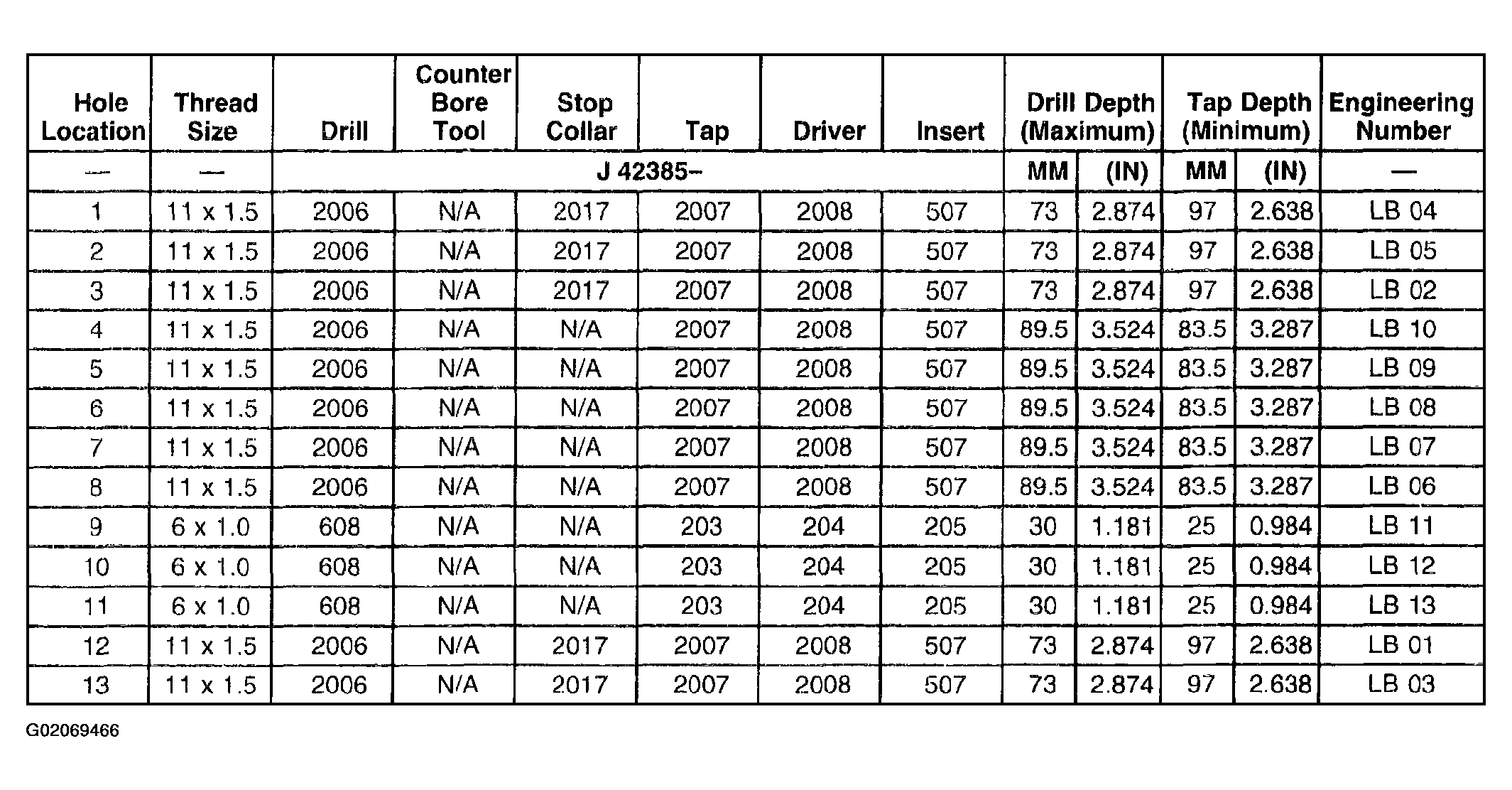

Fig 1: Engine Block Left Deck Face Thread Repair Specifications
G02069466Courtesy of GENERAL MOTORS CORP.
