Engine Block Left Side Thread Repair Specifications

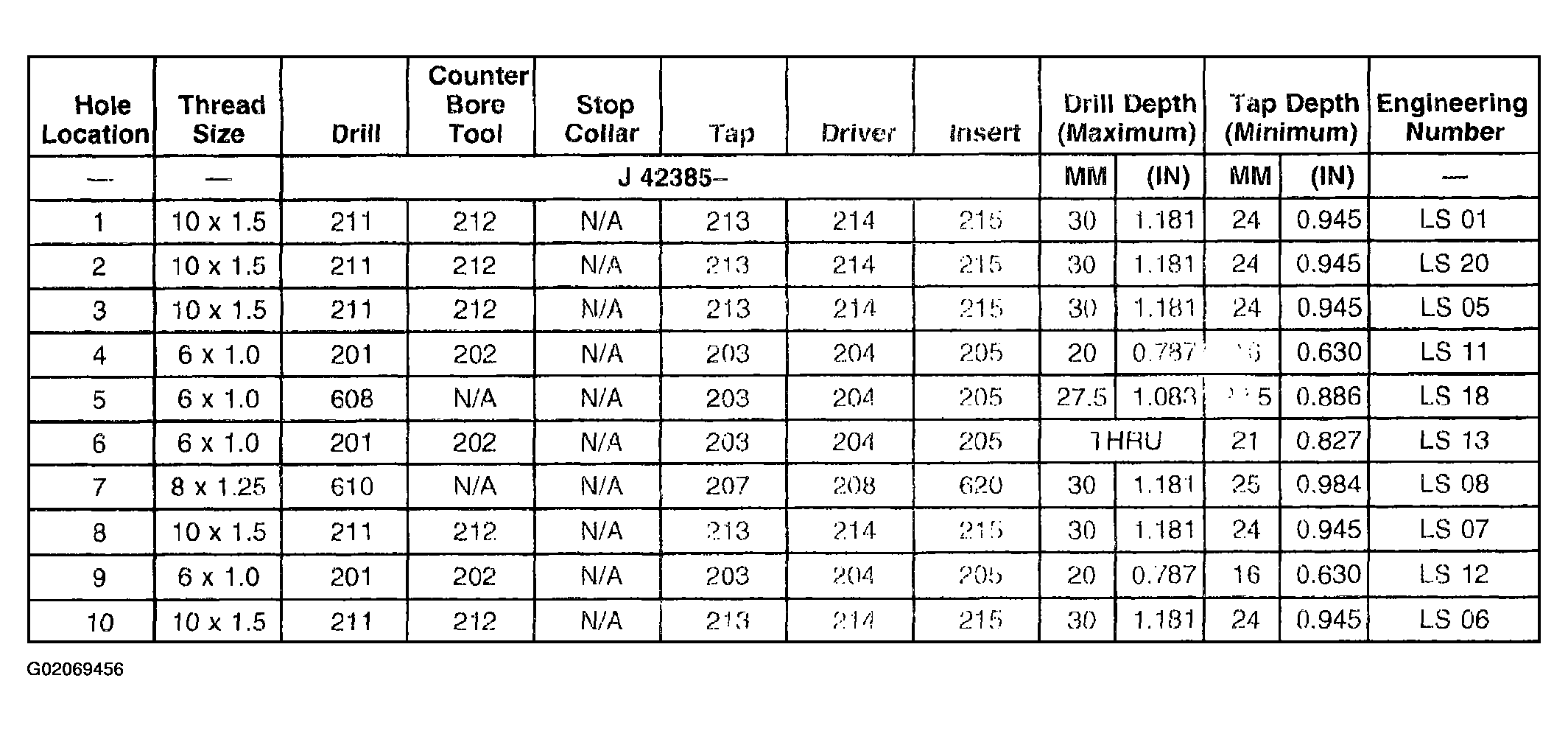

Fig 1: Engine Block Left Side Thread Repair Specifications (1 Of 2)
G02069456Courtesy of GENERAL MOTORS CORP.

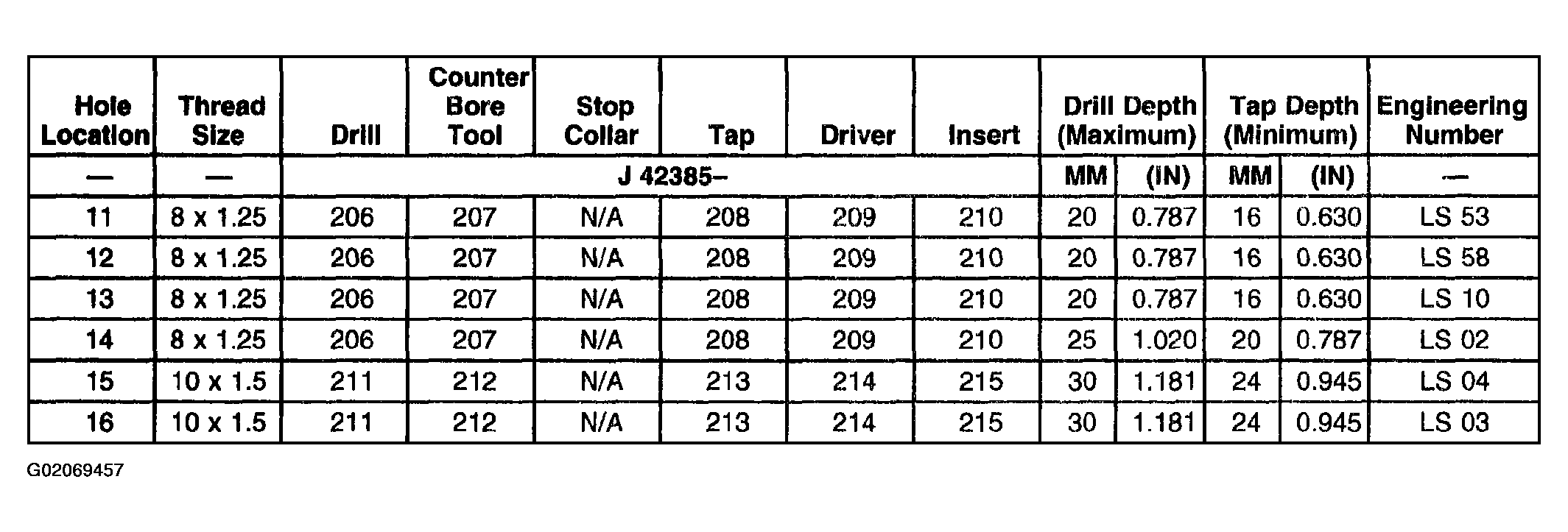

Fig 2: Engine Block Left Side Thread Repair Specifications (2 Of 2)
G02069457Courtesy of GENERAL MOTORS CORP.
