Engine Block Right Deck Face Thread Repair Specifications

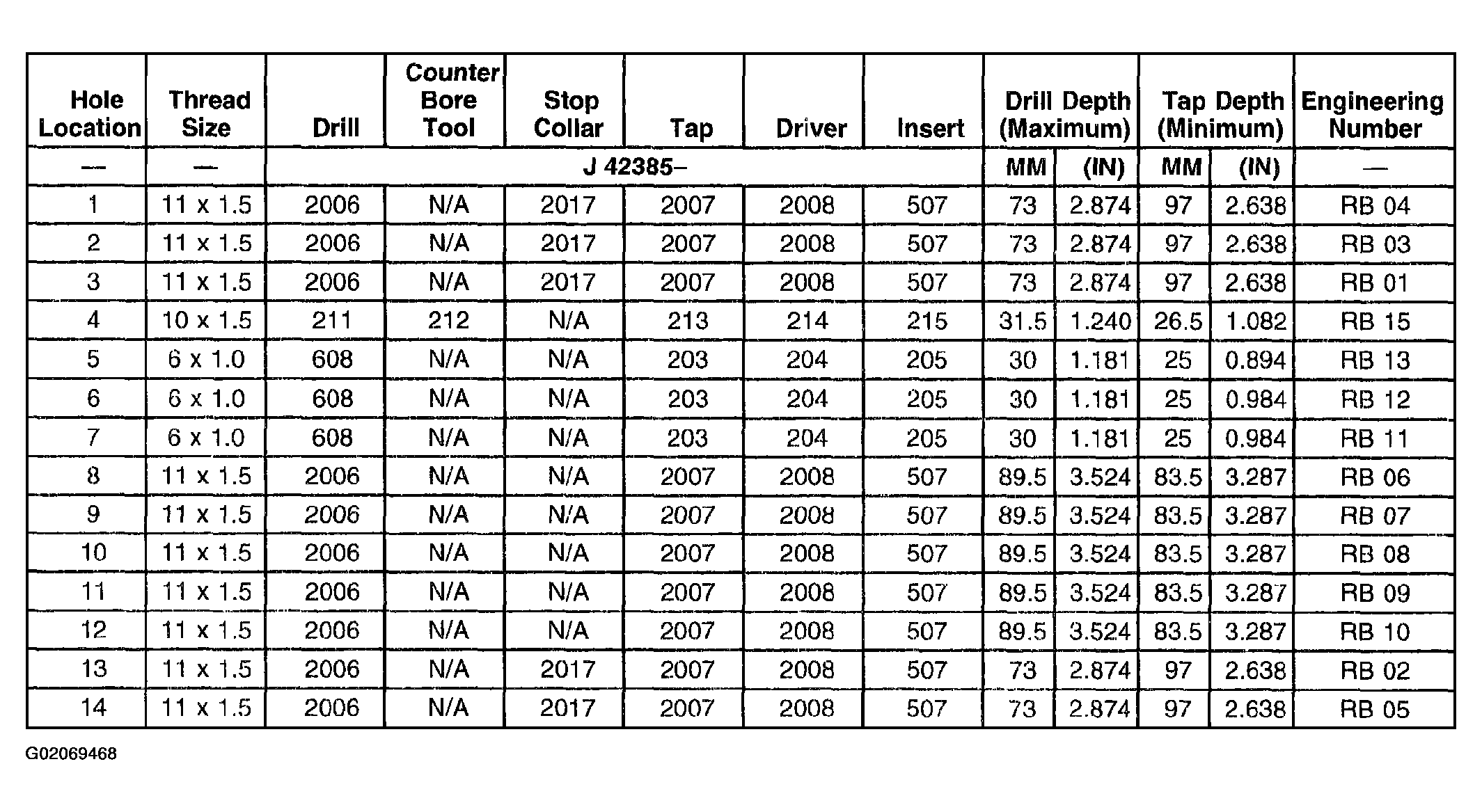

Fig 1: Engine Block Right Deck Face Thread Repair Specifications
G02069468Courtesy of GENERAL MOTORS CORP.
