Engine Block Right Side Thread Repair Specifications

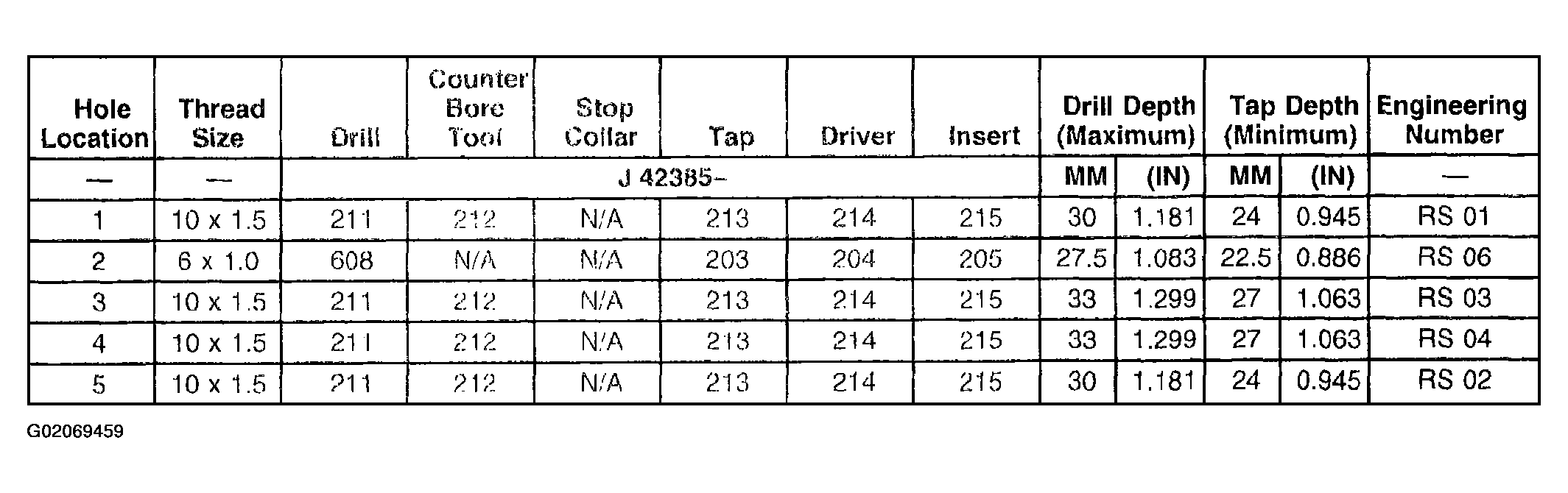

Fig 1: Engine Block Right Side Thread Repair Specifications
G02069459Courtesy of GENERAL MOTORS CORP.
