Engine Mechanical
›
Engine Mechanical - 4.6L
›
Specifications
›
Thread Repair Specifications
›
Engine Block Top Thread Repair Specifications
Engine Block Top Thread Repair Specifications

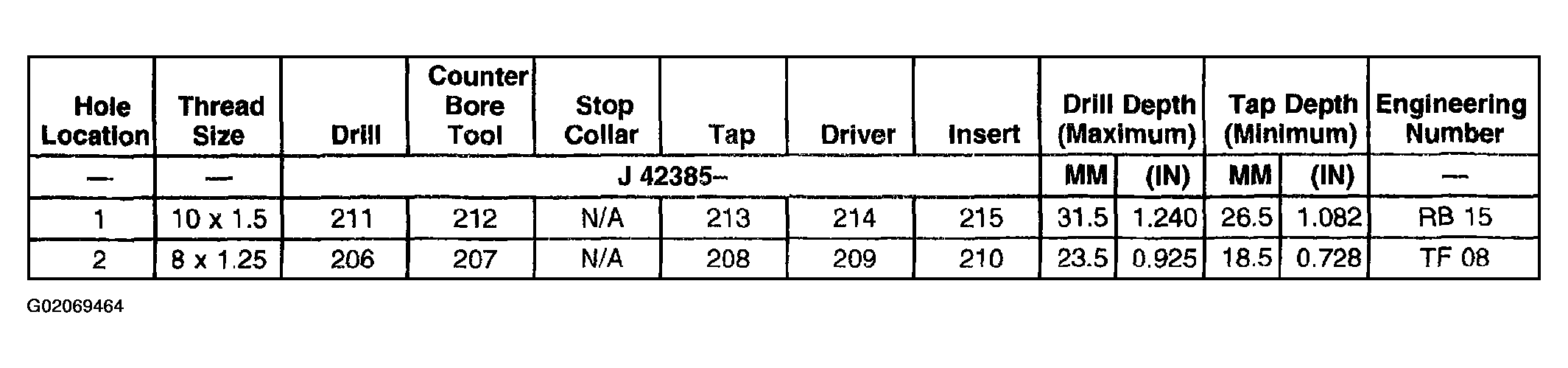

Fig 1: Engine Block Top Thread Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
