Left Cylinder Head Exhaust Face Thread Repair Specifications

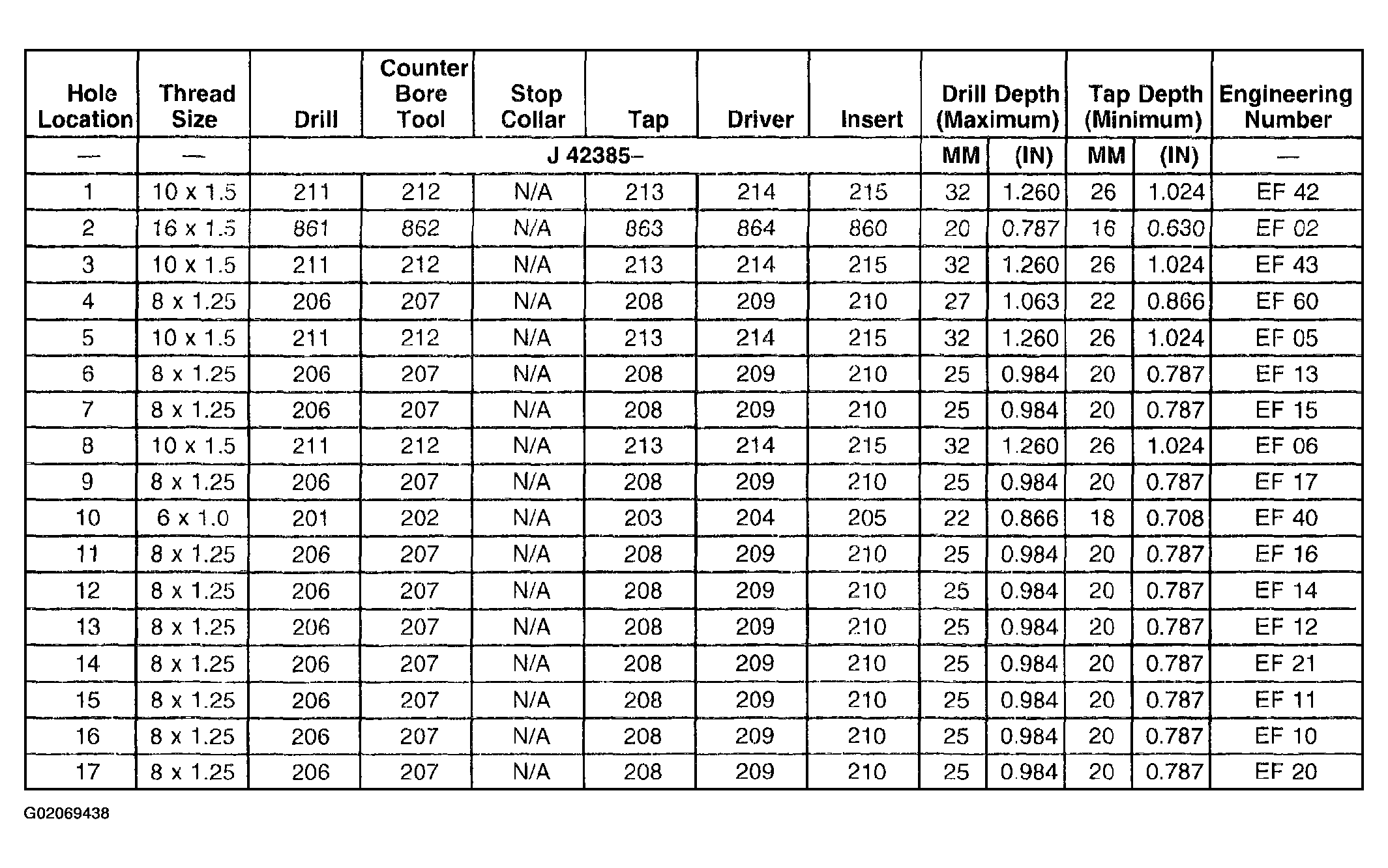

Fig 1: Left Cylinder Head Exhaust Face Thread Repair Specifications
G02069438Courtesy of GENERAL MOTORS CORP.
