Left Cylinder Head Front Face Thread Repair Specifications

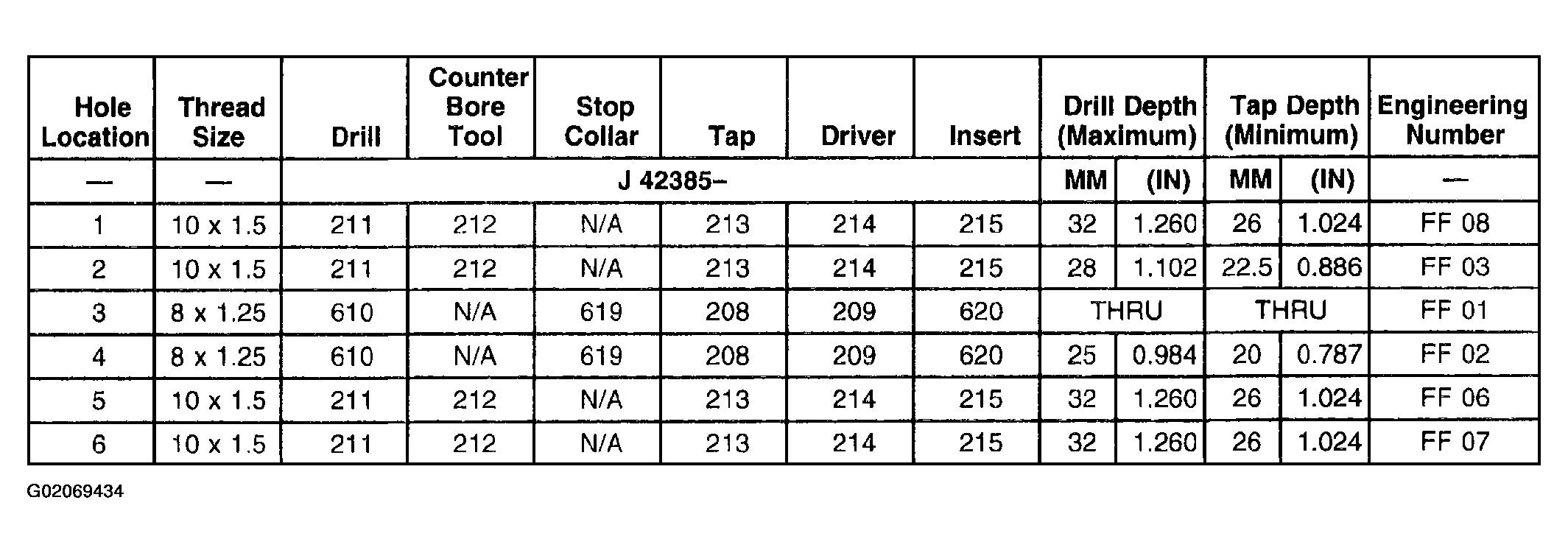

Fig 1: Left Cylinder Head Front Face Thread Repair Specifications
G02069434Courtesy of GENERAL MOTORS CORP.
