Left Cylinder Head Rear Face Thread Repair Specifications
Left Cylinder Head Rear Face Thread Repair Specifications

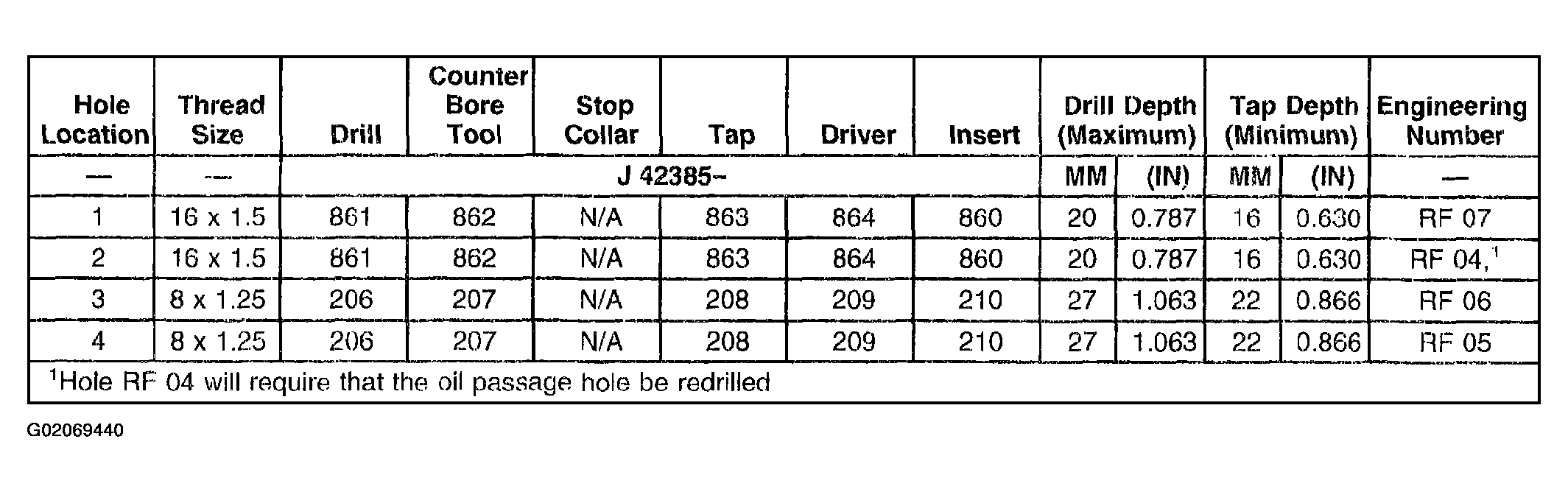

Fig 1: Left Cylinder Head Rear Face Thread Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
