Lower Crankcase Pan Face Thread Repair Specifications

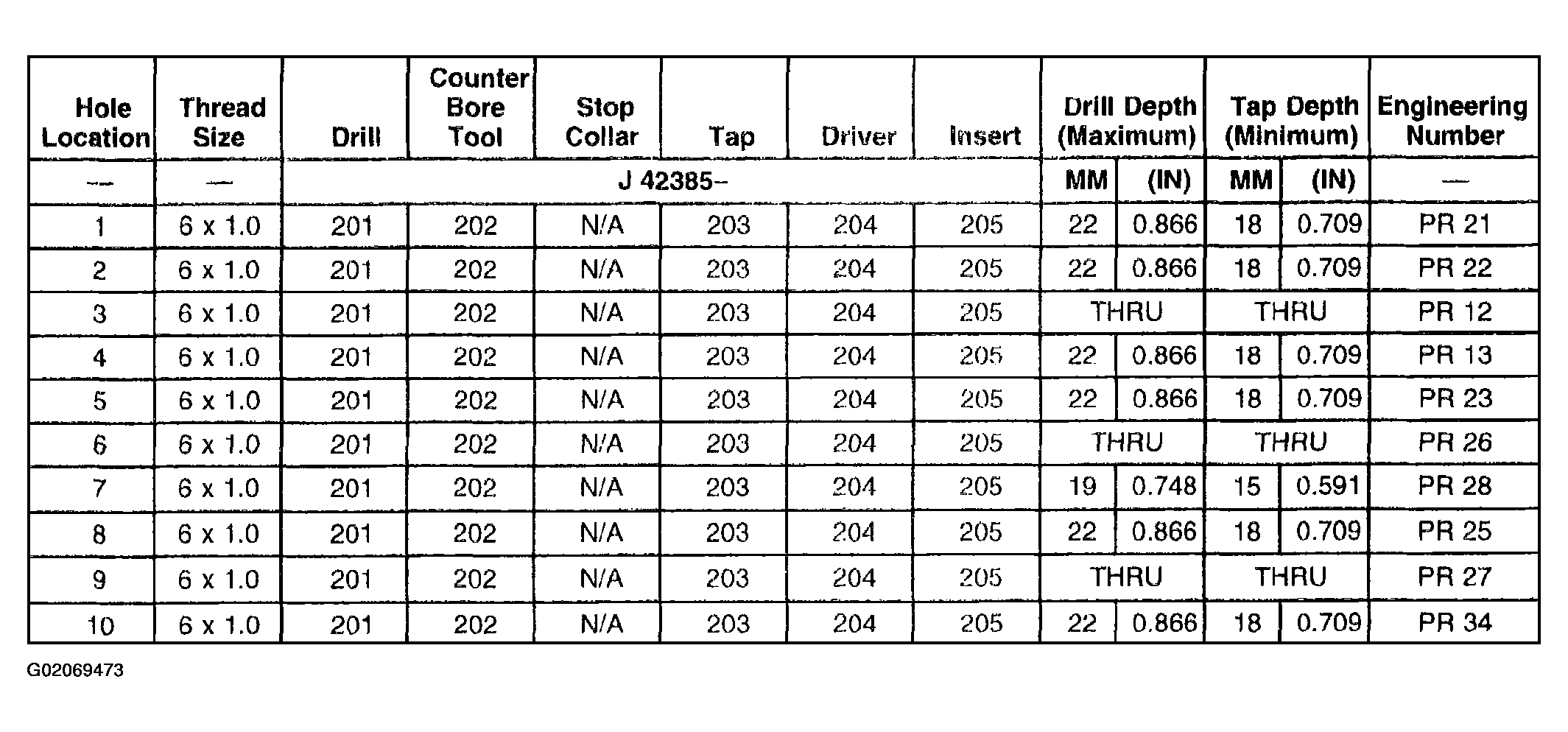

Fig 1: Lower Crankcase Pan Face Thread Repair Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

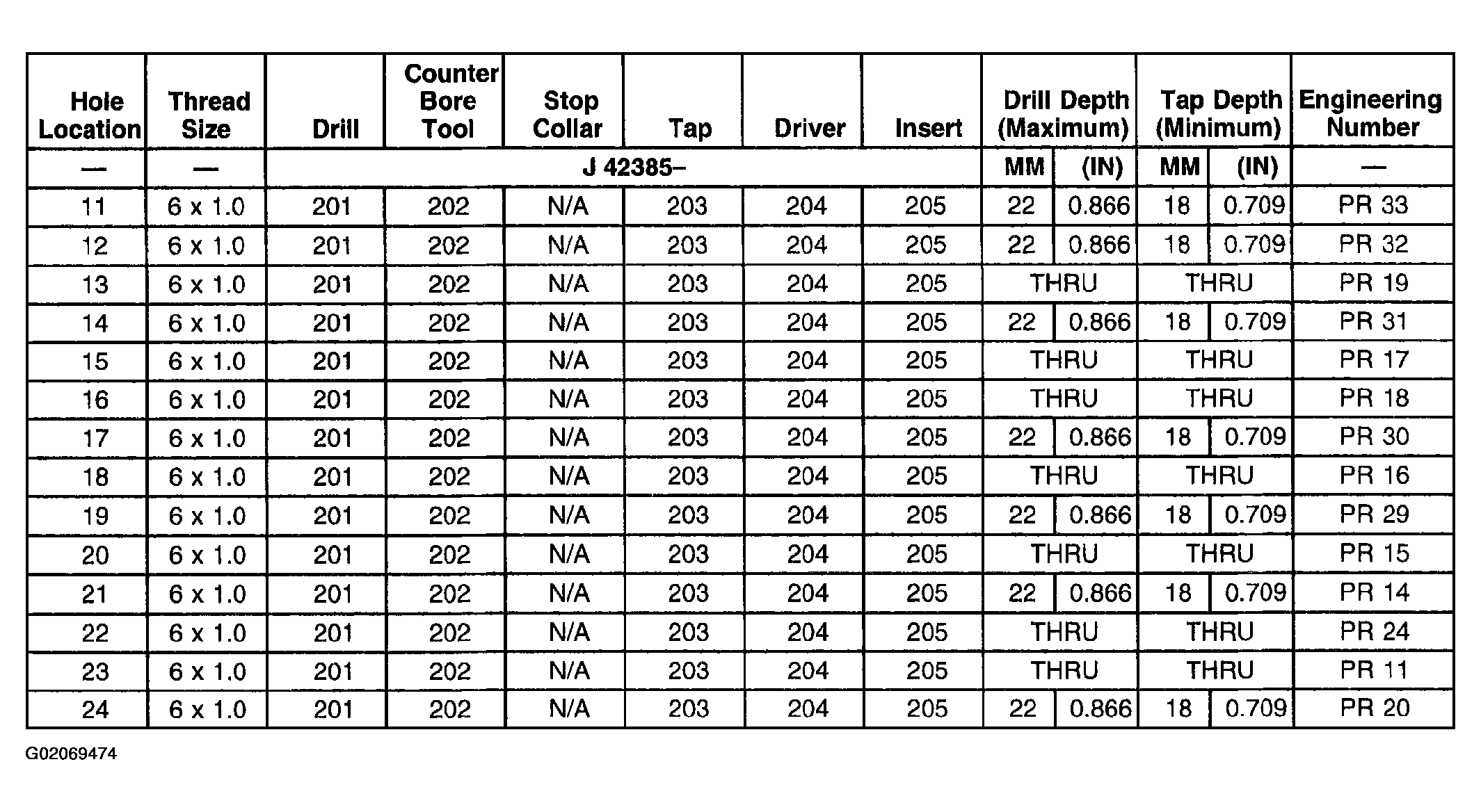

Fig 2: Lower Crankcase Pan Face Thread Repair Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
