Right Cylinder Head Intake Face Thread Repair Specifications
Right Cylinder Head Intake Face Thread Repair Specifications

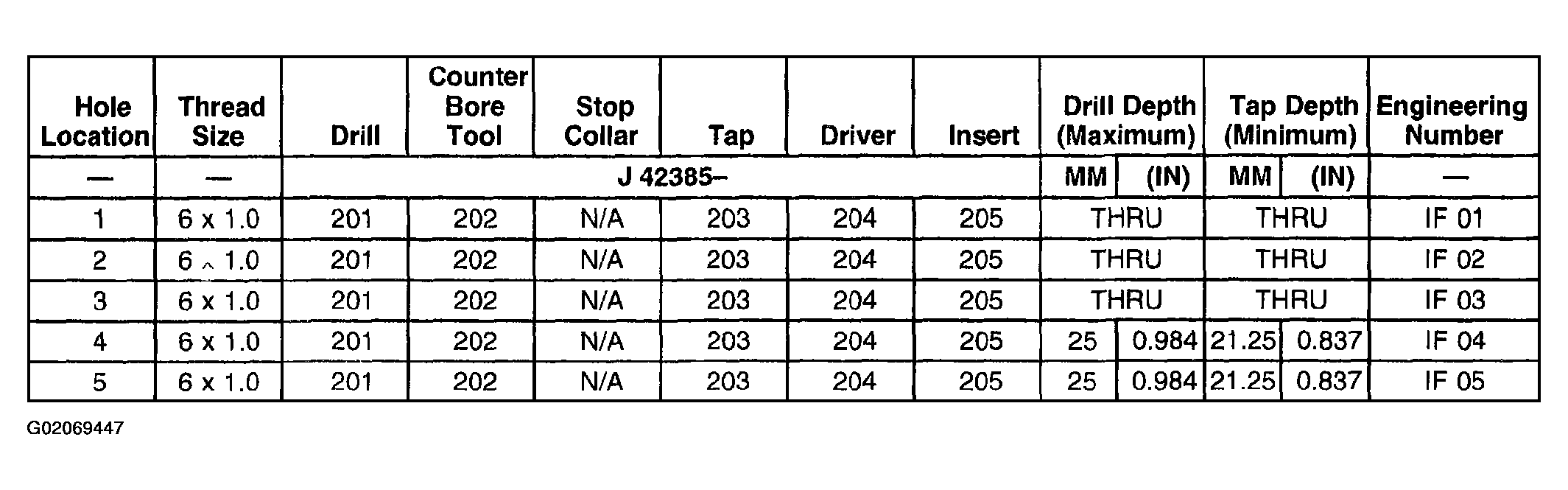

Fig 1: Right Cylinder Head Intake Face Thread Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
