Cooling System Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

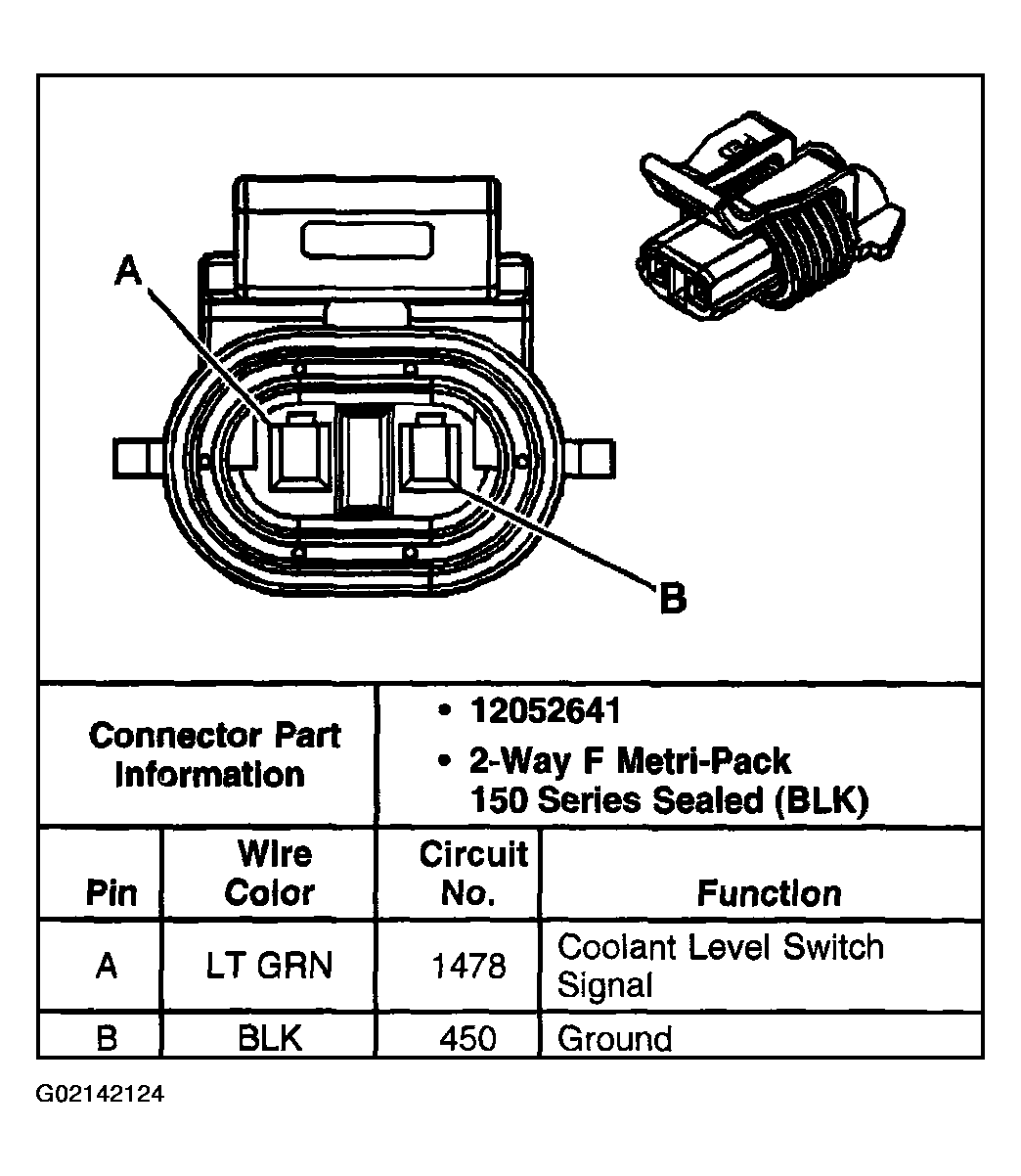

Fig 1: Identifying Coolant Level Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

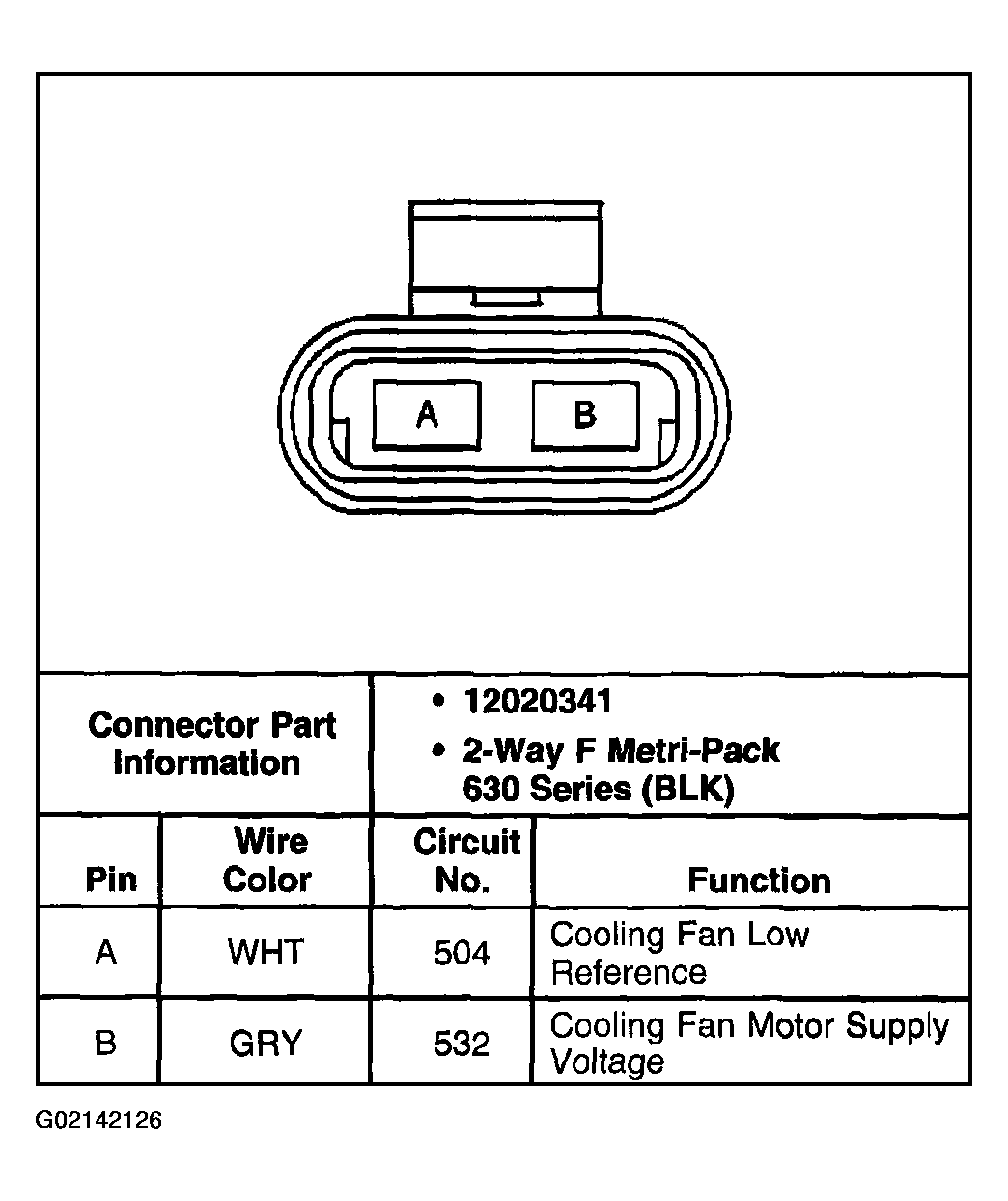

Fig 2: Identifying Cooling Fan - Left Connector Terminals

Courtesy of GENERAL MOTORS CORP.

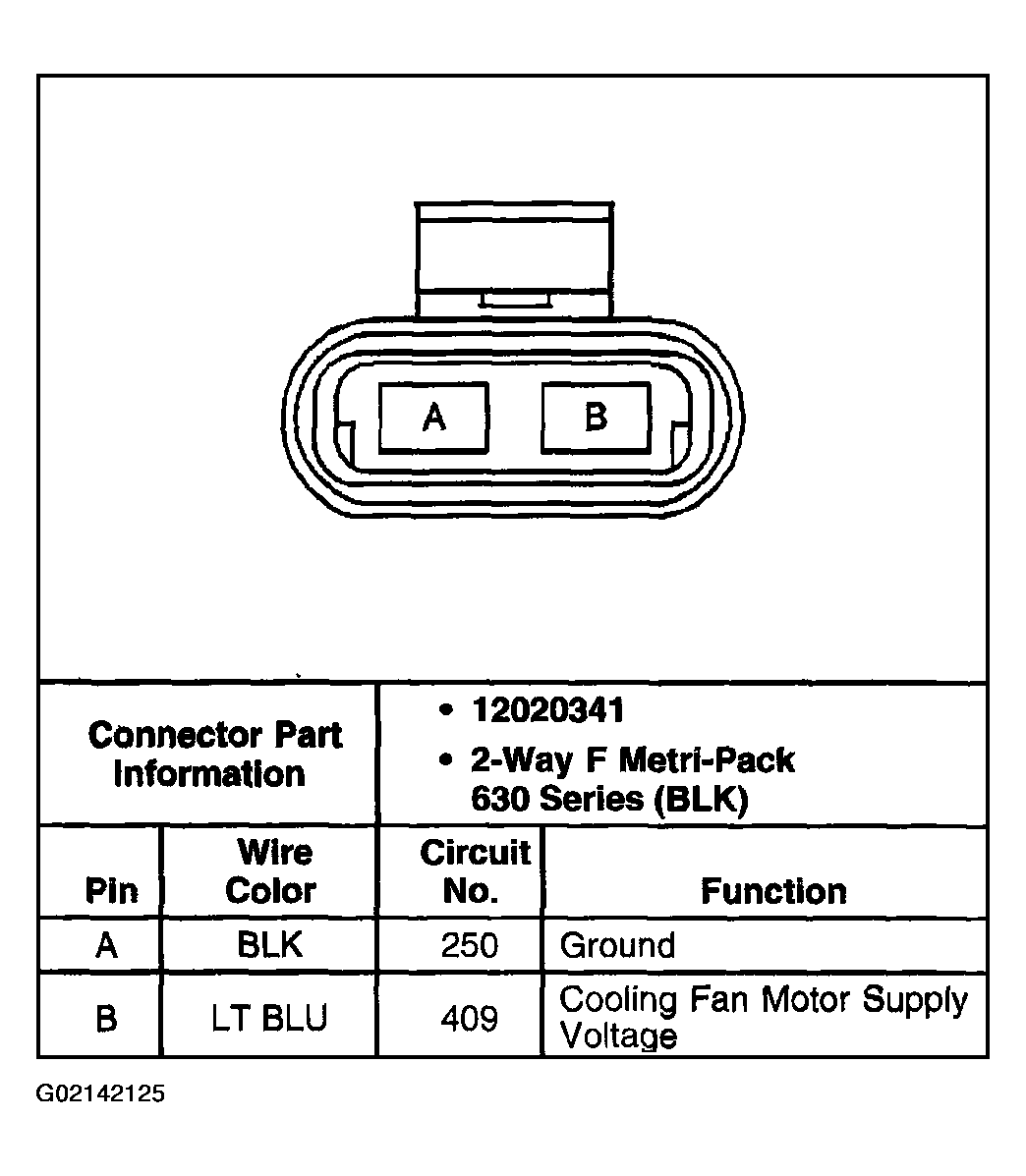

Fig 3: Identifying Cooling Fan - Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.
