Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

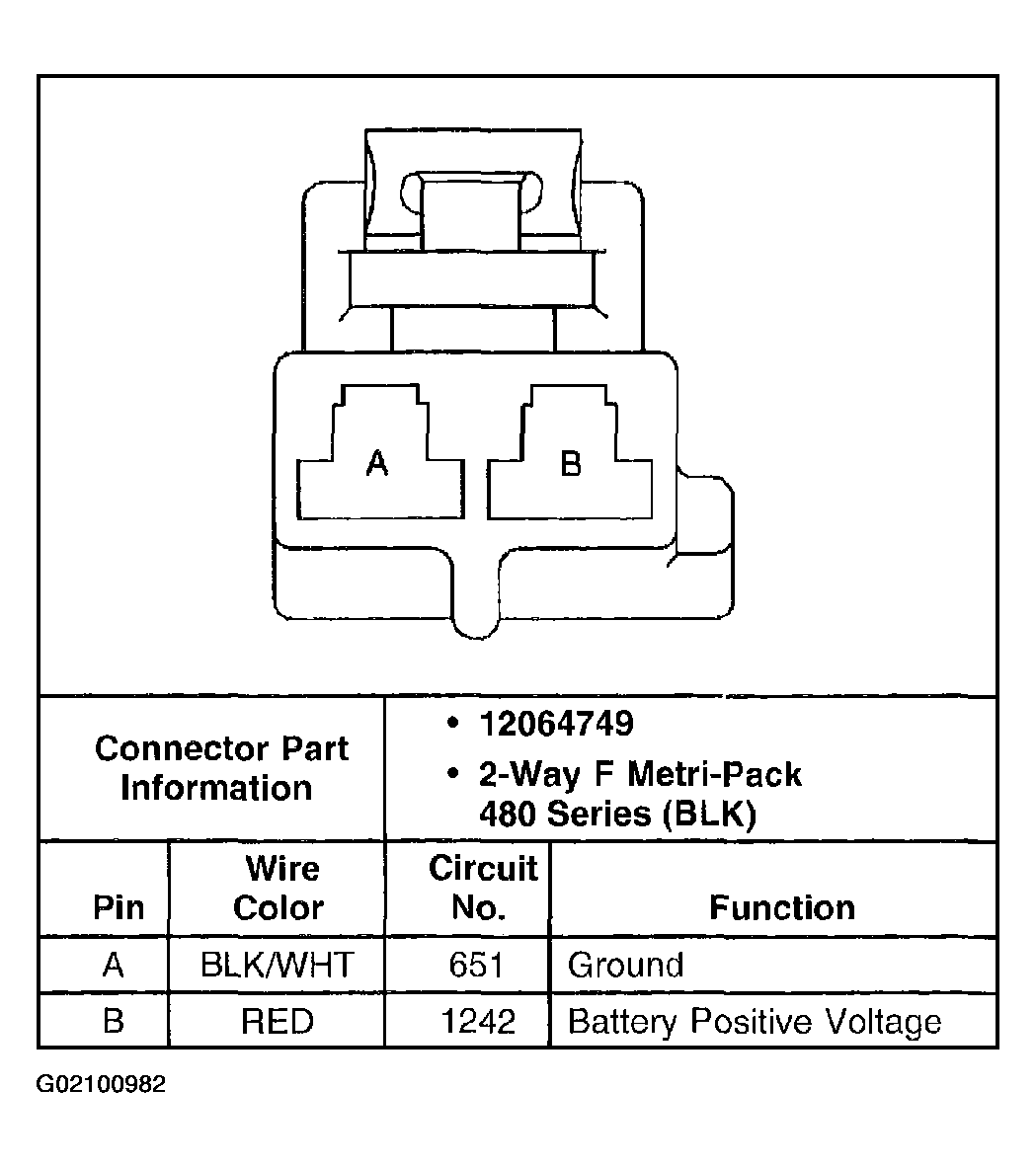

Fig 1: Identifying Audio Amplifier (w/UX8) C1 Connector

G02100982

Courtesy of GENERAL MOTORS CORP.

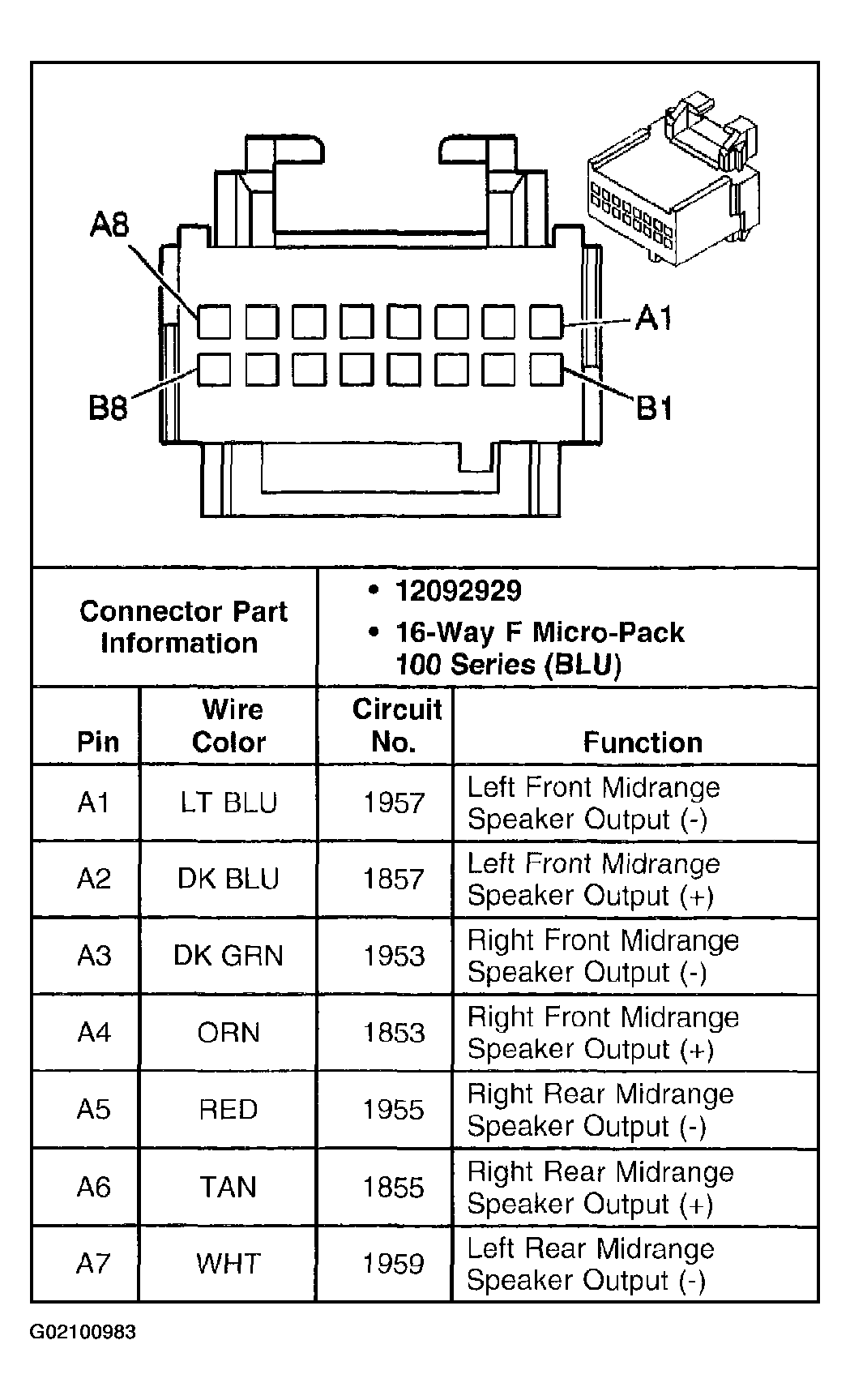

Fig 2: Identifying Audio Amplifier (w/UX8) C2 Connector (1 Of 2)

G02100983

Courtesy of GENERAL MOTORS CORP.

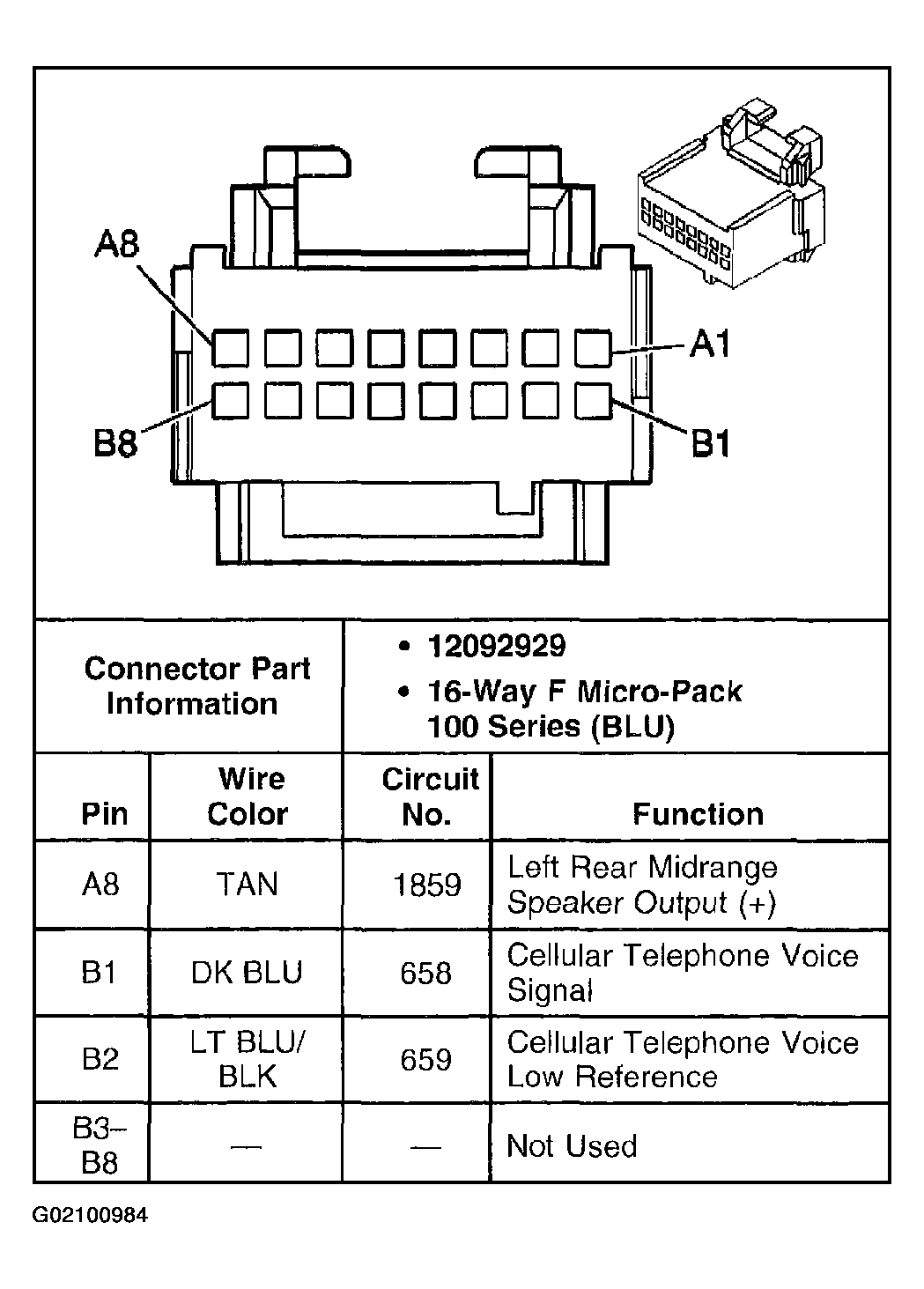

Fig 3: Identifying Audio Amplifier (w/UX8) C2 Connector (2 Of 2)

G02100984

Courtesy of GENERAL MOTORS CORP.

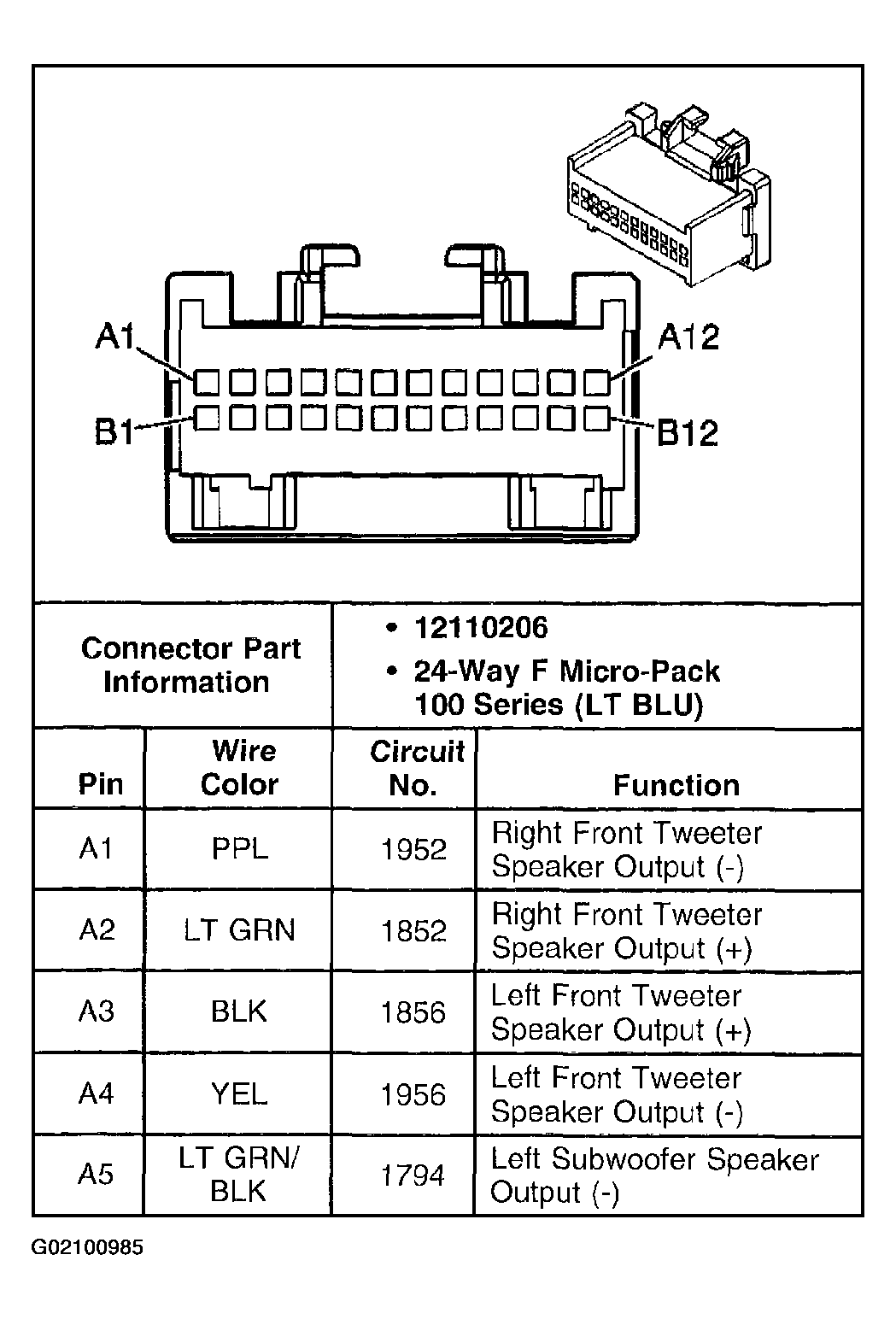

Fig 4: Identifying Audio Amplifier (w/UX8) C3 Connector (1 Of 2)

G02100985

Courtesy of GENERAL MOTORS CORP.

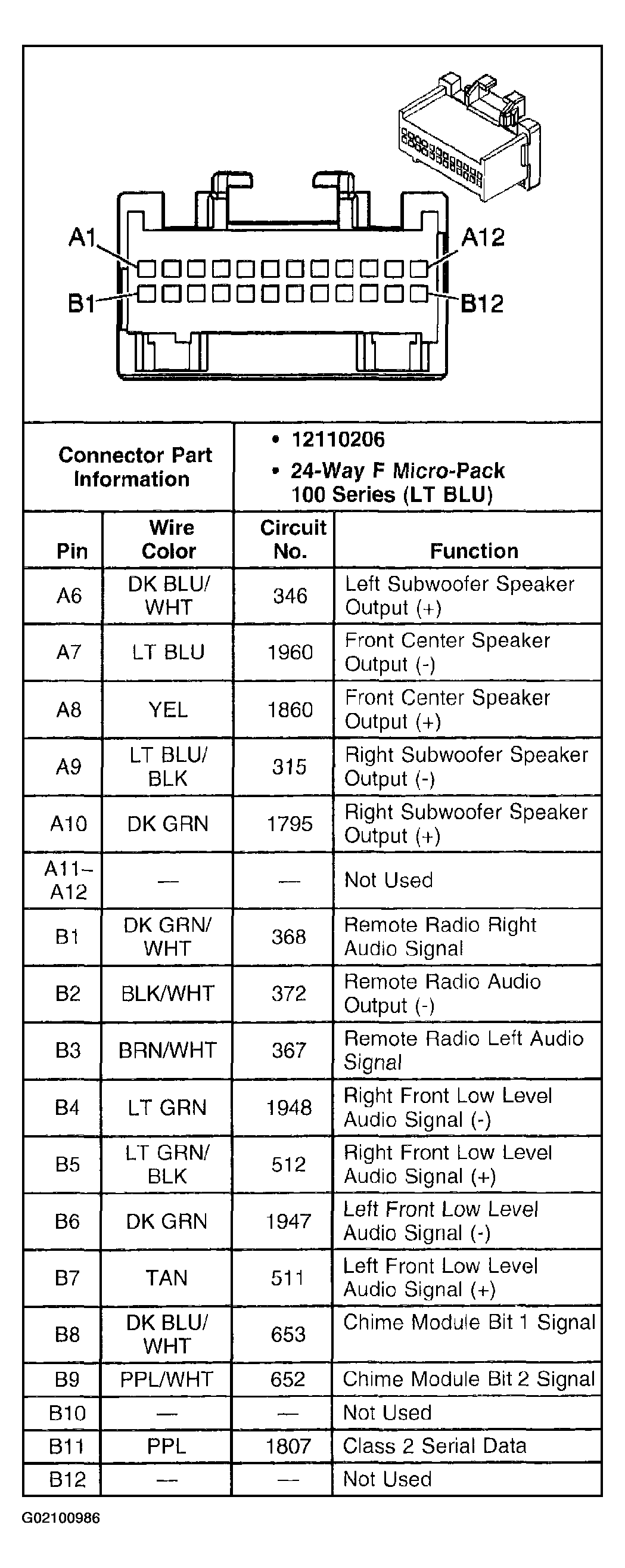

Fig 5: Identifying Audio Amplifier (w/UX8) C3 Connector (2 Of 2)

G02100986

Courtesy of GENERAL MOTORS CORP.

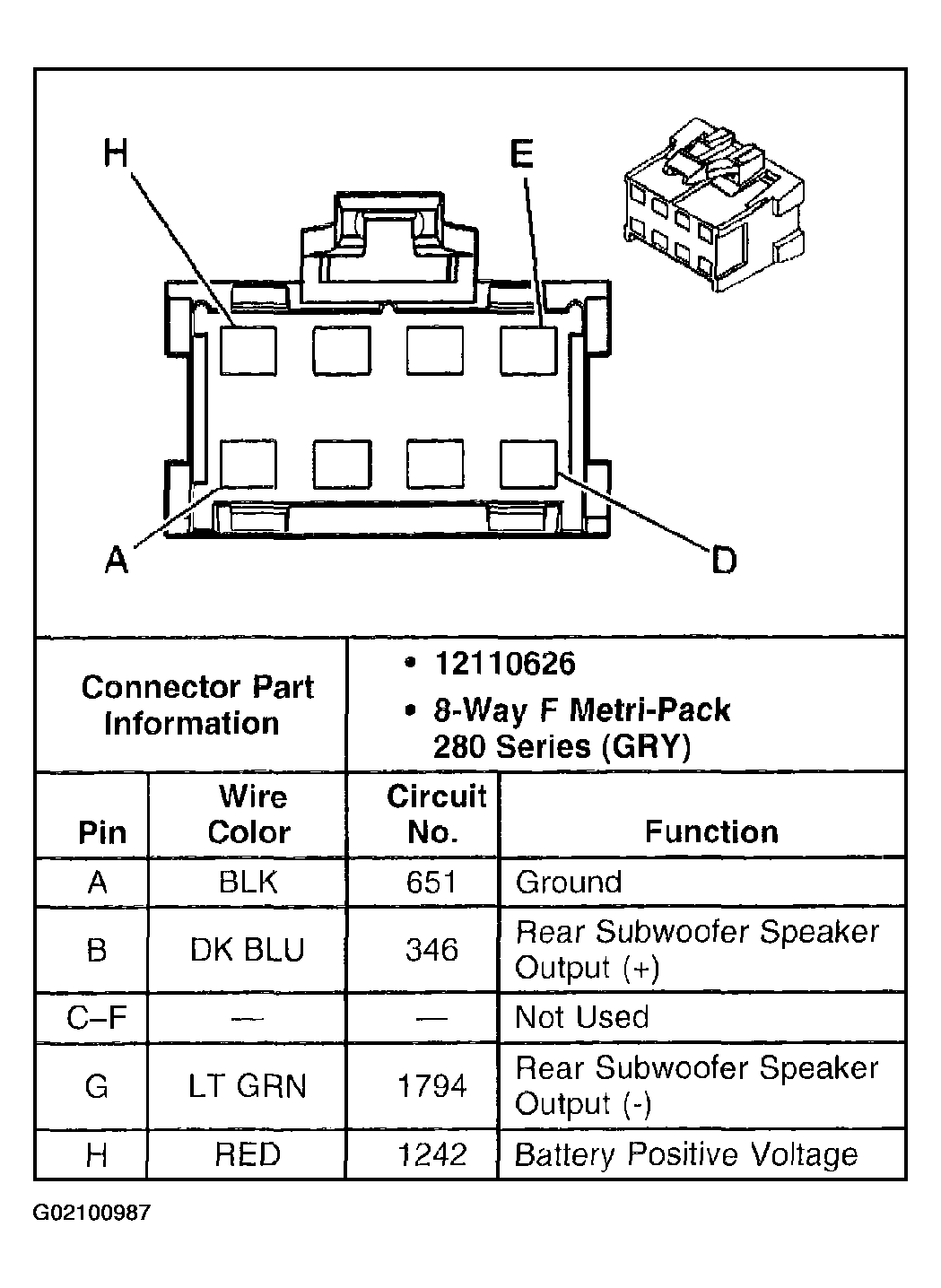

Fig 6: Identifying Audio Amplifier (w/U57) C1 Connector

G02100987

Courtesy of GENERAL MOTORS CORP.

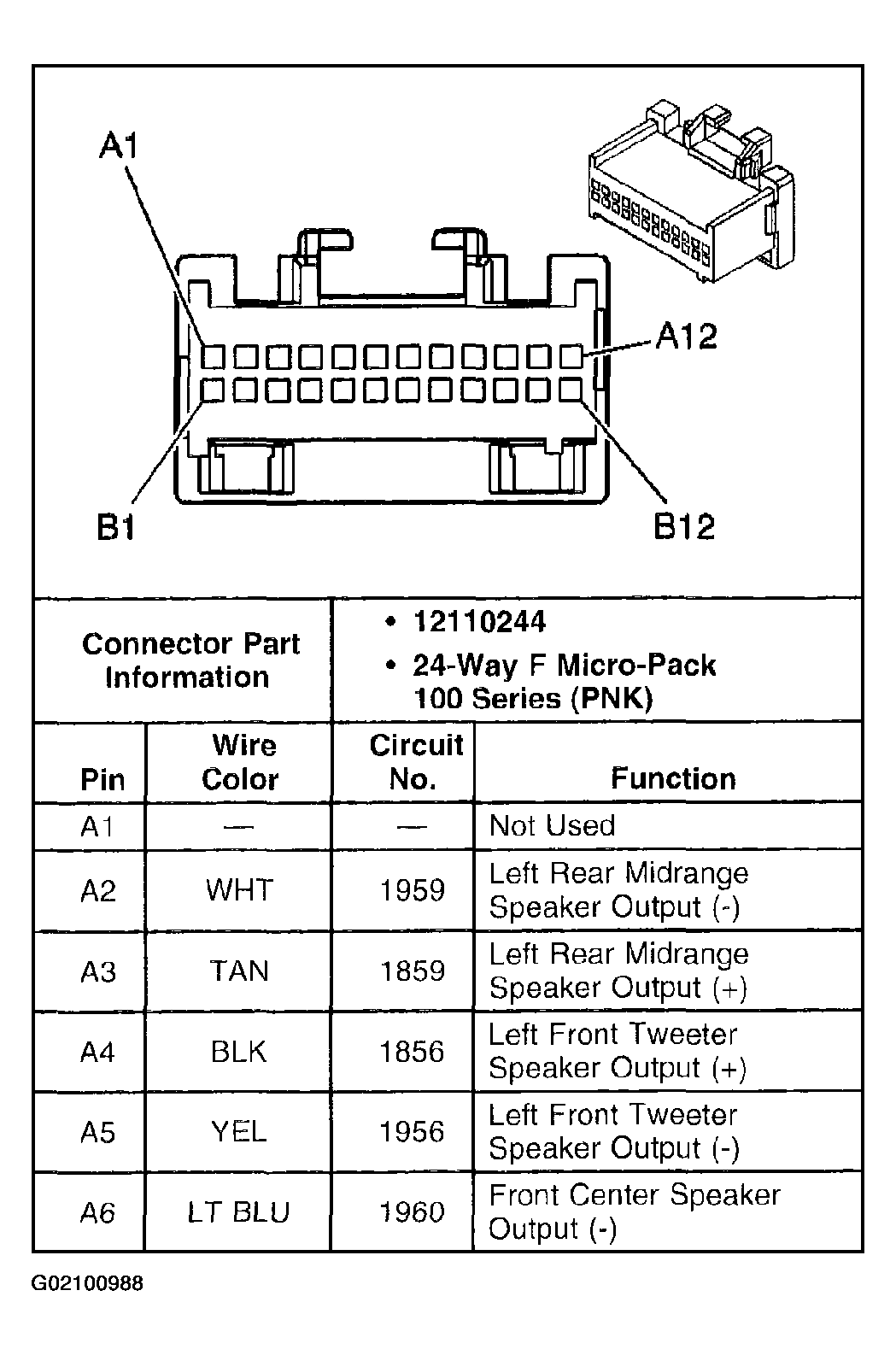

Fig 7: Identifying Audio Amplifier (w/U57) C2 Connector (1 Of 2)

G02100988

Courtesy of GENERAL MOTORS CORP.

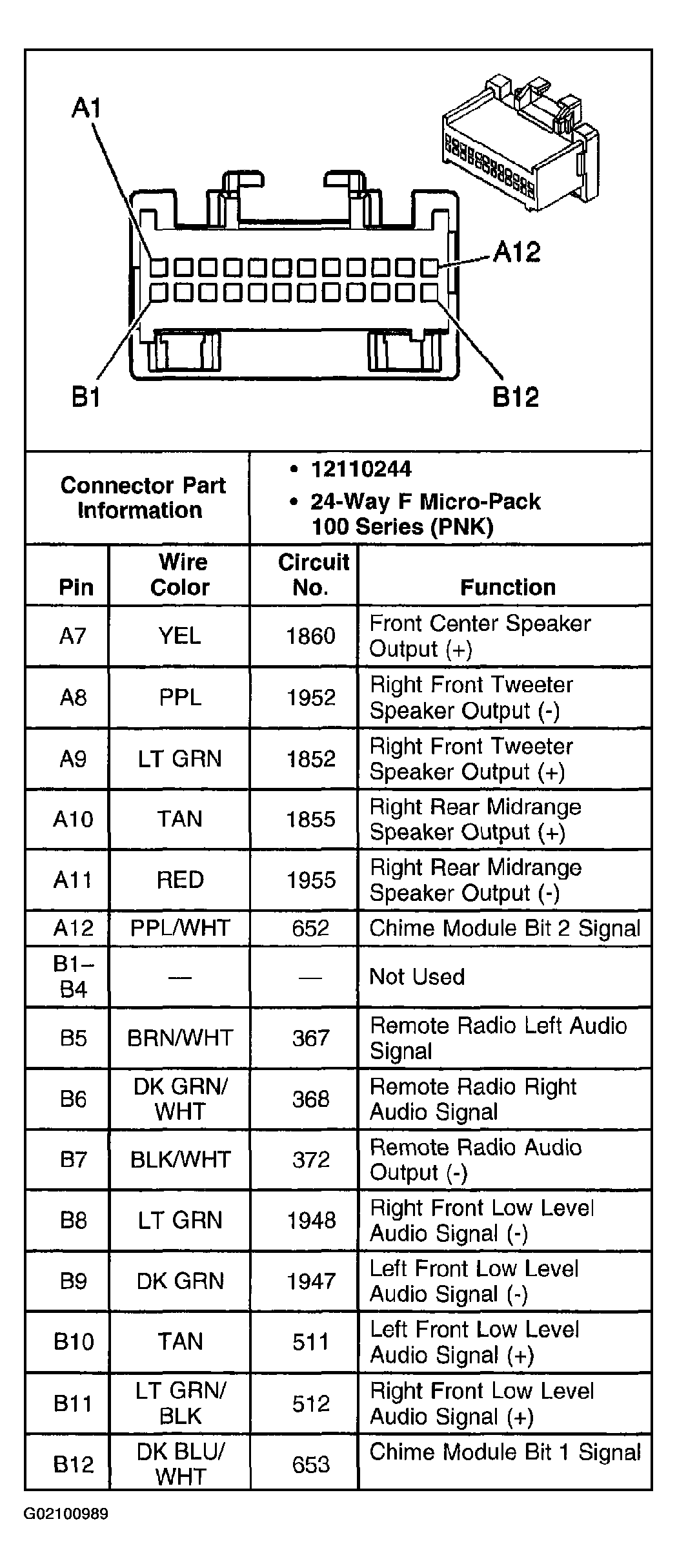

Fig 8: Identifying Audio Amplifier (w/U57) C2 Connector (2 Of 2)

G02100989

Courtesy of GENERAL MOTORS CORP.

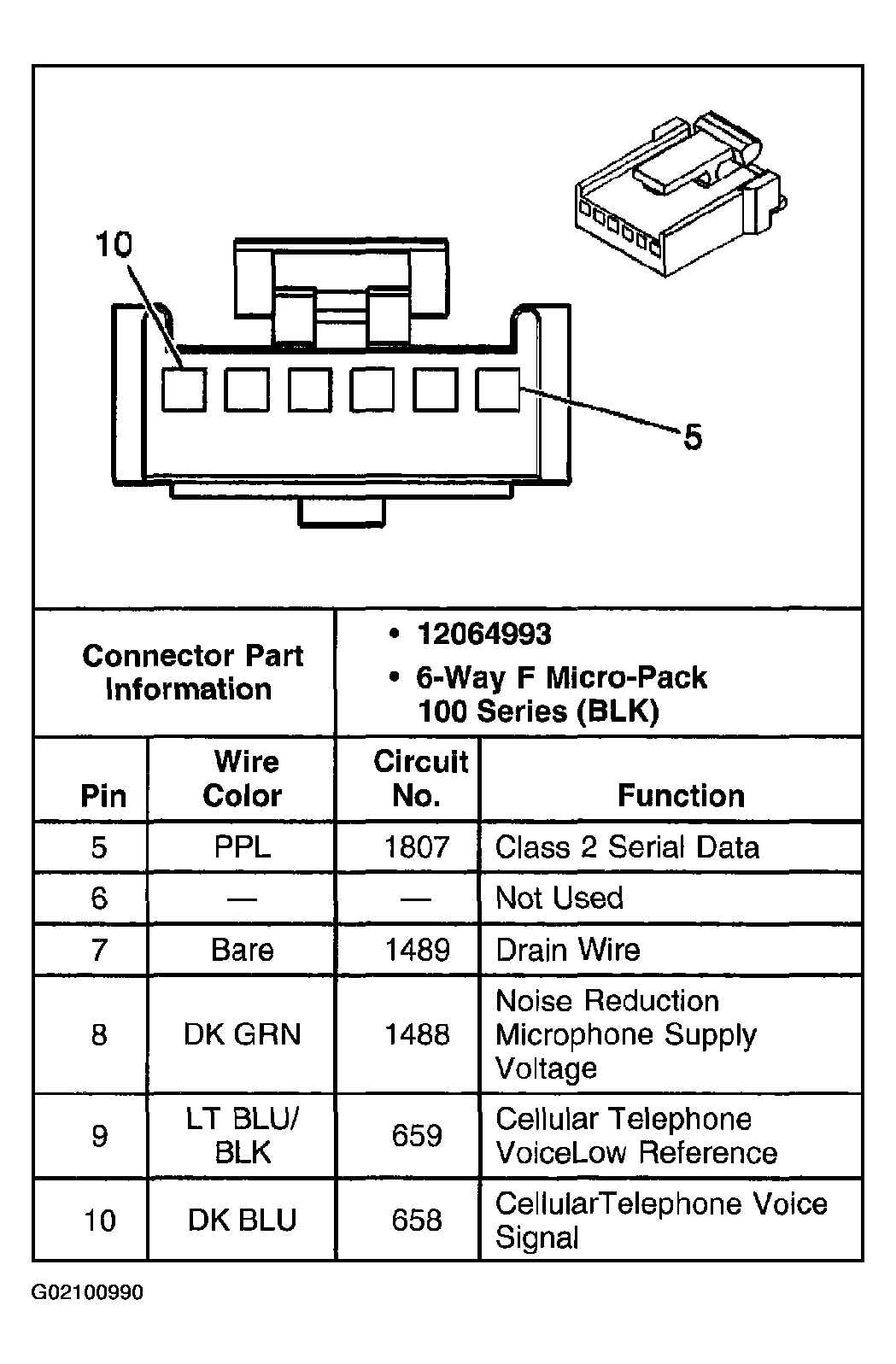

Fig 9: Identifying Audio Amplifier (w/U57) C3 Connector

G02100990

Courtesy of GENERAL MOTORS CORP.

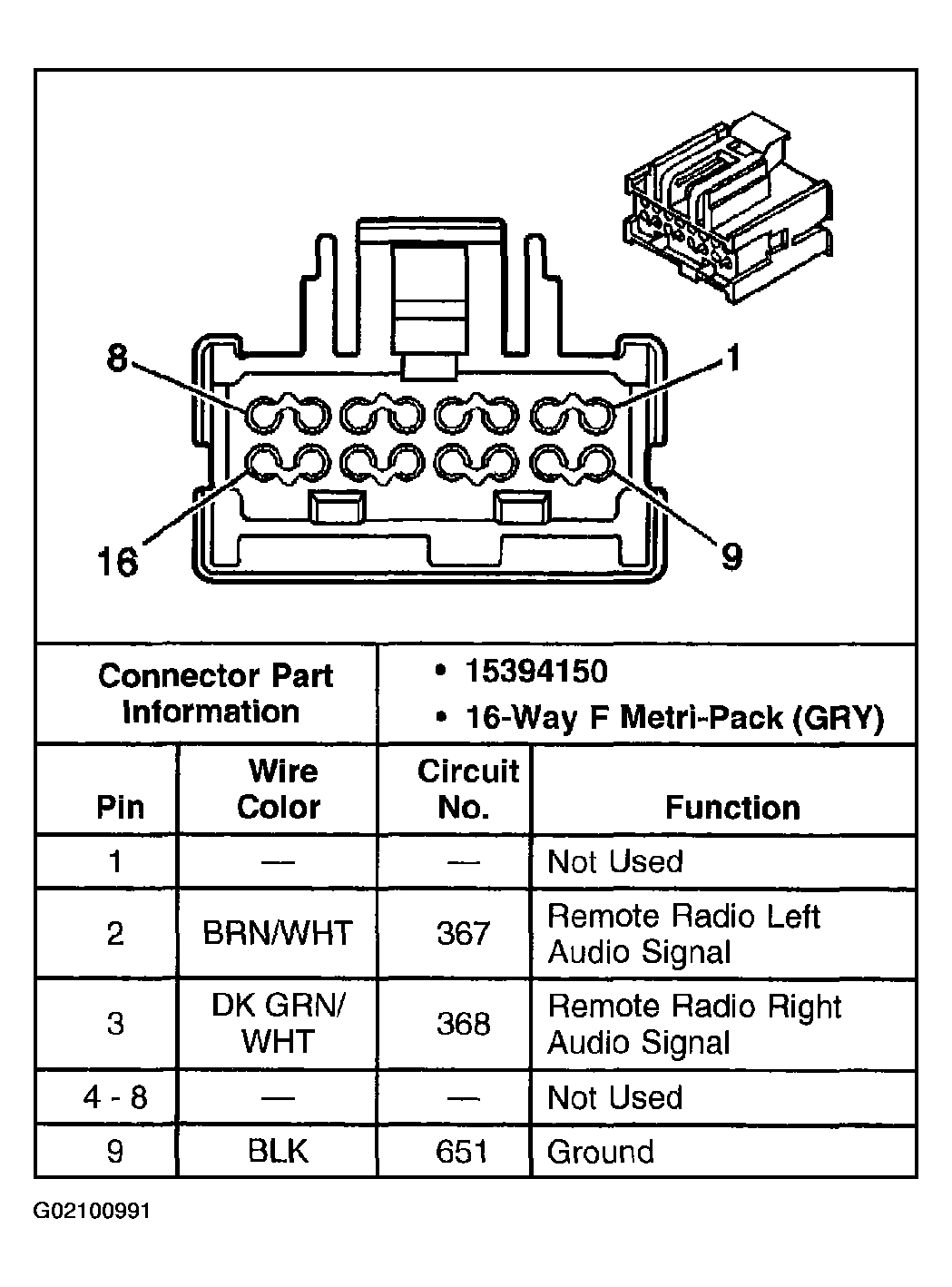

Fig 10: Identifying Digital Radio Receiver (U2K) Connector (1 Of 2)

G02100991

Courtesy of GENERAL MOTORS CORP.

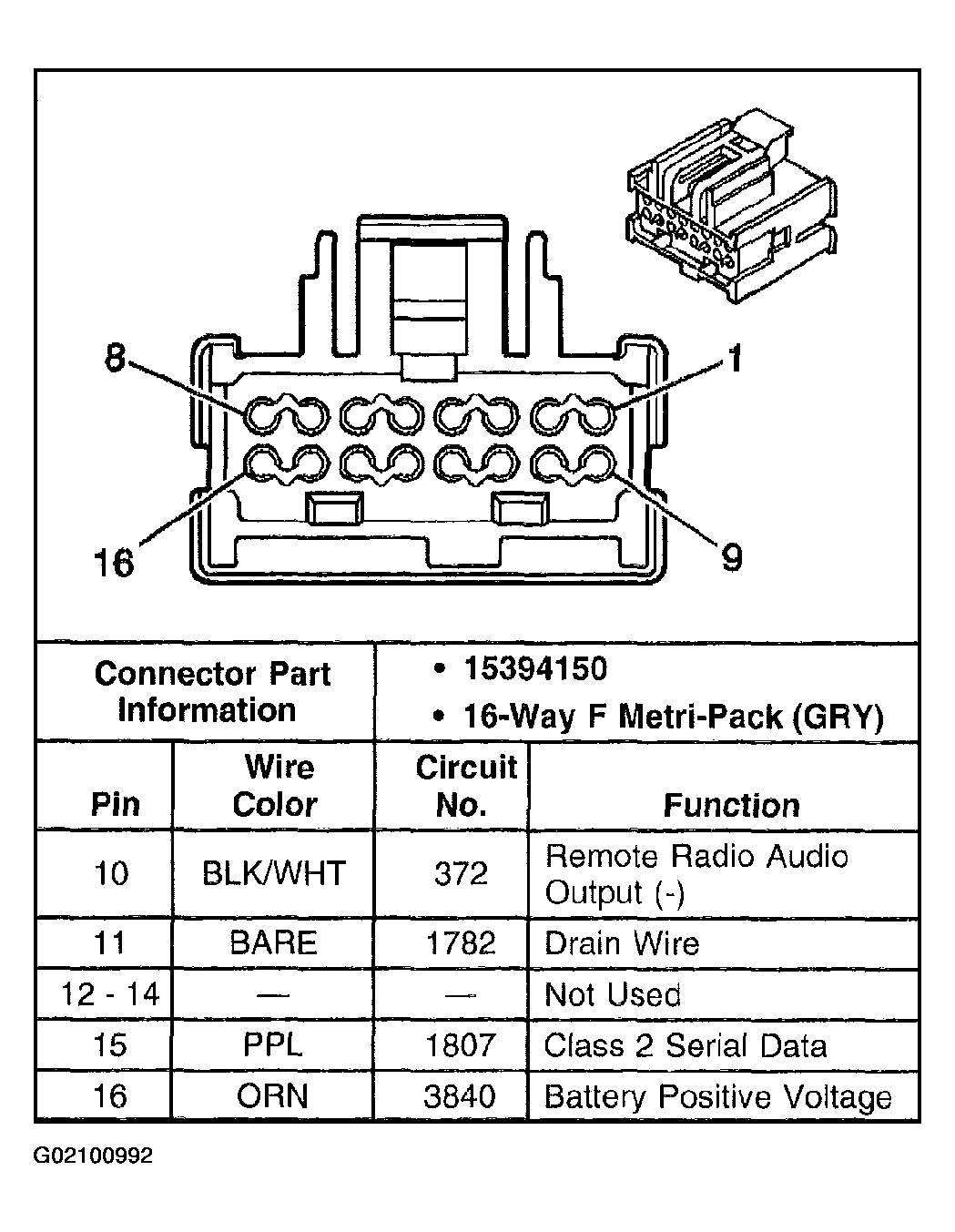

Fig 11: Identifying Digital Radio Receiver (U2K) Connector (2 Of 2)

G02100992

Courtesy of GENERAL MOTORS CORP.

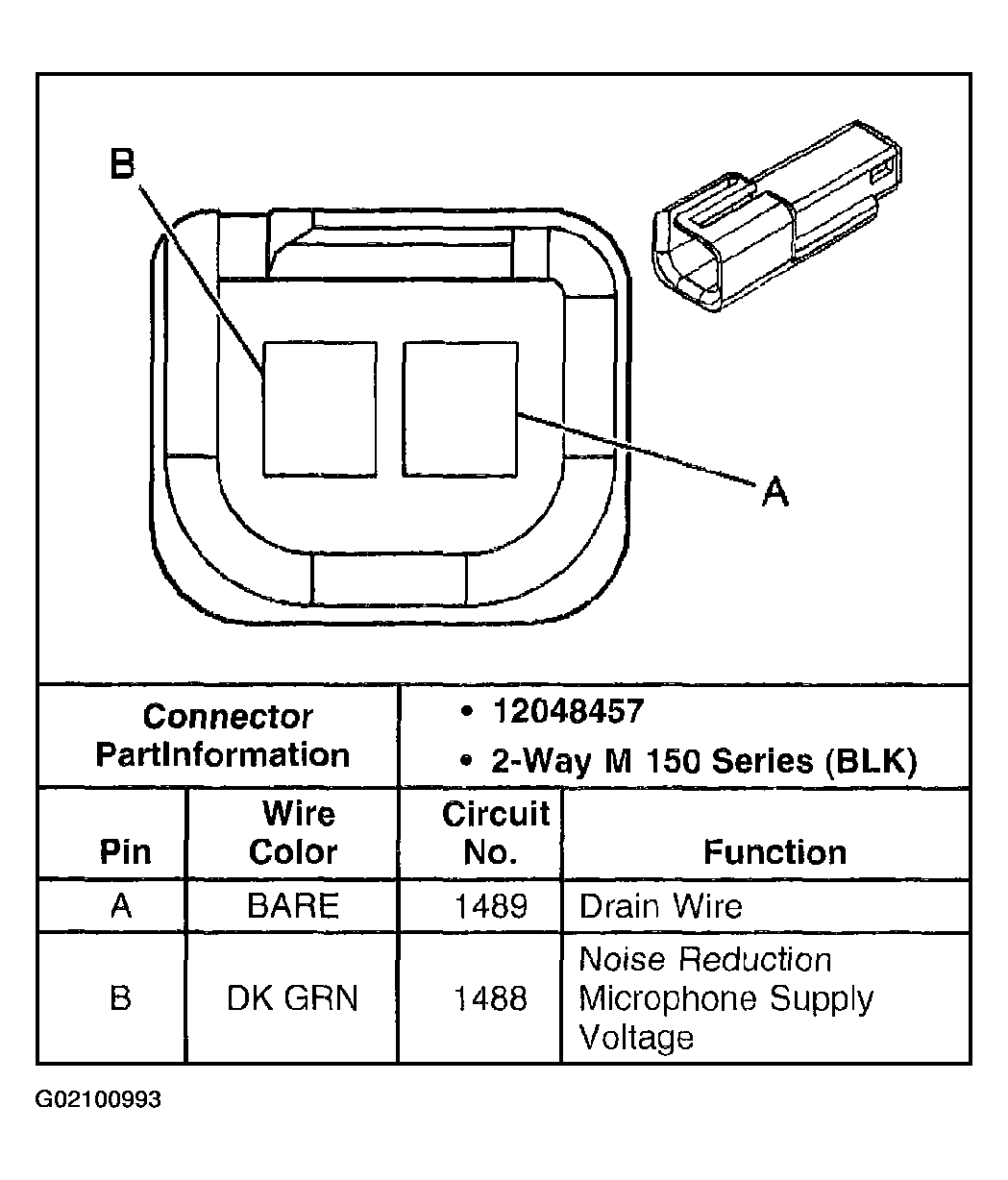

Fig 12: Identifying Noise Cancellation Microphone

G02100993

Courtesy of GENERAL MOTORS CORP.

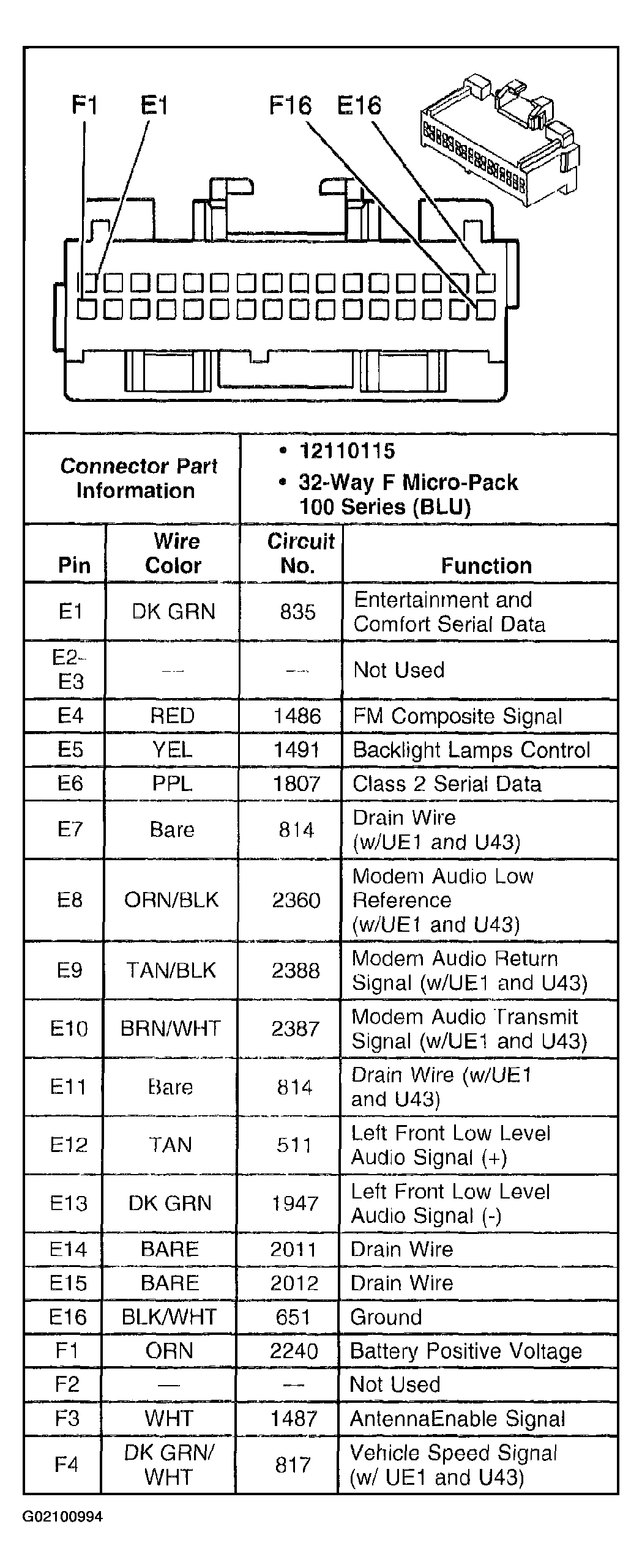

Fig 13: Identifying Radio (w/O U3R,U3S,U3Q) Connector (1 Of 2)

G02100994

Courtesy of GENERAL MOTORS CORP.

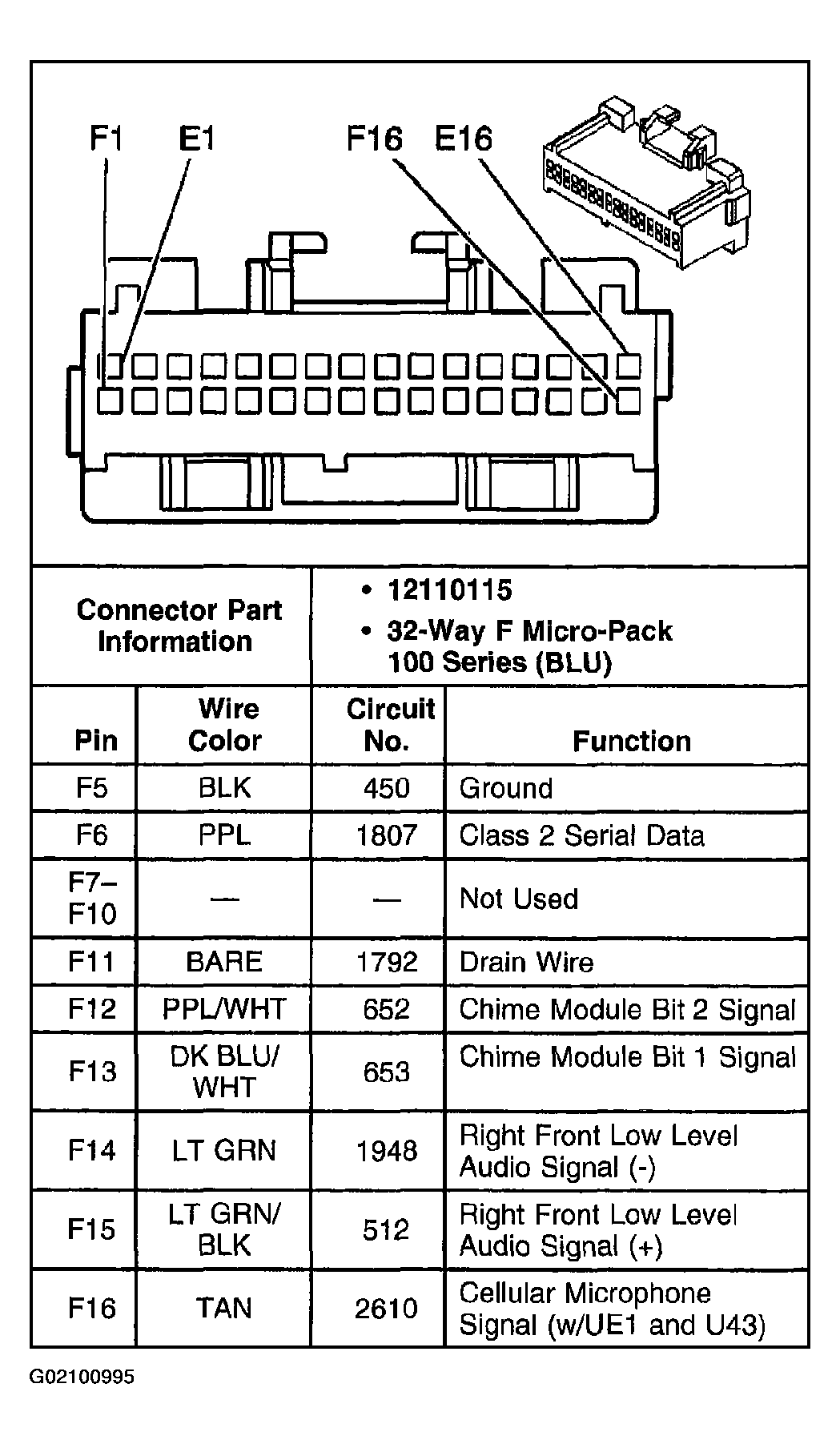

Fig 14: Identifying Radio (w/O U3R,U3S,U3Q) Connector (2 Of 2)

G02100995

Courtesy of GENERAL MOTORS CORP.

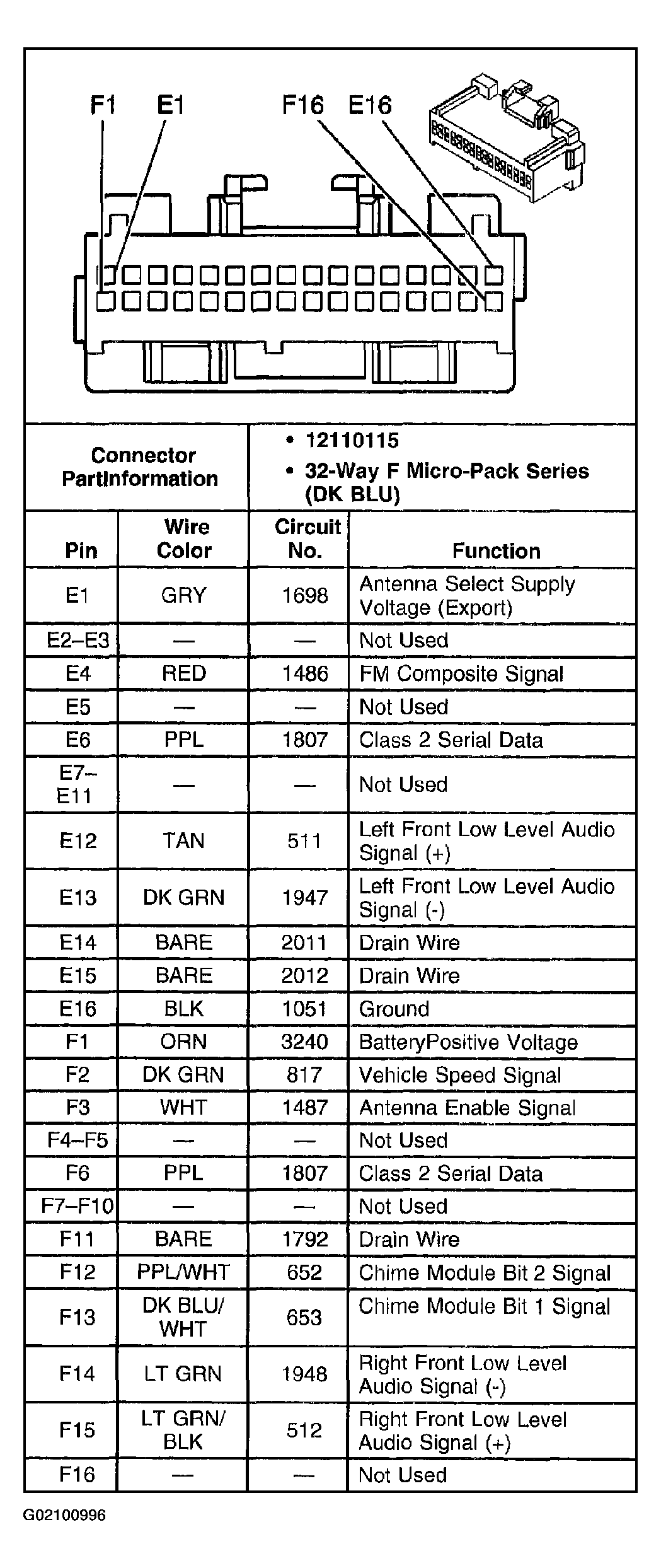

Fig 15: Identifying Radio C1 (w/U3R,U3S,U3Q) Connector

G02100996

Courtesy of GENERAL MOTORS CORP.

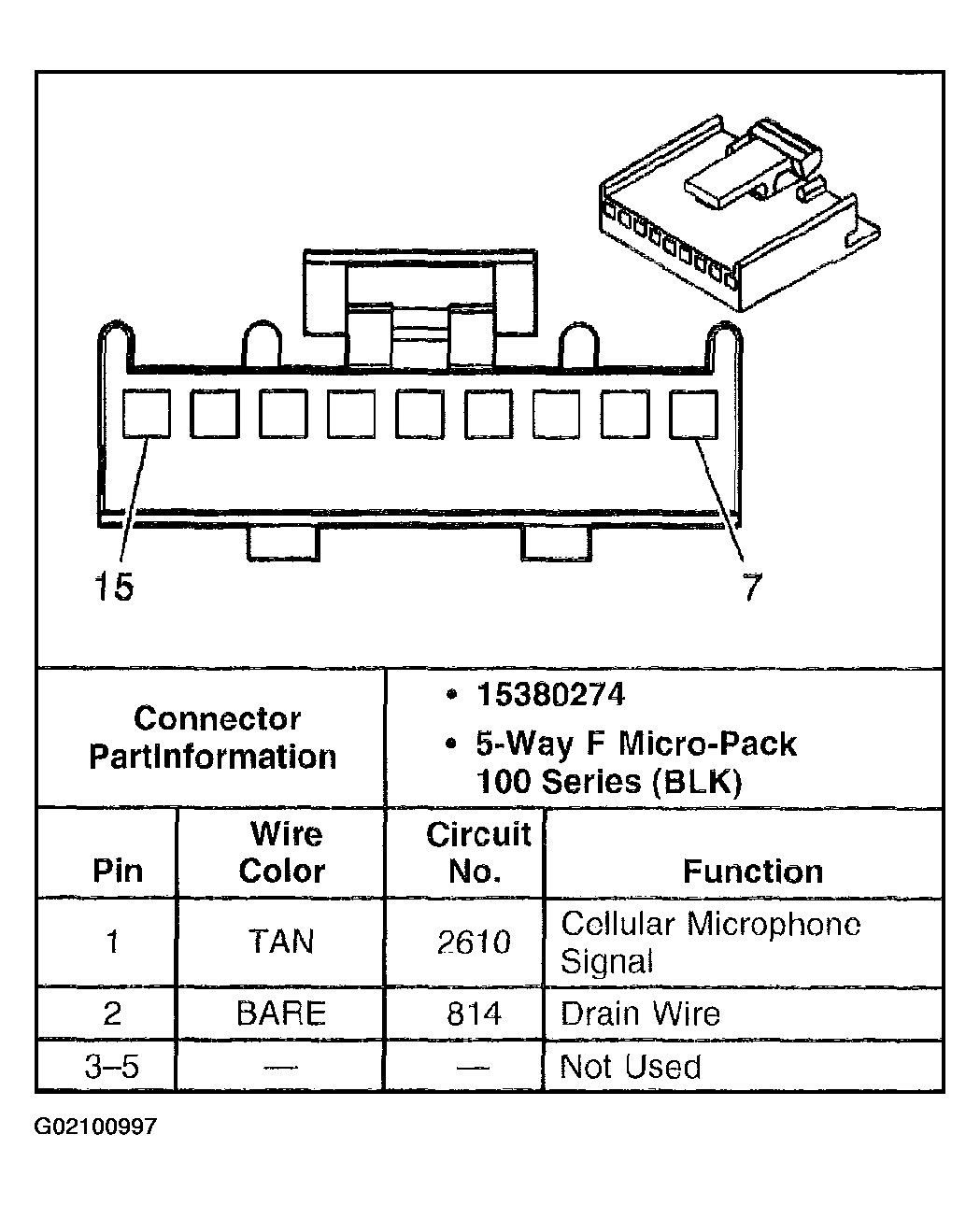

Fig 16: Identifying Radio C2 (w/U3R,U3S,U3Q) Connector

G02100997

Courtesy of GENERAL MOTORS CORP.

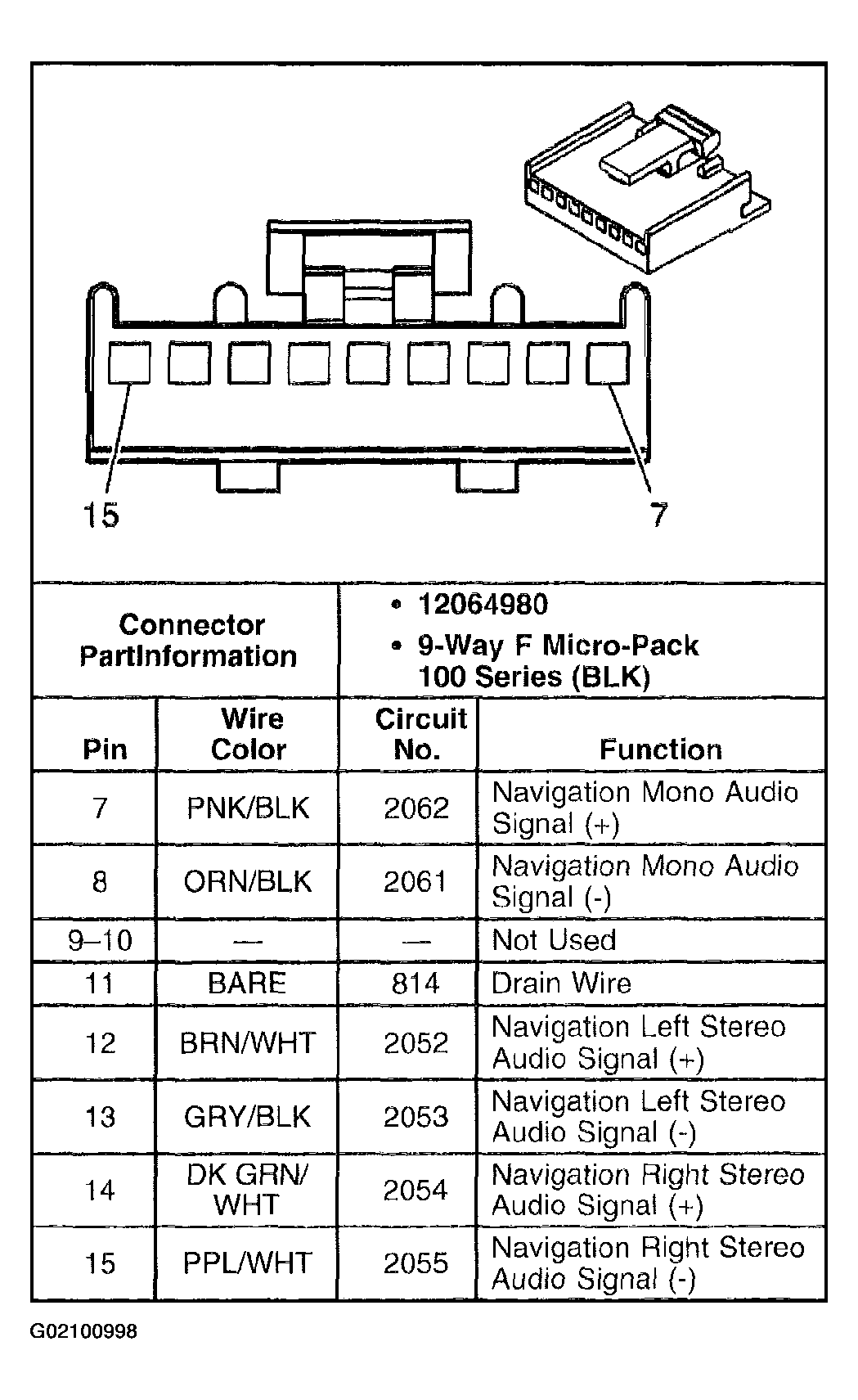

Fig 17: Identifying Radio C2 (w/O U3R,U3S,U3Q) Connector

G02100998

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Radio Antenna Module Connector

G02100999

Courtesy of GENERAL MOTORS CORP.

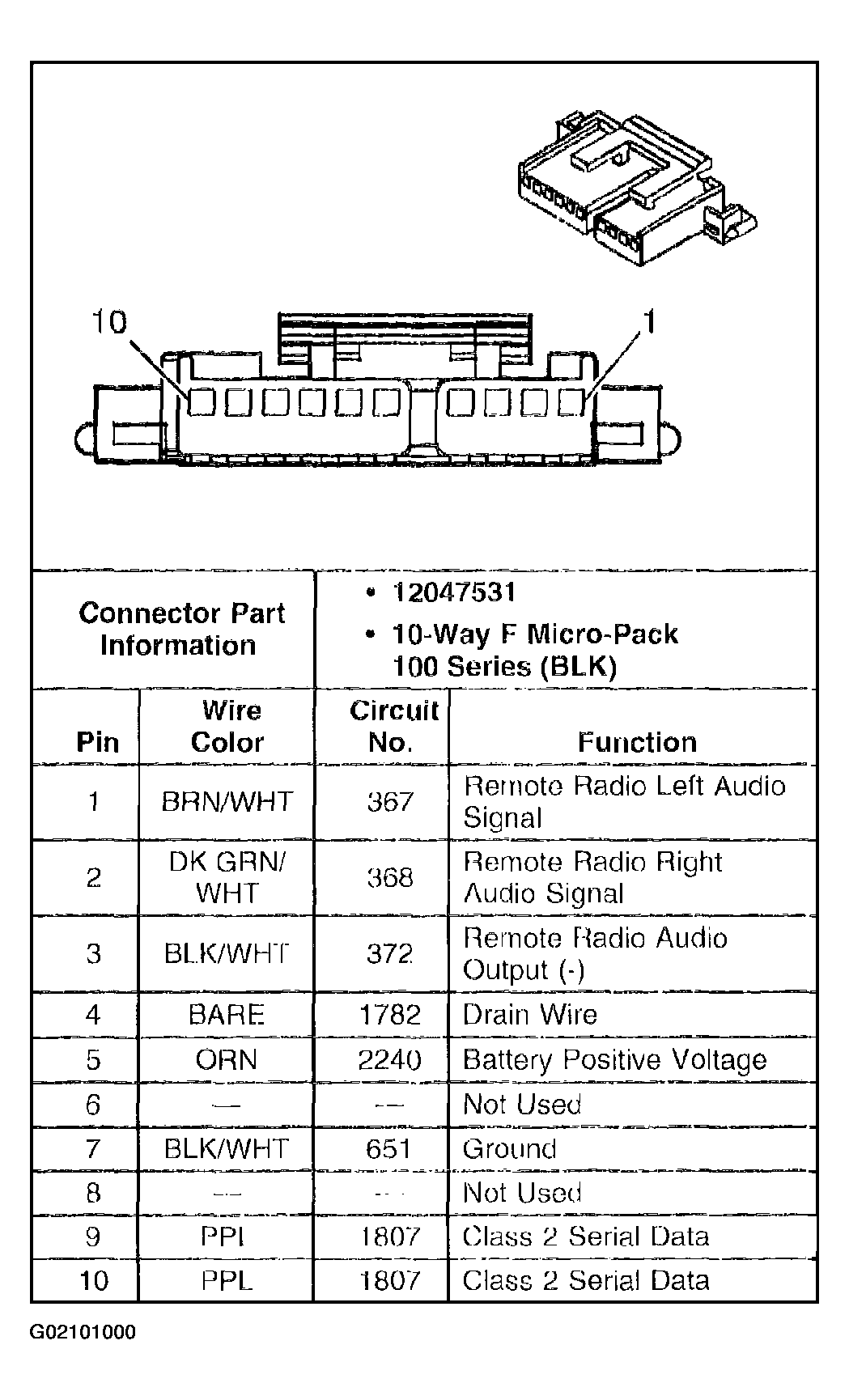

Fig 19: Identifying Remote Playback Device - CD Changer Connector

G02101000

Courtesy of GENERAL MOTORS CORP.

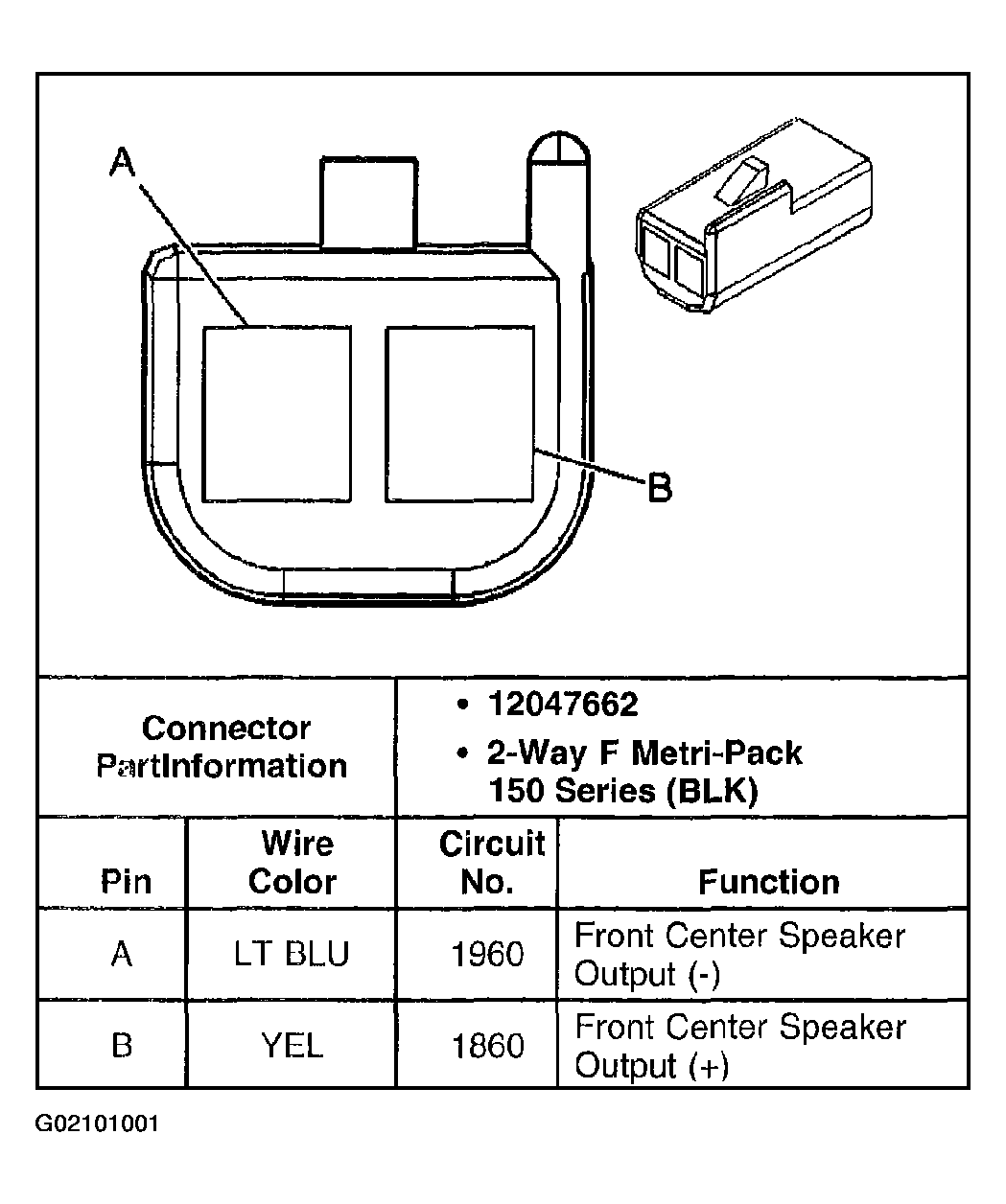

Fig 20: Identifying Speaker - Front I/P Mid-Range Connector

G02101001

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Speaker - LF (w/U57) Connector

G02101002

Courtesy of GENERAL MOTORS CORP.

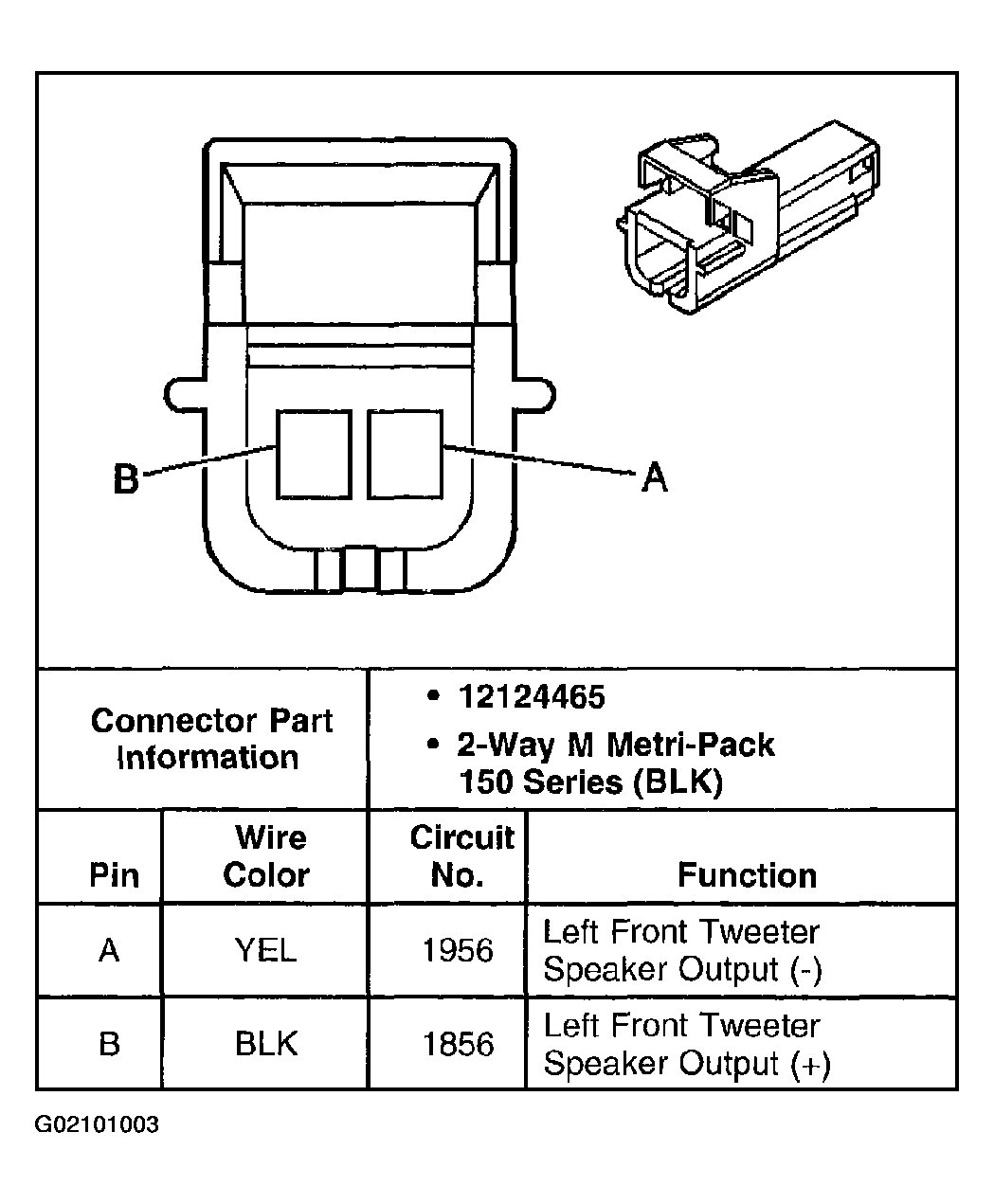

Fig 22: Identifying Speaker - LF (w/UX8) Connector

G02101003

Courtesy of GENERAL MOTORS CORP.

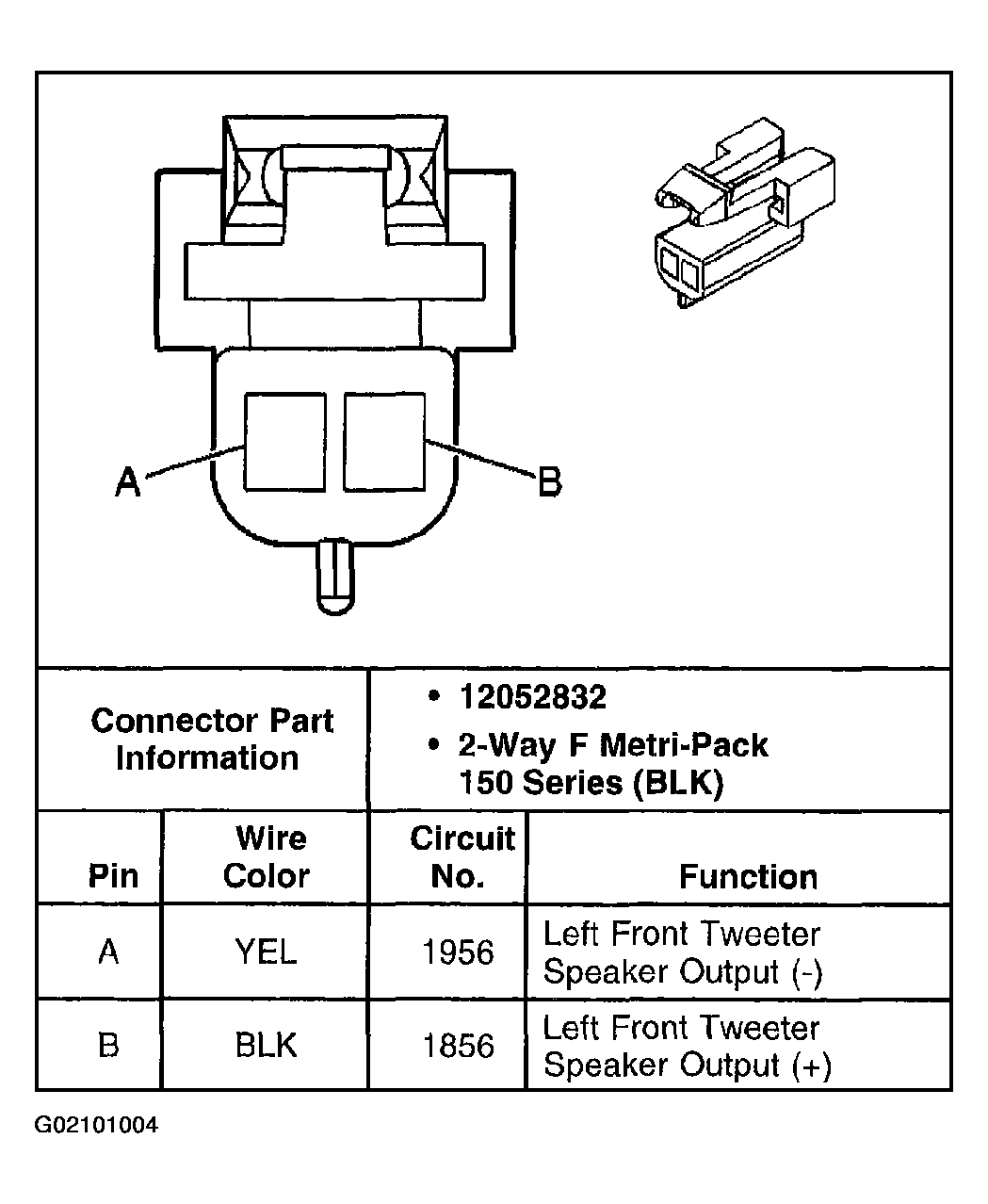

Fig 23: Identifying Speaker - LF Door (w/U57) Connector

G02101004

Courtesy of GENERAL MOTORS CORP.

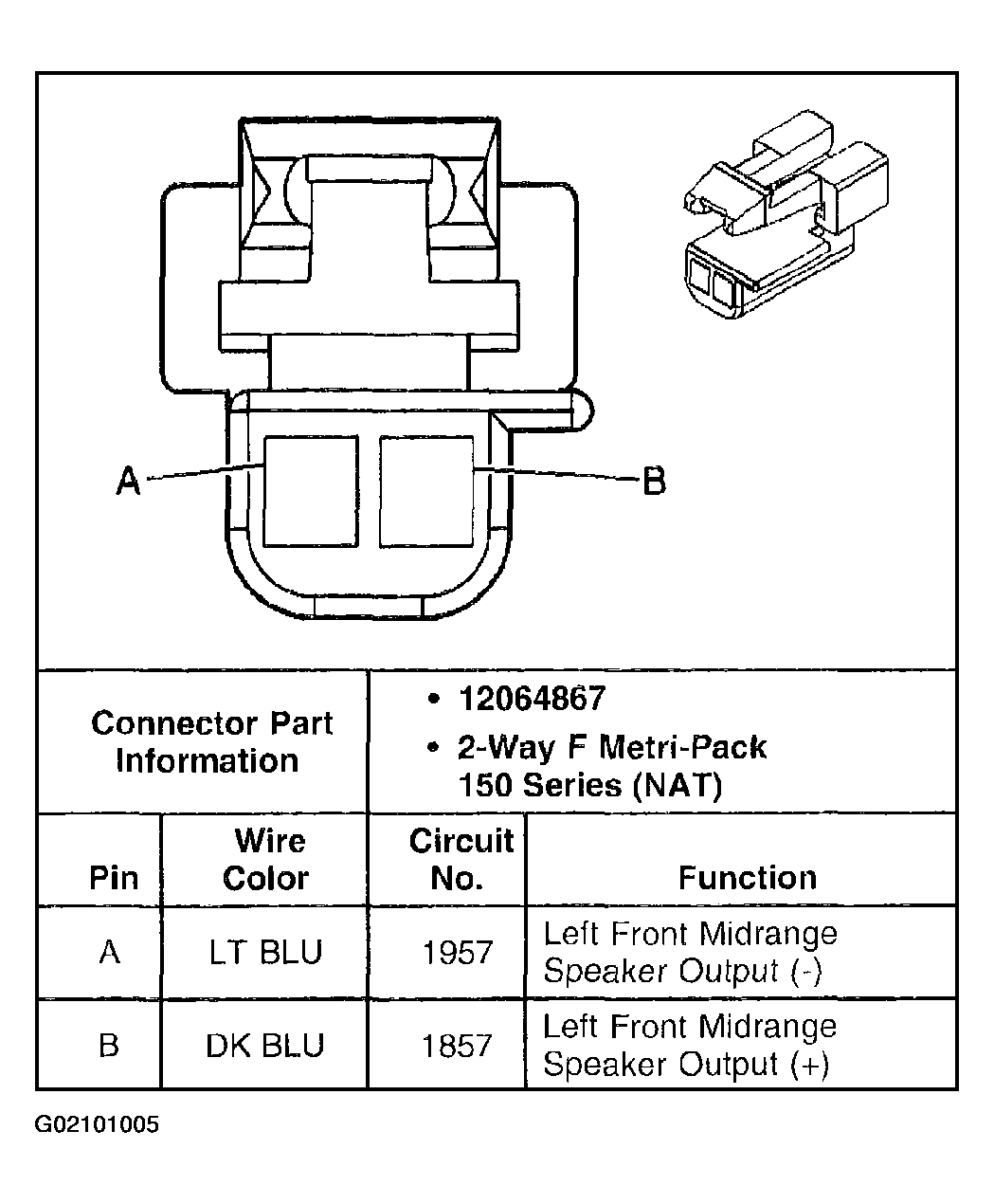

Fig 24: Identifying Speaker - LF Door (w/UX8) Connector

G02101005

Courtesy of GENERAL MOTORS CORP.

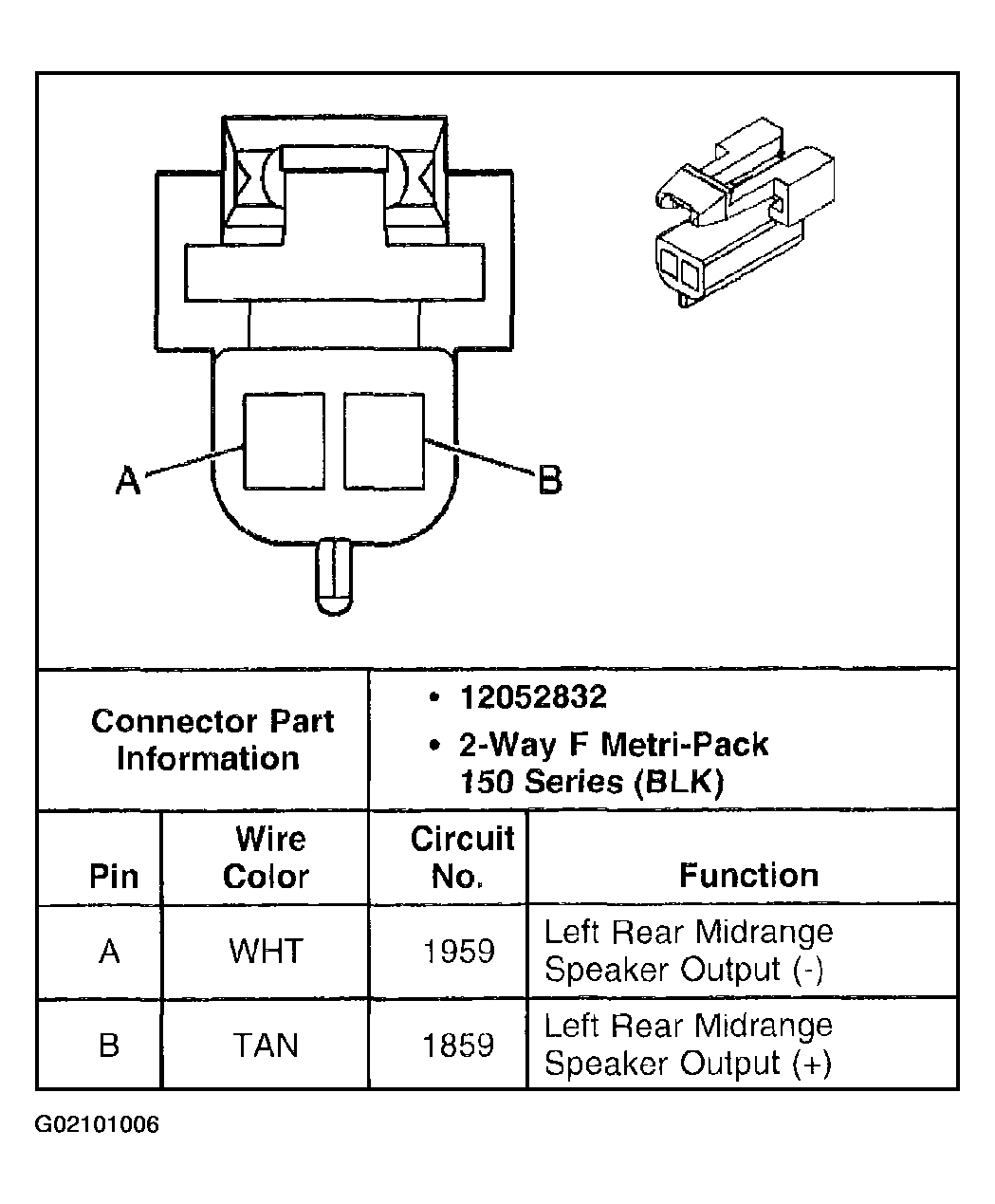

Fig 25: Identifying Speaker - LR Door Connector

G02101006

Courtesy of GENERAL MOTORS CORP.

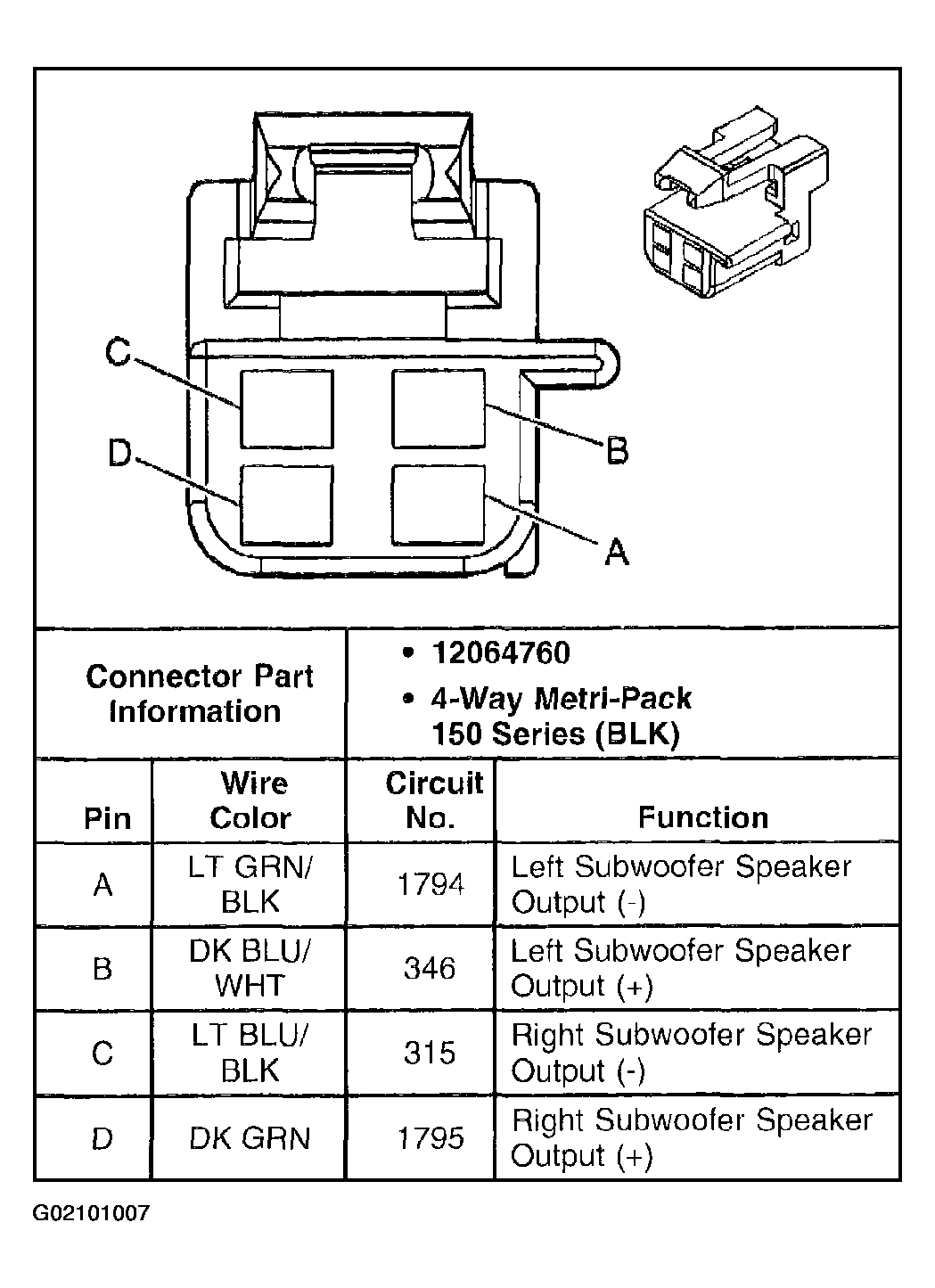

Fig 26: Identifying Speaker - Rear Subwoofer (w/UX8) Connector

G02101007

Courtesy of GENERAL MOTORS CORP.

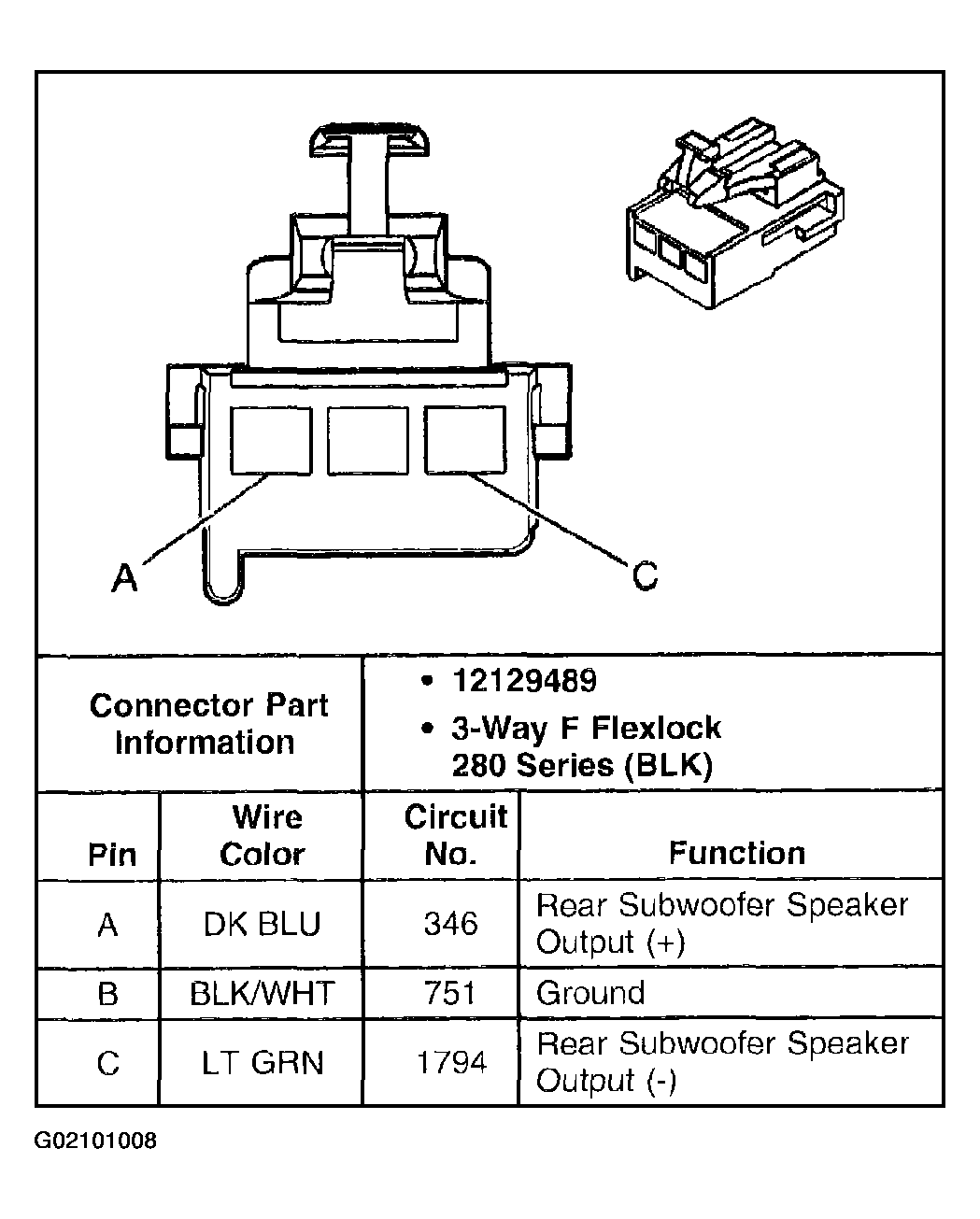

Fig 27: Identifying Speaker - Rear Subwoofer (w/U57) Connector

G02101008

Courtesy of GENERAL MOTORS CORP.

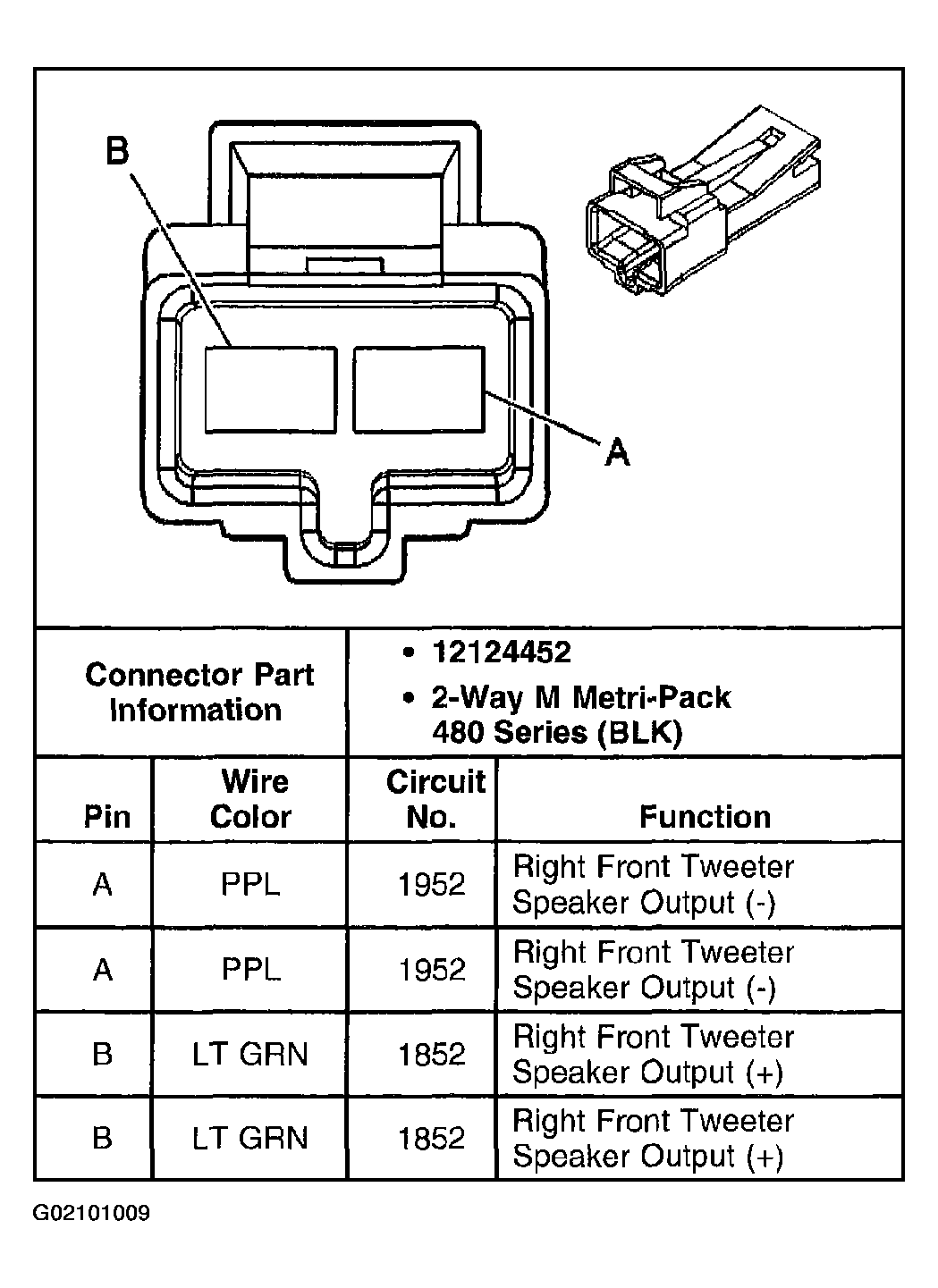

Fig 28: Identifying Speaker - RF (w/U57) Connector

G02101009

Courtesy of GENERAL MOTORS CORP.

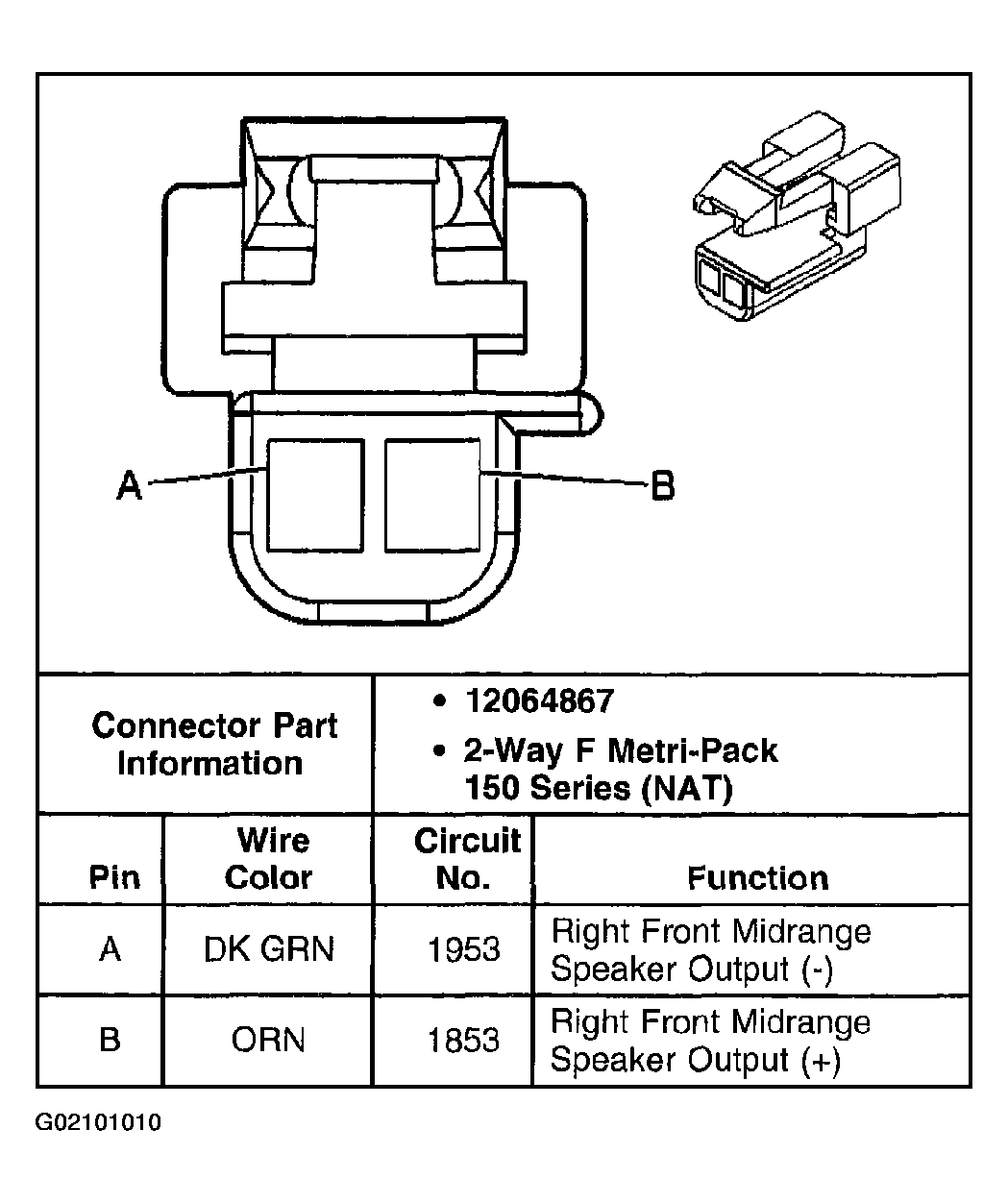

Fig 29: Identifying Speaker - RF Door (w/UX8) Connector

G02101010

Courtesy of GENERAL MOTORS CORP.

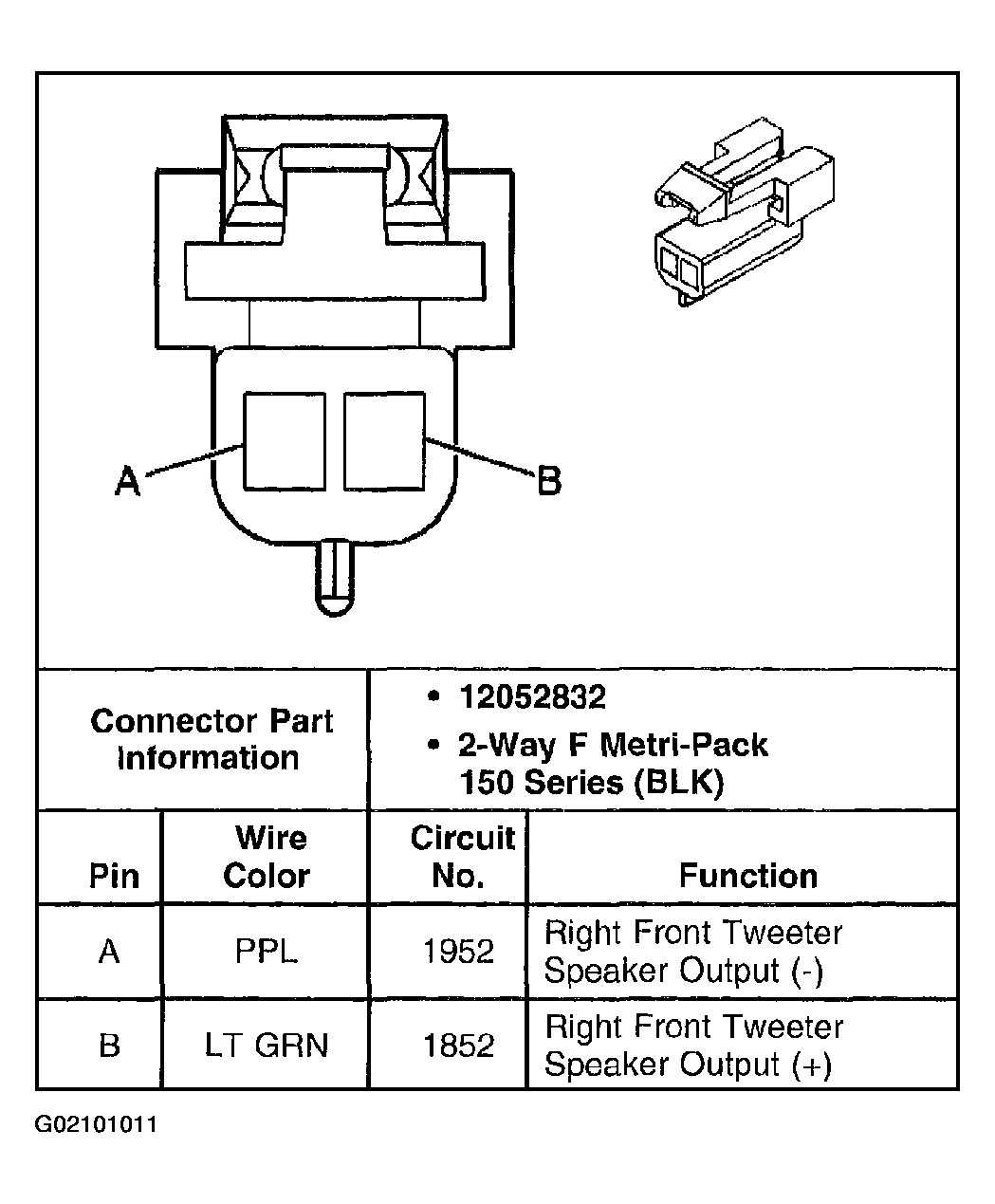

Fig 30: Identifying Speaker - RF Door (w/U57) Connector

G02101011

Courtesy of GENERAL MOTORS CORP.

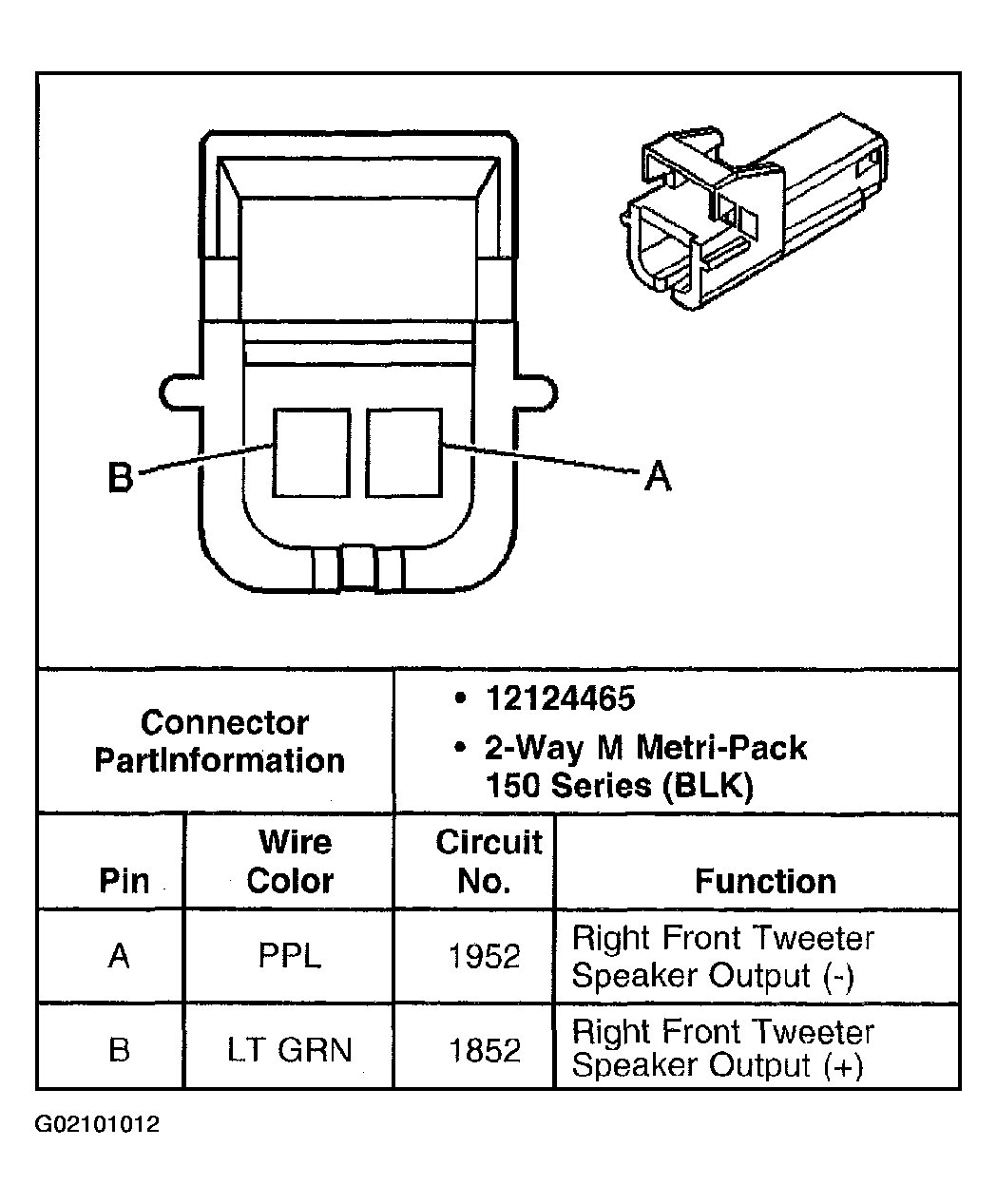

Fig 31: Identifying Speaker RF Door (w/UX8) Connector

G02101012

Courtesy of GENERAL MOTORS CORP.

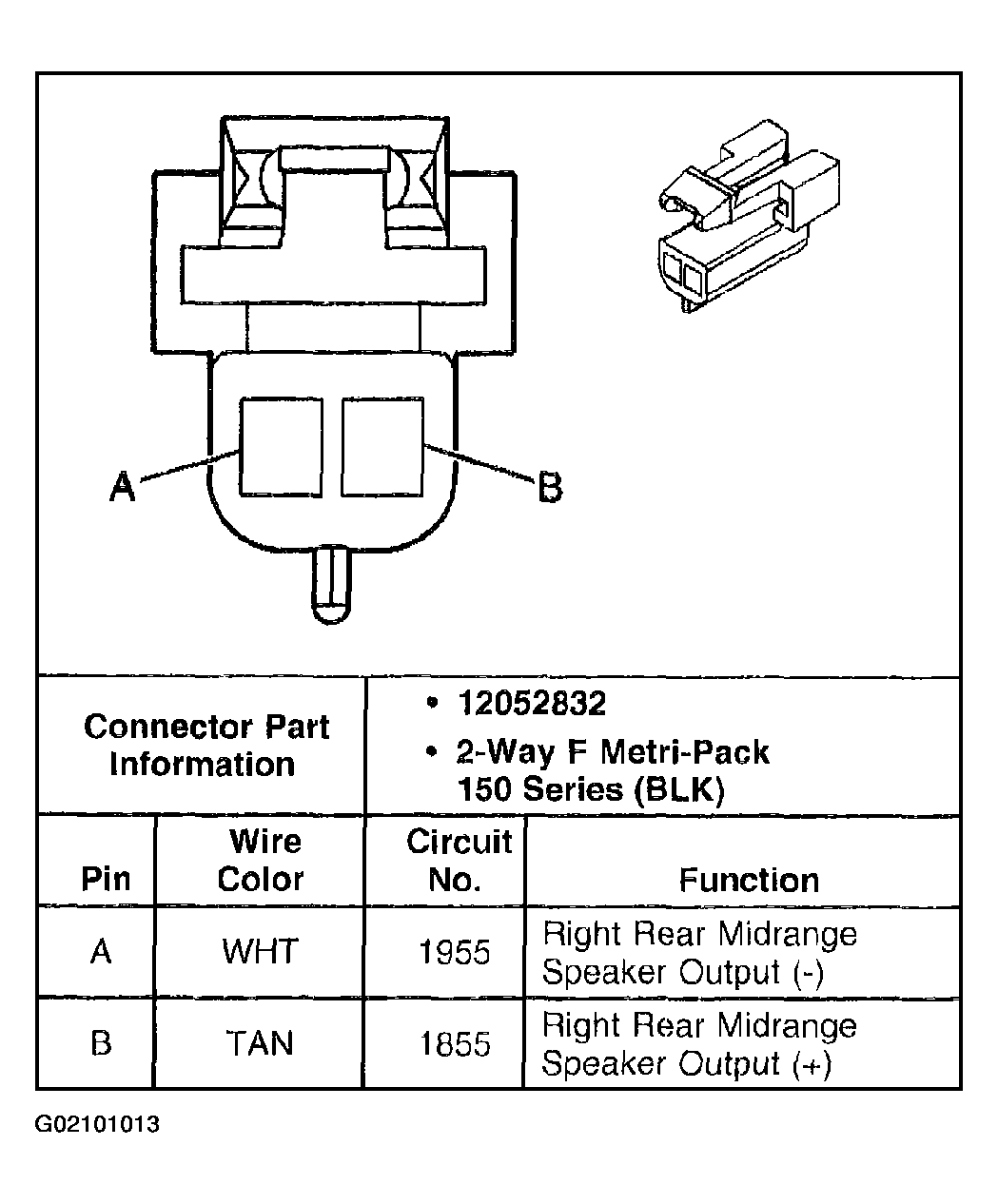

Fig 32: Identifying Speaker - RR Door Connector

G02101013

Courtesy of GENERAL MOTORS CORP.

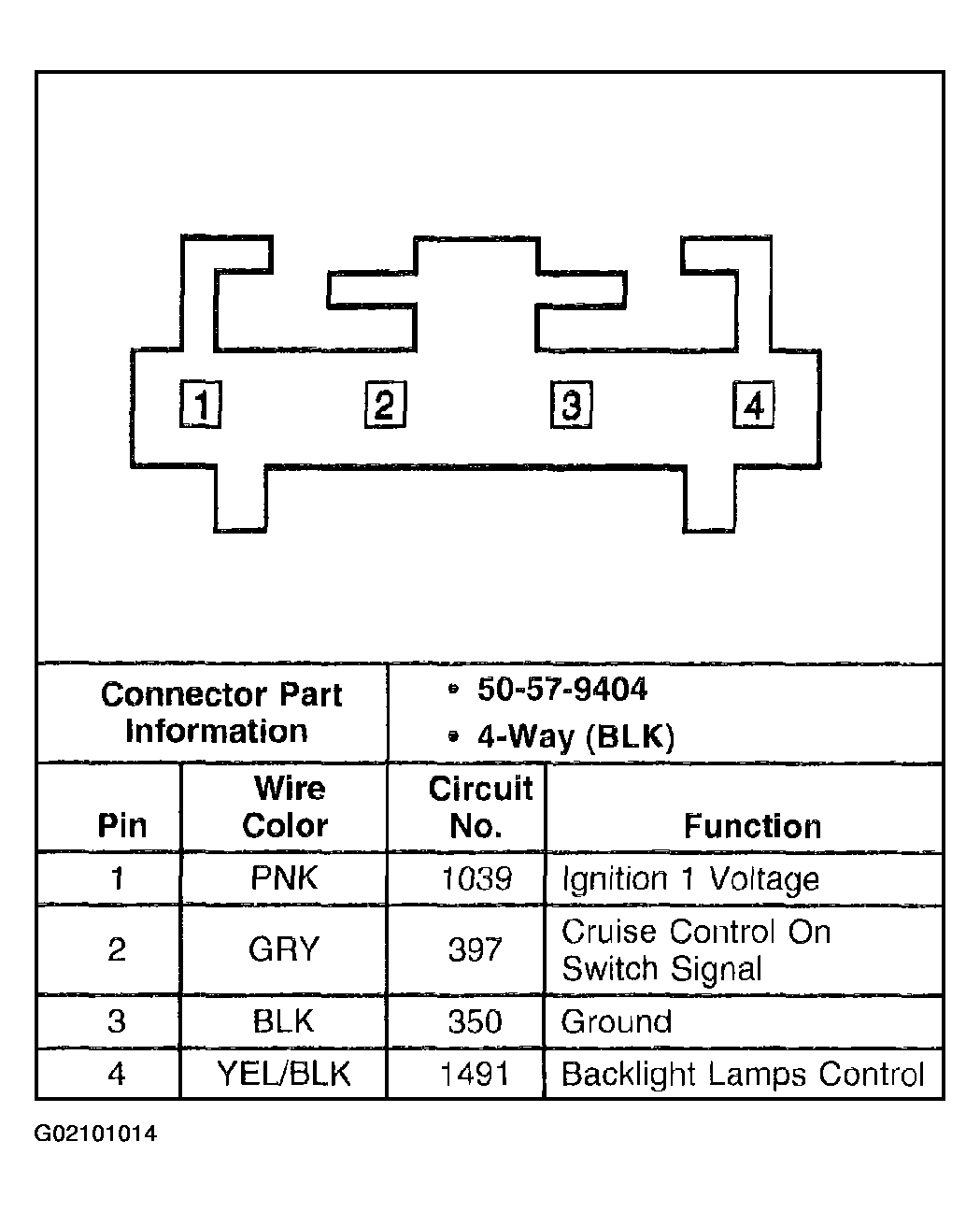

Fig 33: Identifying Steering Wheel Controls - Left C1 Connector

G02101014

Courtesy of GENERAL MOTORS CORP.

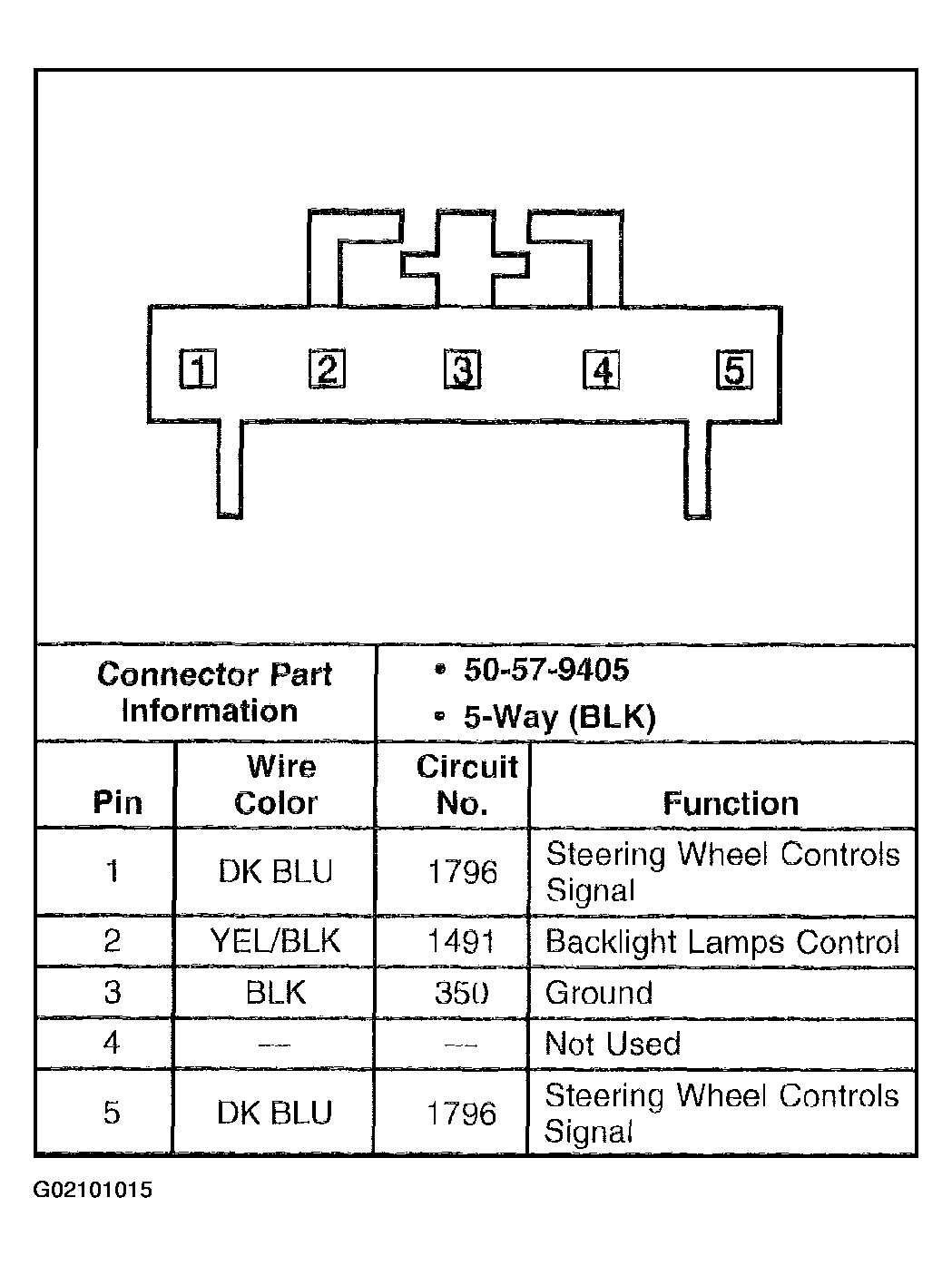

Fig 34: Identifying Steering Wheel Controls - Left C2 Connector

G02101015

Courtesy of GENERAL MOTORS CORP.

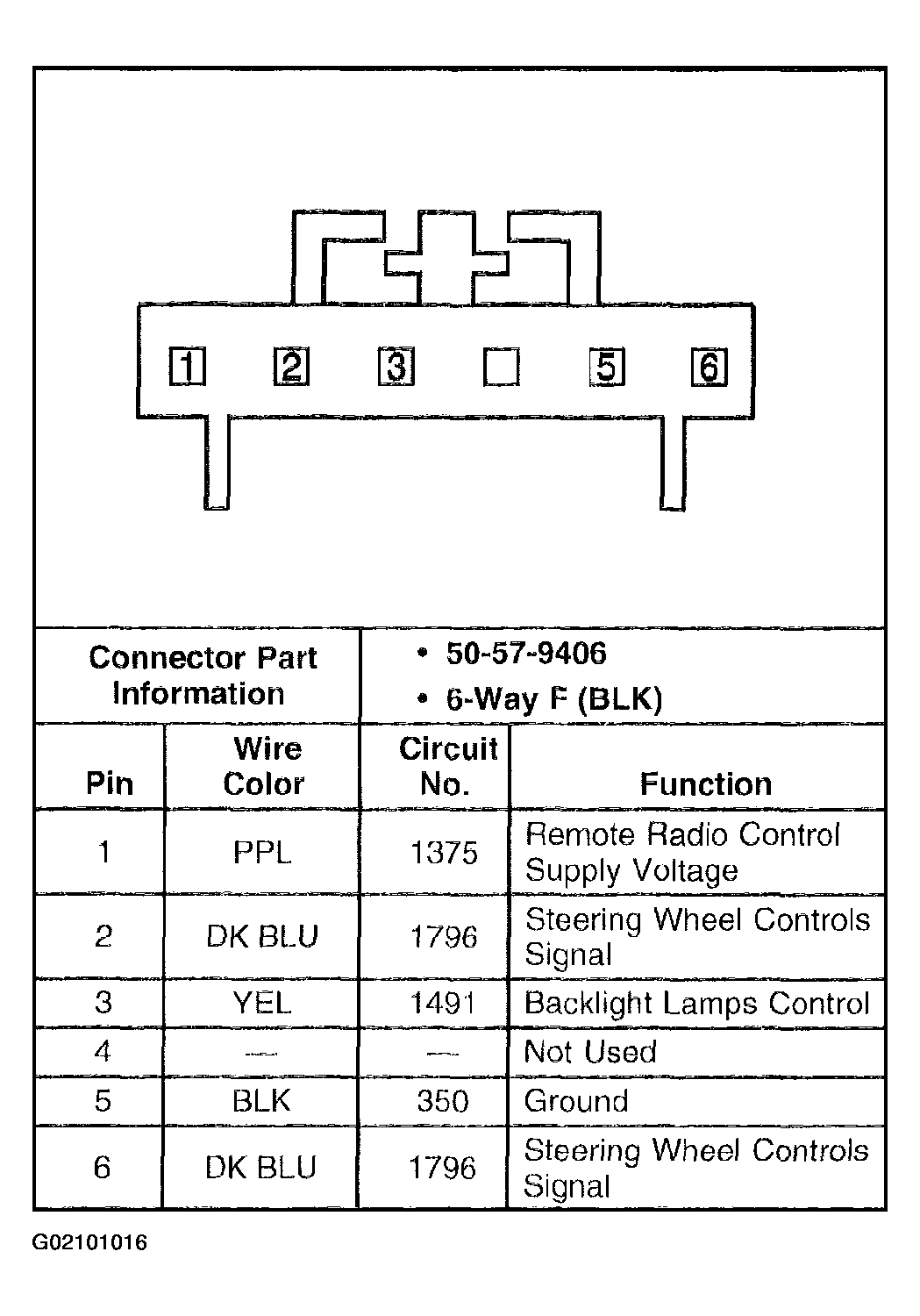

Fig 35: Identifying Steering Wheel Controls - Right C1 Connector

G02101016

Courtesy of GENERAL MOTORS CORP.

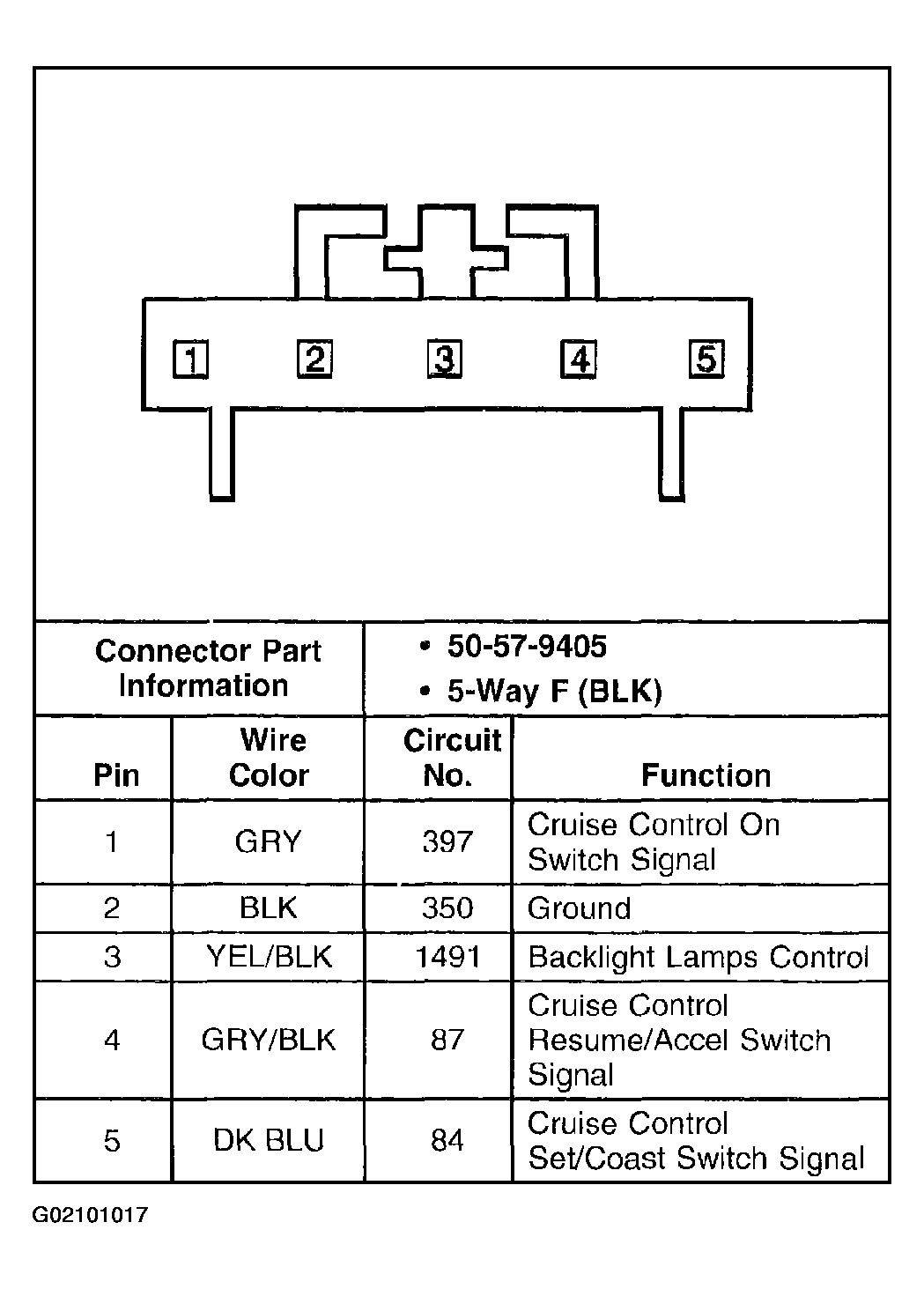

Fig 36: Identifying Steering Wheel Controls - Right C2 Connector

G02101017

Courtesy of GENERAL MOTORS CORP.
