Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

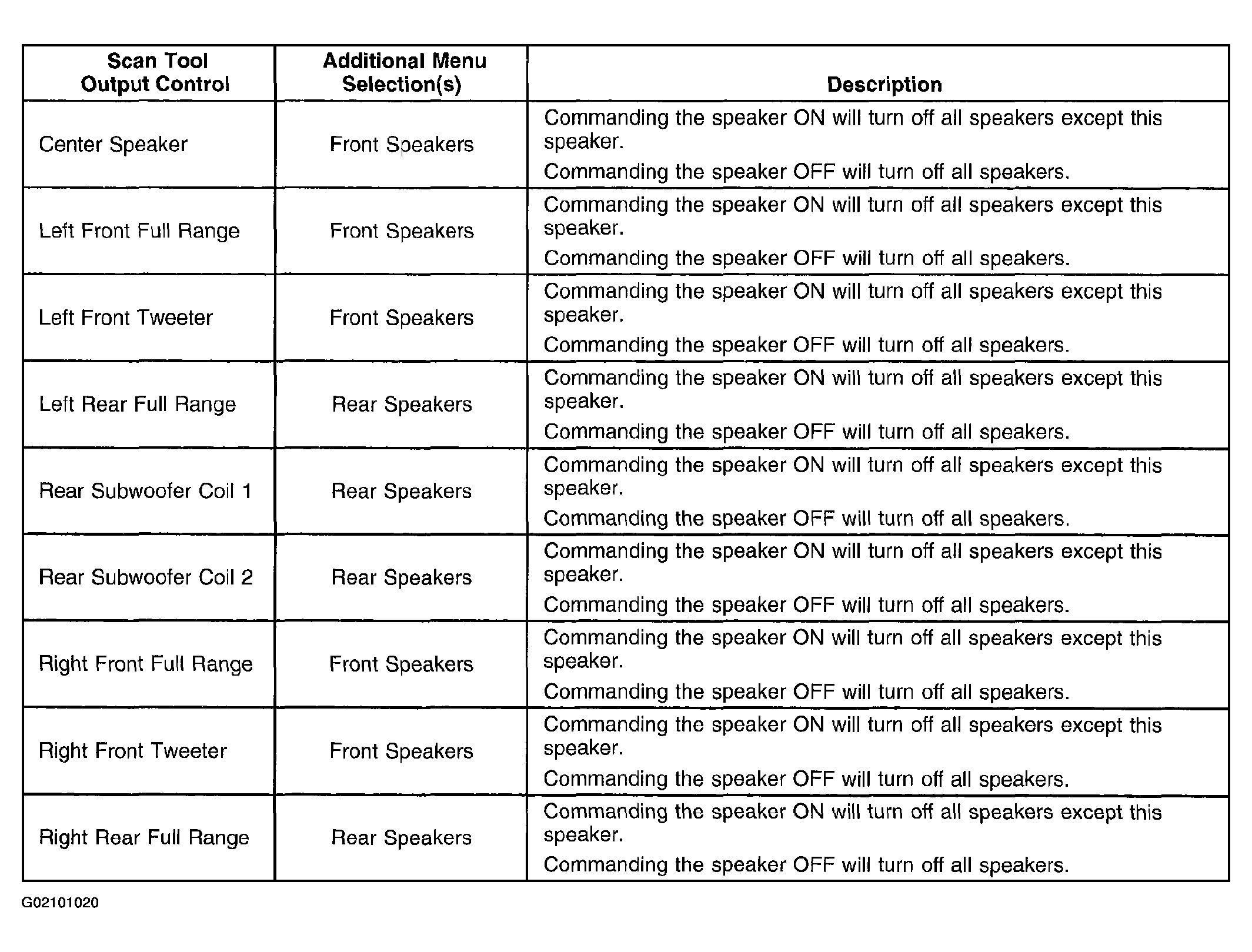

Fig 1: Bose Amplifier Scan Tool Output Control

Courtesy of GENERAL MOTORS CORP.

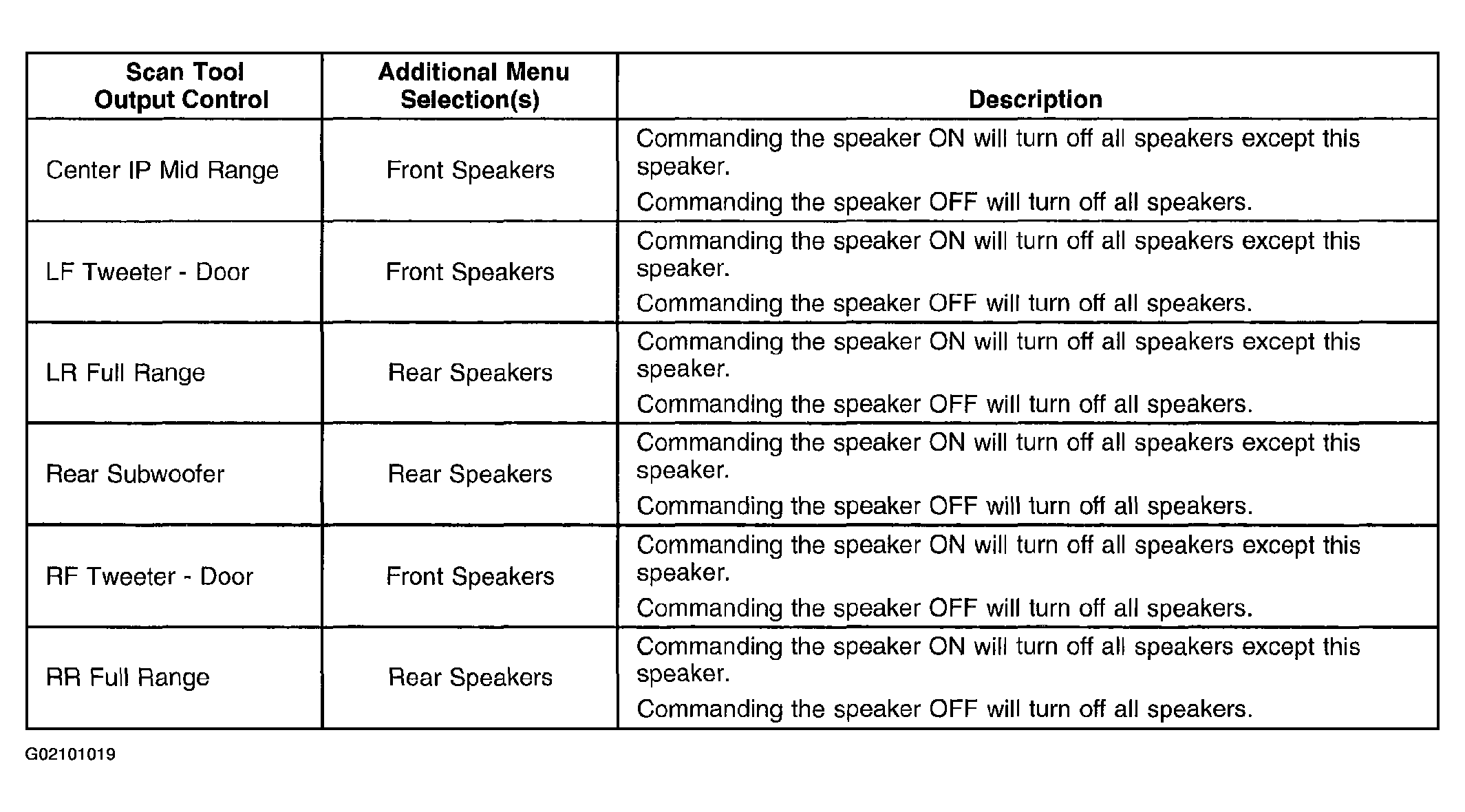

Fig 2: Delco Amplifier Scan Tool Output Control

Courtesy of GENERAL MOTORS CORP.

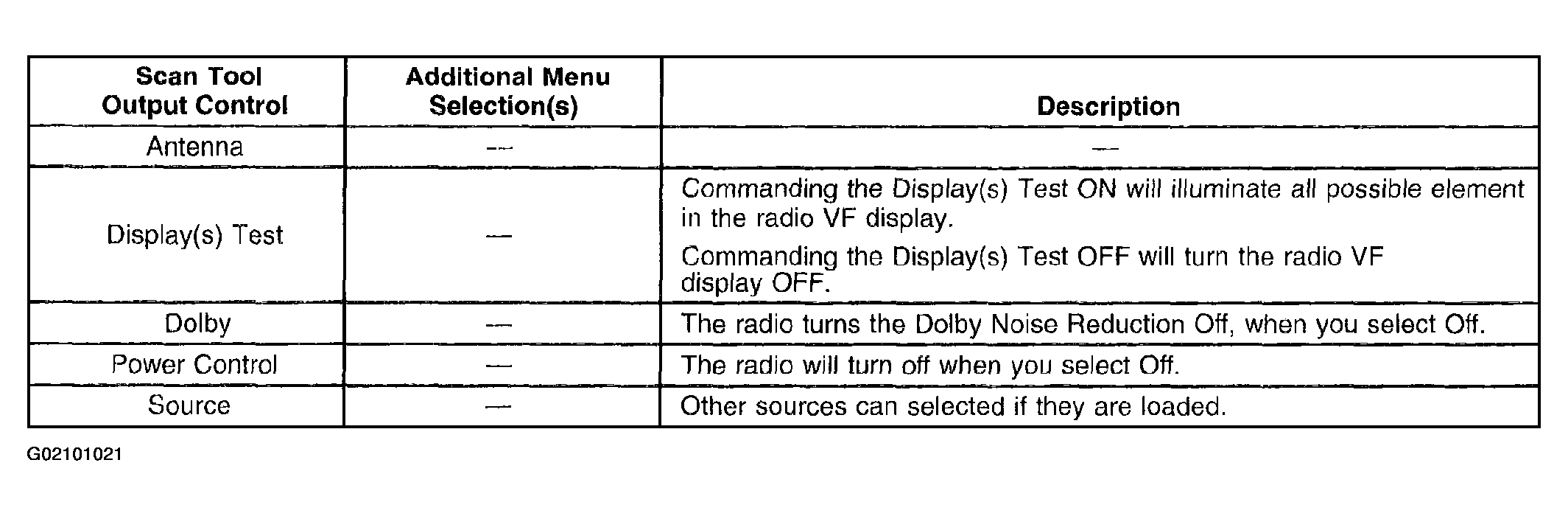

Fig 3: Radio Scan Tool Output Control

Courtesy of GENERAL MOTORS CORP.
