Removal Procedure
WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left rear sail panel. Refer to SAIL PANEL REPLACEMENT
- Remove the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT

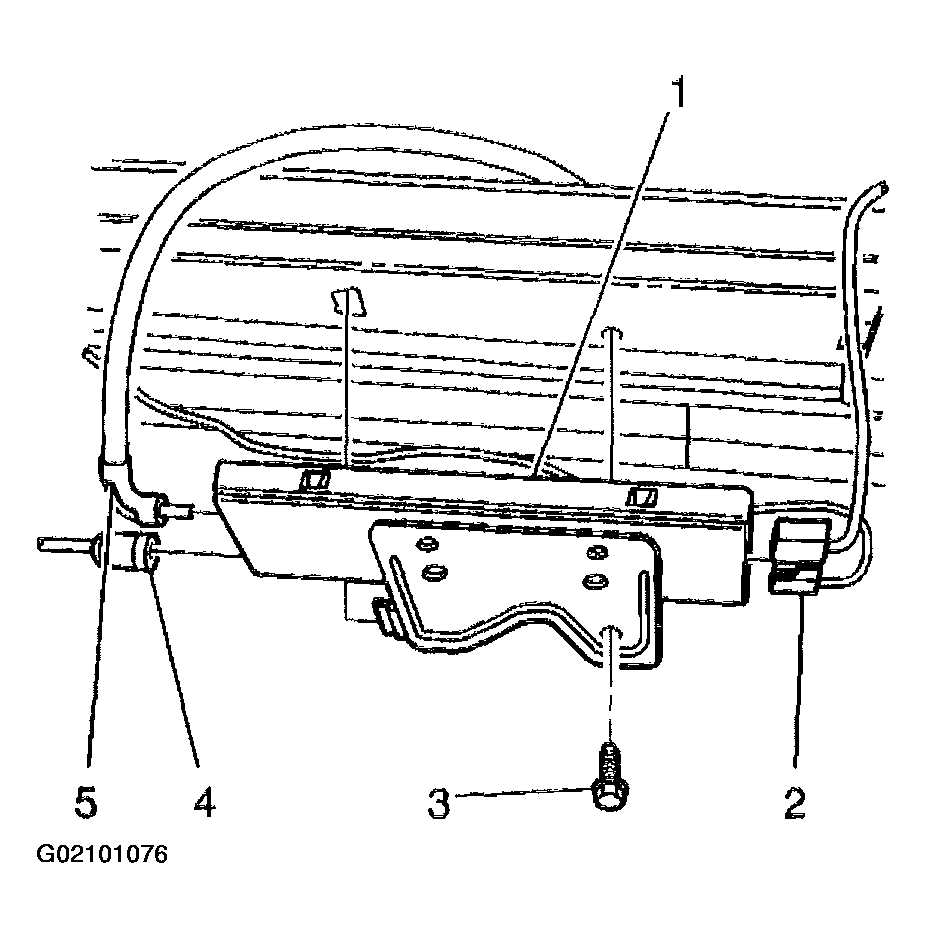

- Disconnect the electrical connectors (2) and the coaxial cable (4, 5) from the AM/FM antenna module (1).
- Remove the fastener (3) retaining the AM/FM antenna module to the roof beam.
- Remove the AM/FM antenna module (1).
