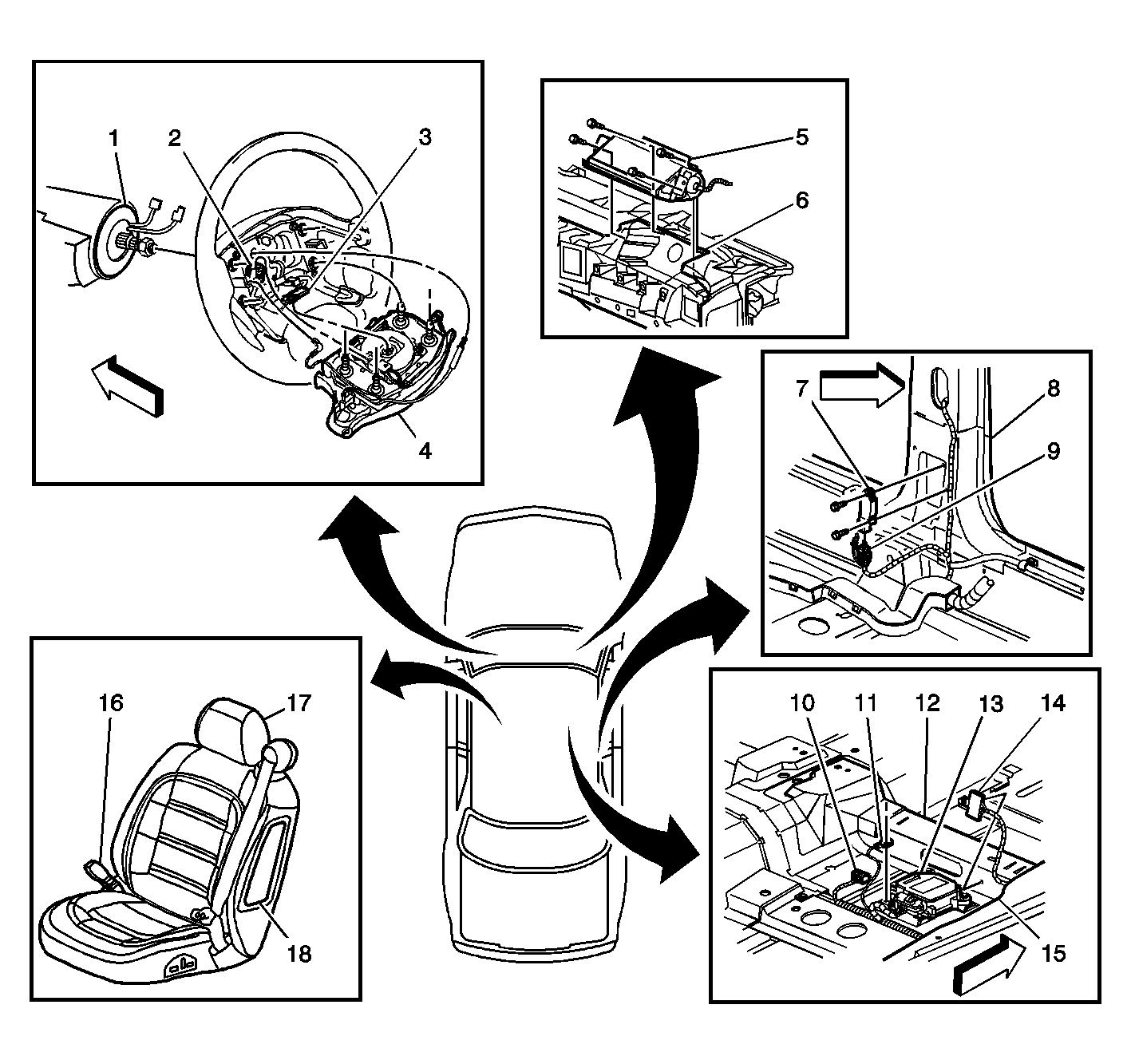

SIR Component Views
WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil |
| 2 | Steering Wheel Controls Connector |
| 3 | Inflatable Restraint Steering Wheel Module Connector |
| 4 | Inflatable Restraint Steering Wheel Module |
| 5 | Inflatable Restraint I/P Module |
| 6 | Instrument Panel |
| 7 | Inflatable Restraint Side Impact Sensor (SIS) - Left (Right Similar) |
| 8 | Driver Center Pillar (Passenger Similar) |
| 9 | Inflatable Restraint Side Impact Sensor (SIS) - Left Connector (Right Similar) |
| 10 | C307 |
| 11 | G306 |
| 12 | Number 2 Bar |
| 13 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 14 | SP302 G302 |
| 15 | Cover over SP308 |
| 16 | Seat Belt Pretensioner - LF with Seat Belt Switch Internal (RF Similar) |
| 17 | Driver Seat (Passenger Similar) |
| 18 | Inflatable Restraint Side Impact Module - LF (RF Similar) |
