Driver Door Module (DDM) Connector End View C3

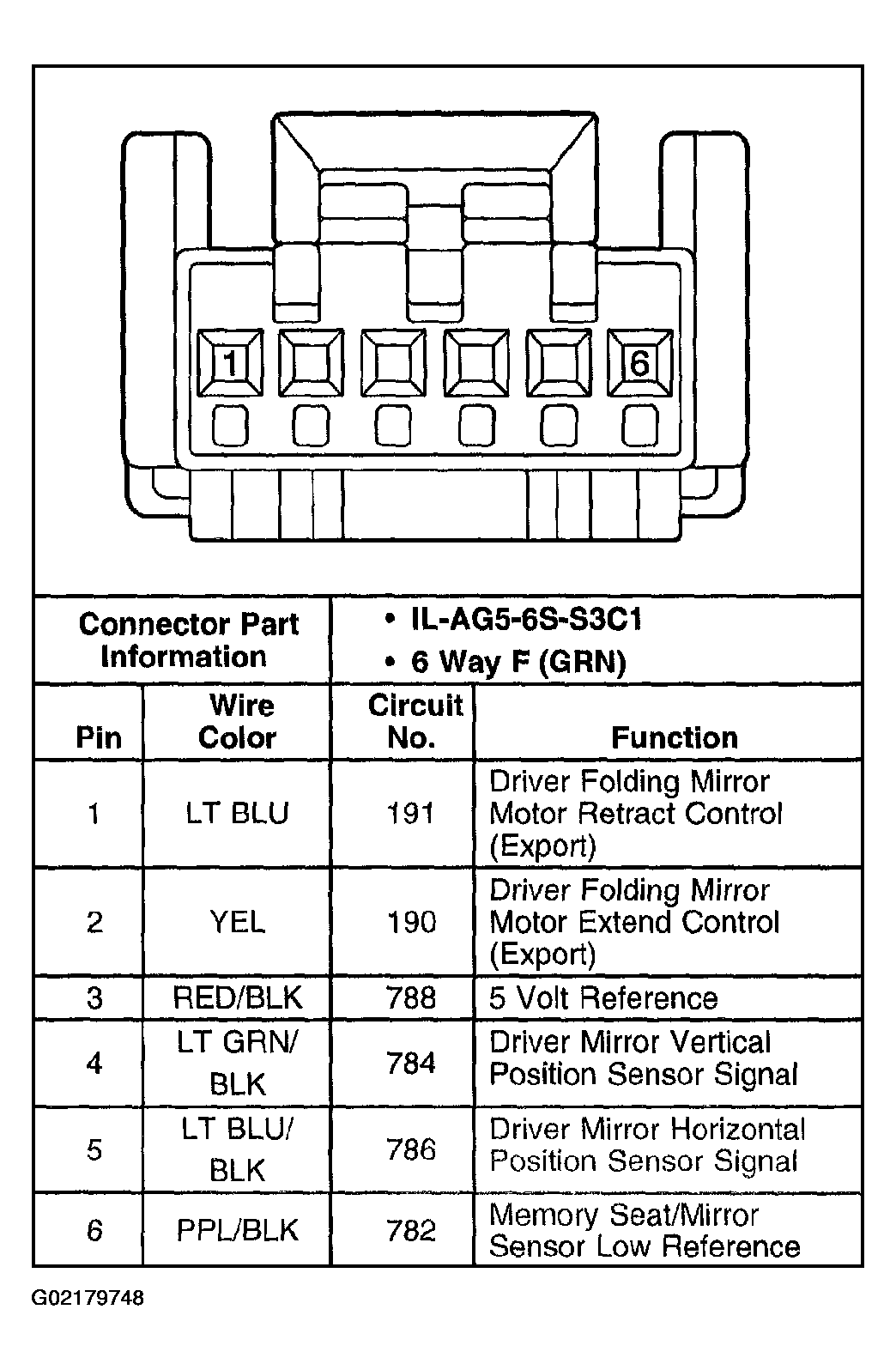

Fig 1: Driver Door Module (DDM C3
G02179748Courtesy of GENERAL MOTORS CORP.
