Electronic Suspension Control (ESC) Module Connector End View C3
Electronic Suspension Control (ESC) Module Connector End View C3

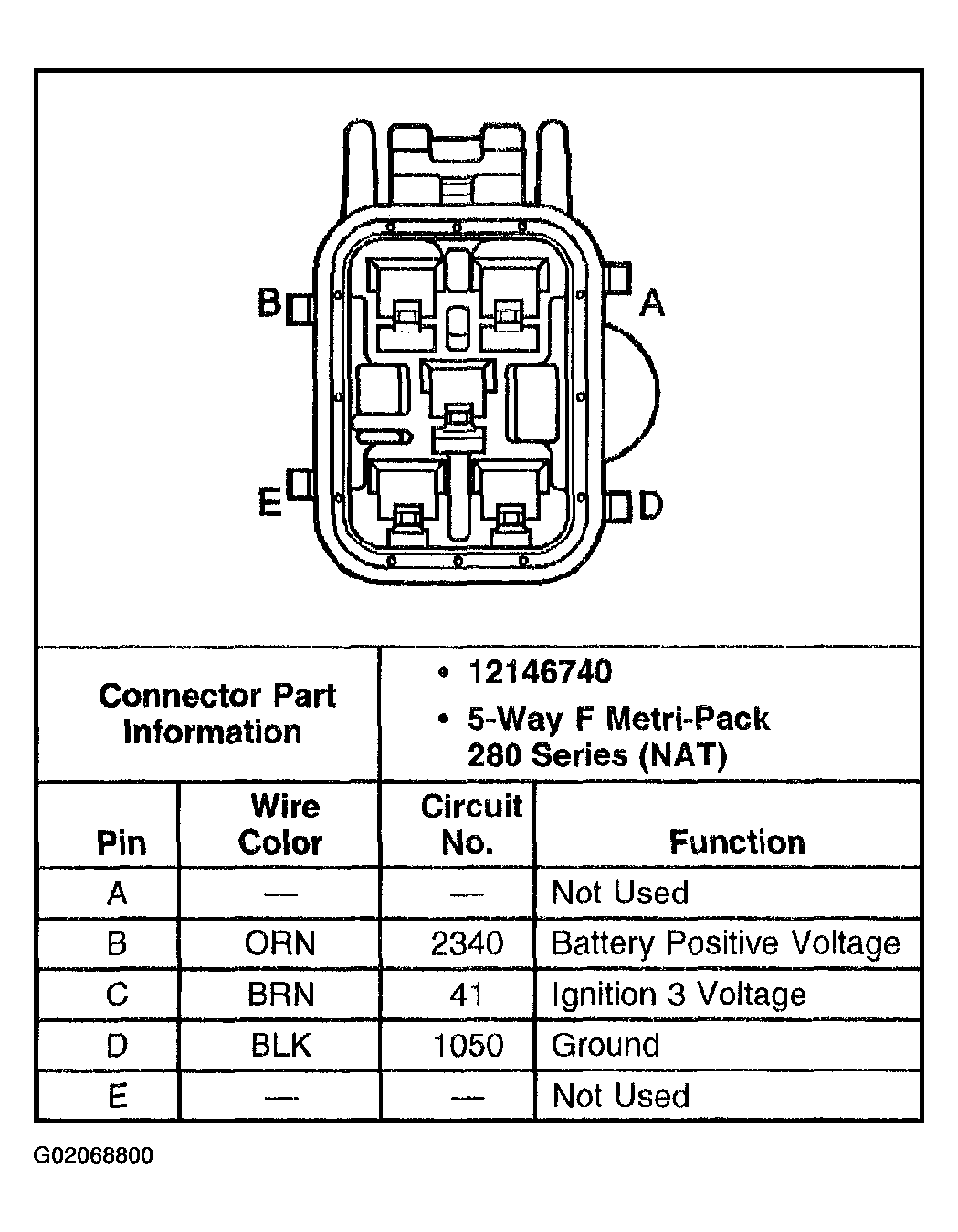

Fig 1: Electronic Suspension Control (ESC) Module C3
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
