Sunload Sensor Connector End View - Right
Sunload Sensor Connector End View - Right

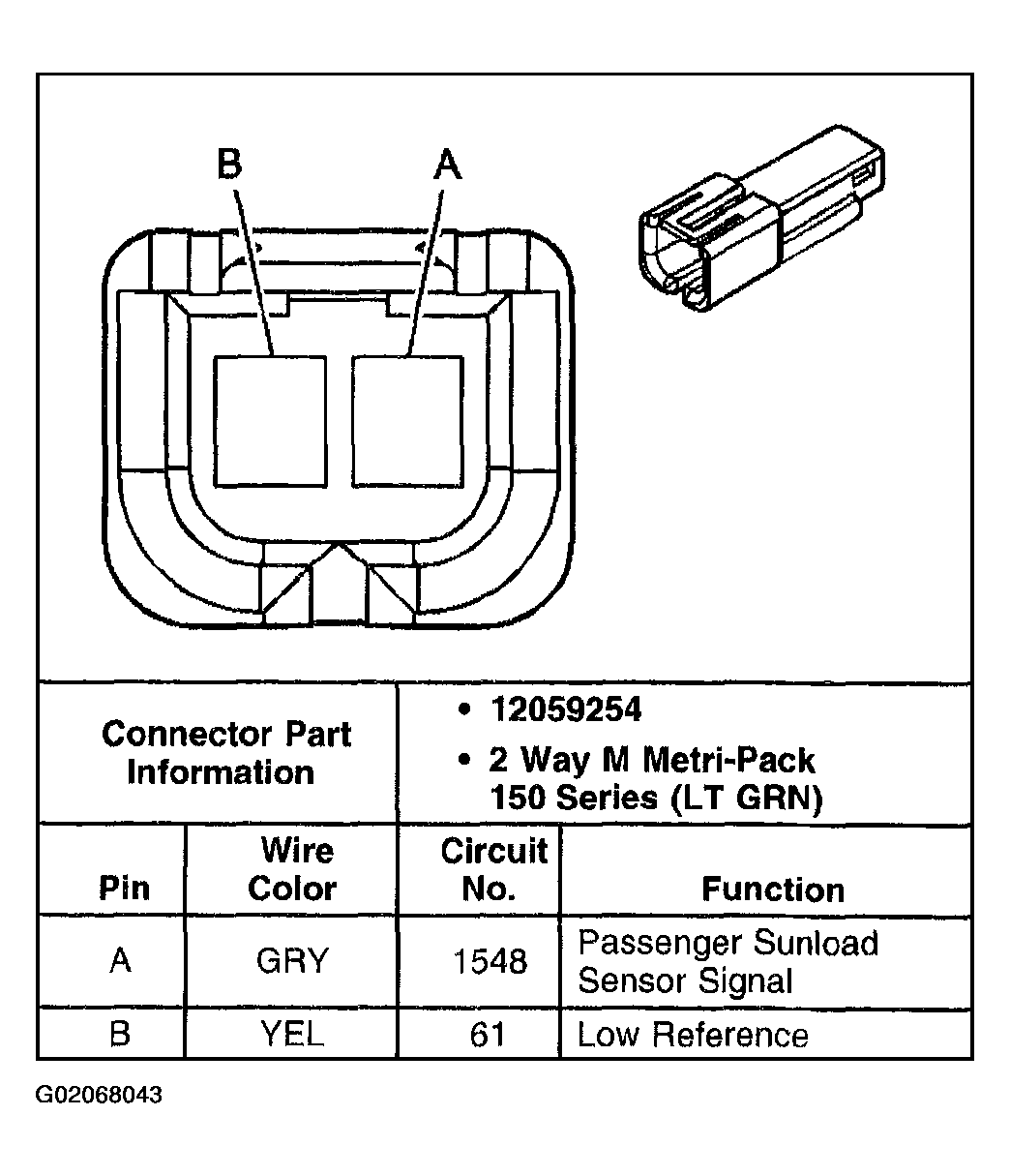

Fig 1: Sunload Sensor - Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
