Seat Belt Component Views
Seat Belt Component Views

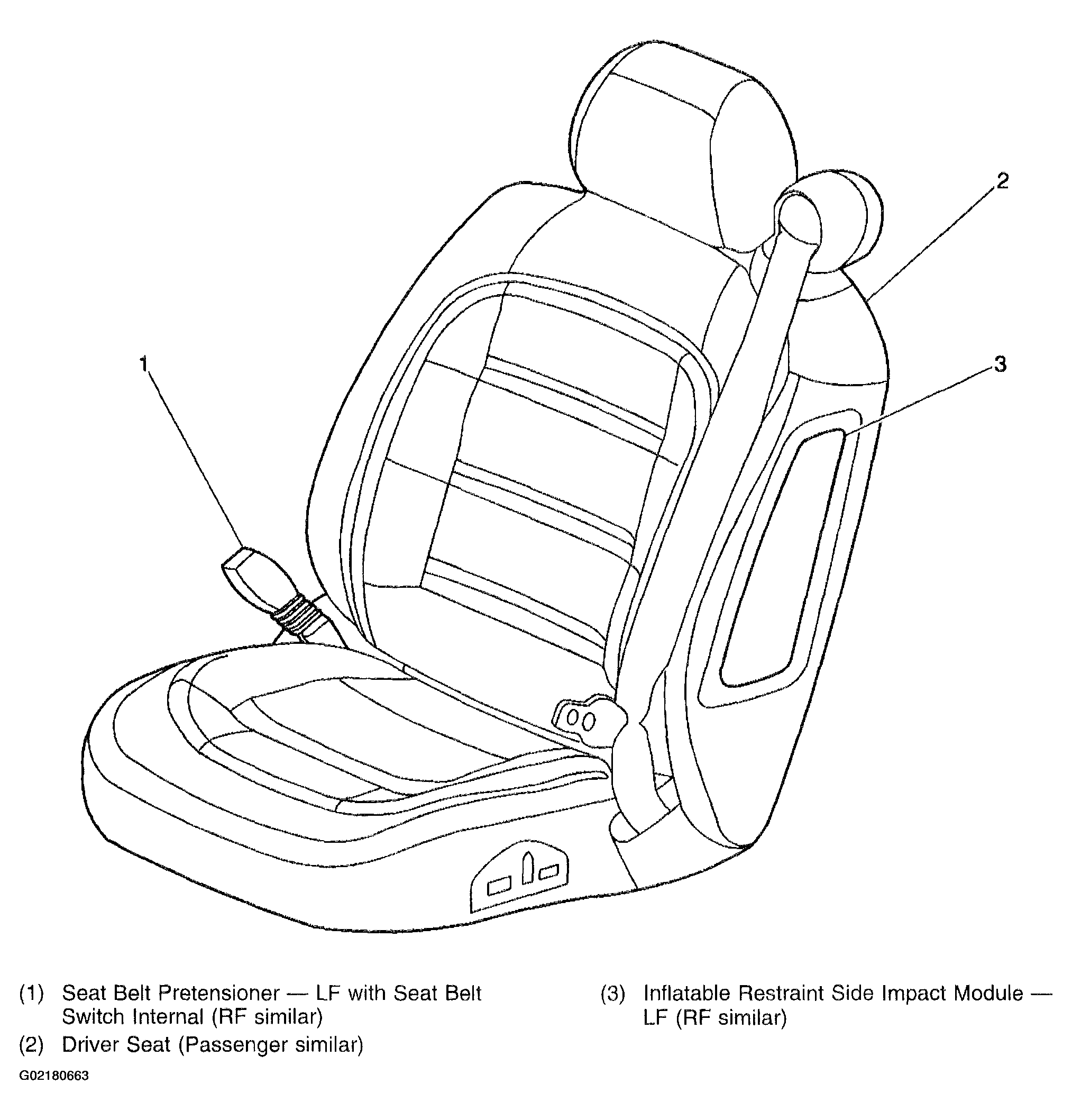

Fig 1: Passenger Compartment, On Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
