Steering Wheel Position Sensor

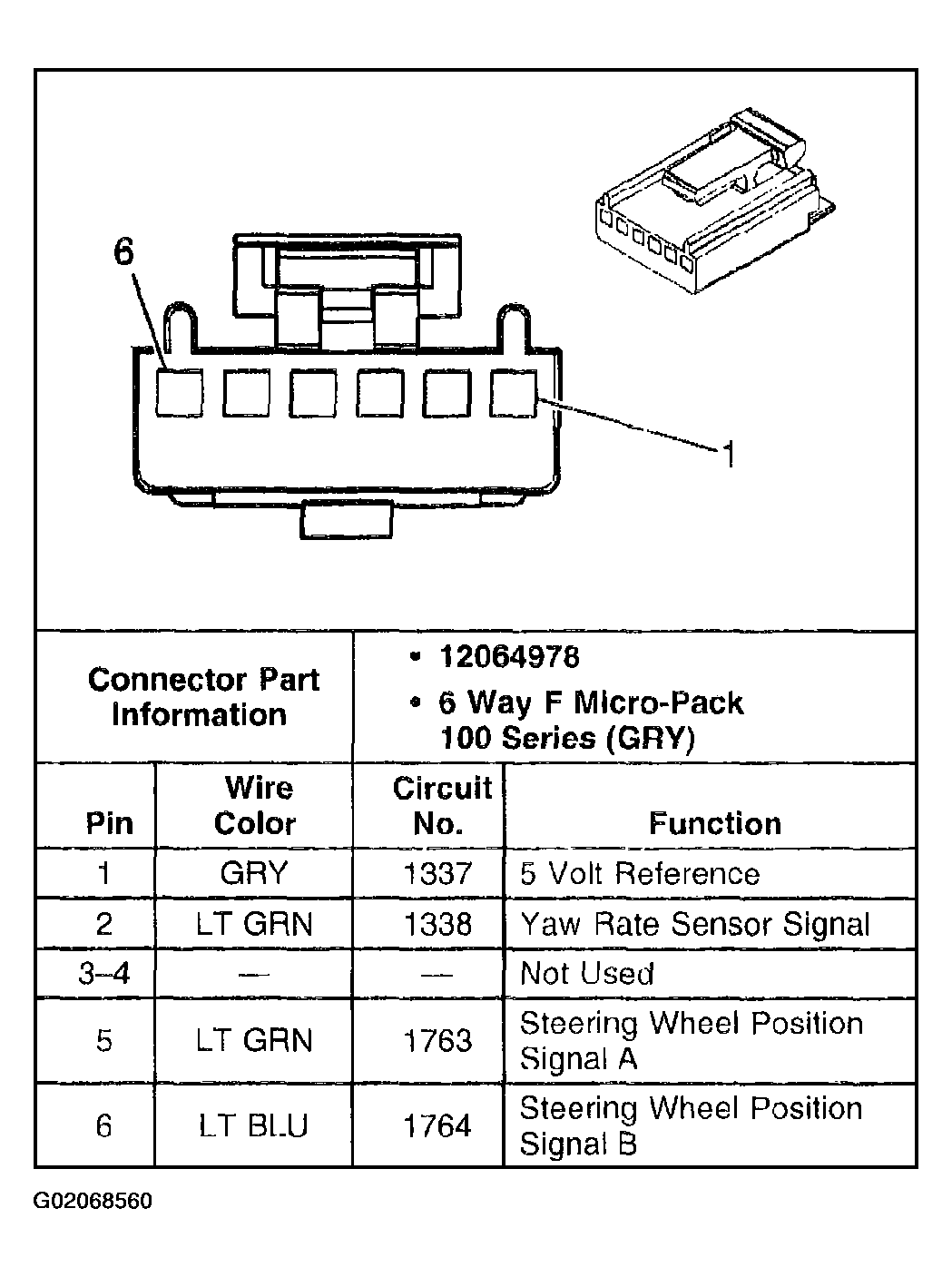

Fig 1: Steering Wheel Position Sensor Connector End View
G02068560Courtesy of GENERAL MOTORS CORP.
