Installation Procedure

  1. Install the power steering gear heat shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering gear heat shield mounting bolts.

    Tighten

    Tighten the power steering gear heat shield mounting bolts to 9 N.m (79 lb in).

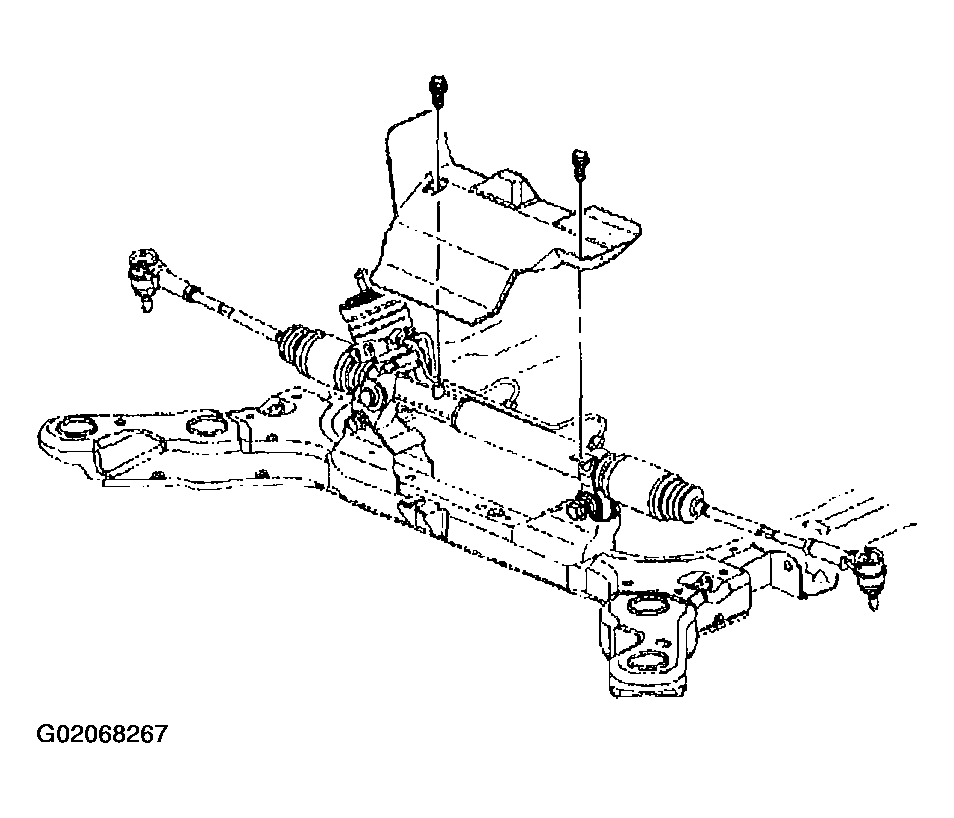

    Fig 1: Installing Power Steering Gear Heat Shield & Mounting Bolts
    G02068267Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical harness clip to the power steering gear heat shield.
  4. Rotate the stabilizer shaft into position.
  5. Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT  in Front Suspension.
  6. Lower the vehicle.
