Installation Procedure

  1. Install the power steering pump pulley to the power steering pump shaft.
  2. Install J 25033-C  to the power steering pump shaft.
  3. Using J 25033-C  install the power steering pulley to the power steering pump.

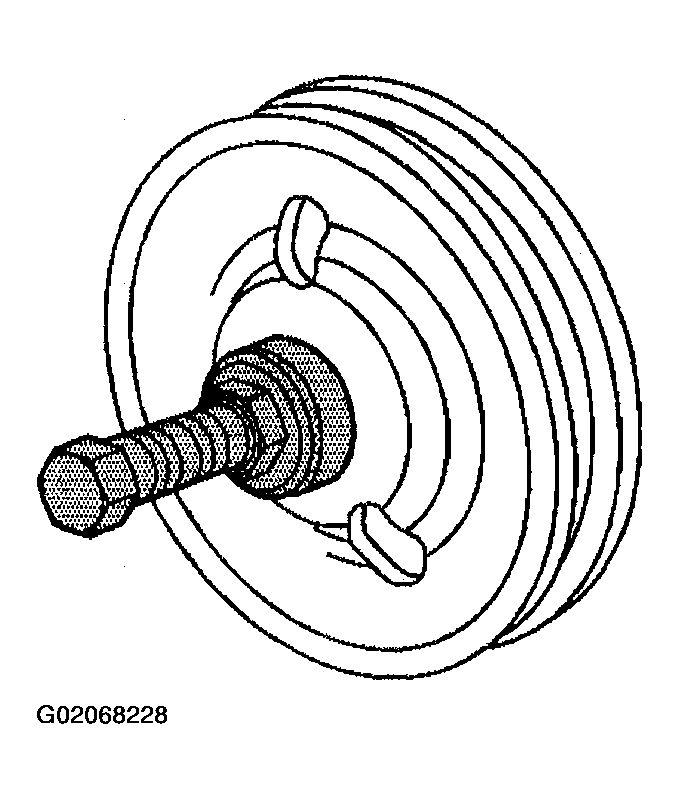

    Fig 1: View Of J 25033-C On Power Steering Pump Pulley
    G02068228Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.

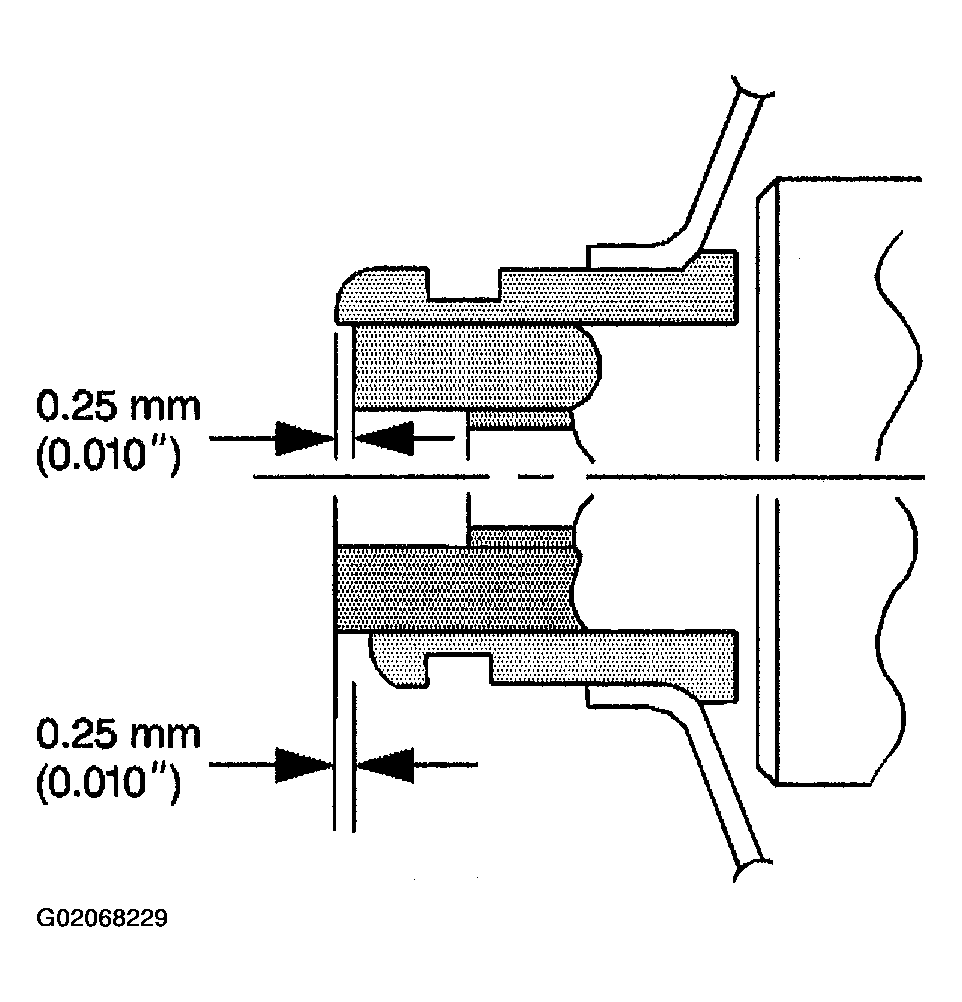

    Fig 2: Identifying Axial Tolerance Of Power Steering Pulley
    G02068229Courtesy of GENERAL MOTORS CORP.
  5. Install the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT   .
