Automatic Transaxle - 4T80-E
›
Component Locator
›
Automatic Transmission Electronic Component Views
Automatic Transmission Electronic Component Views

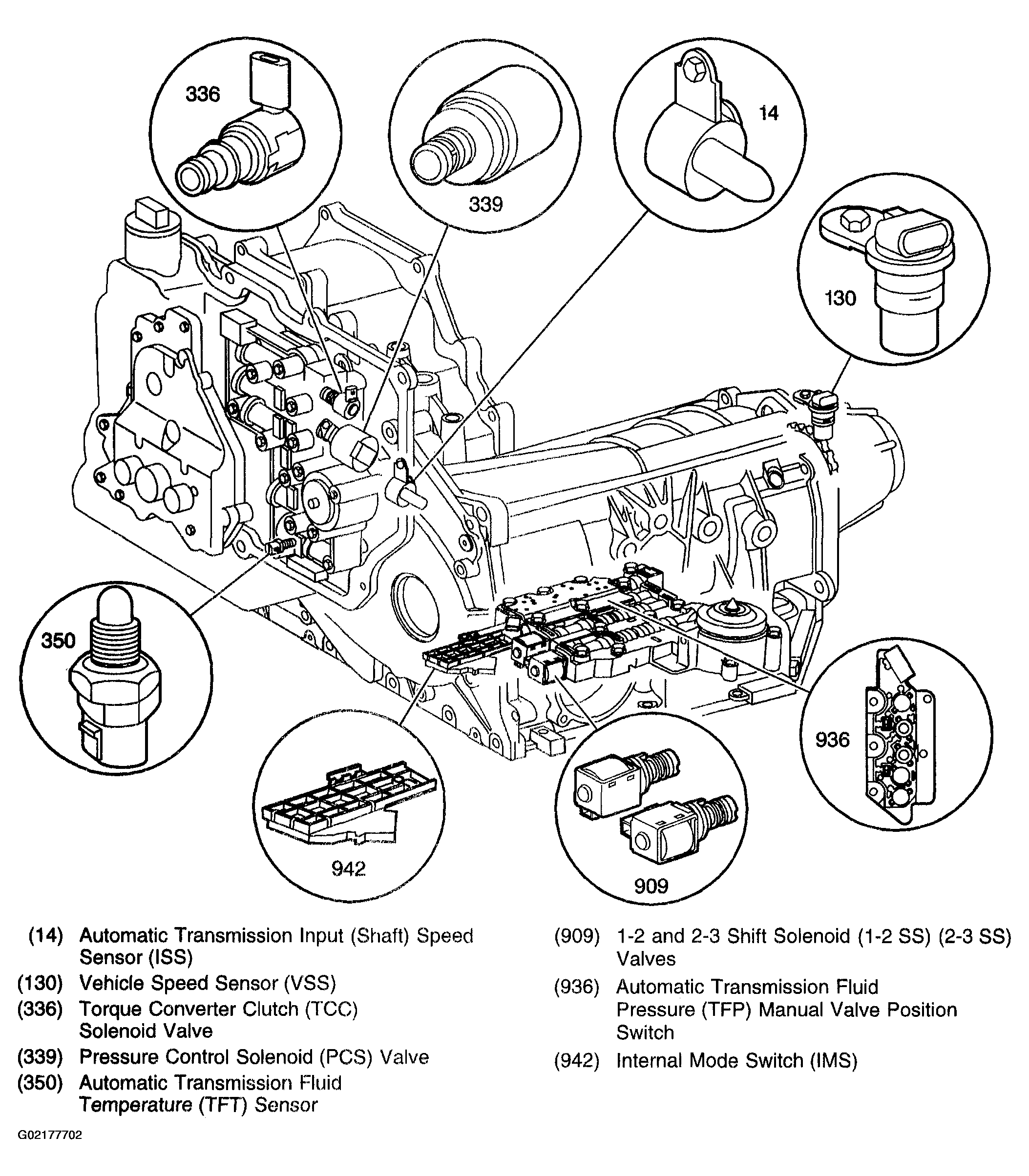

Fig 1: Electronic Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
