Automatic Transmission Internal Connector End Views

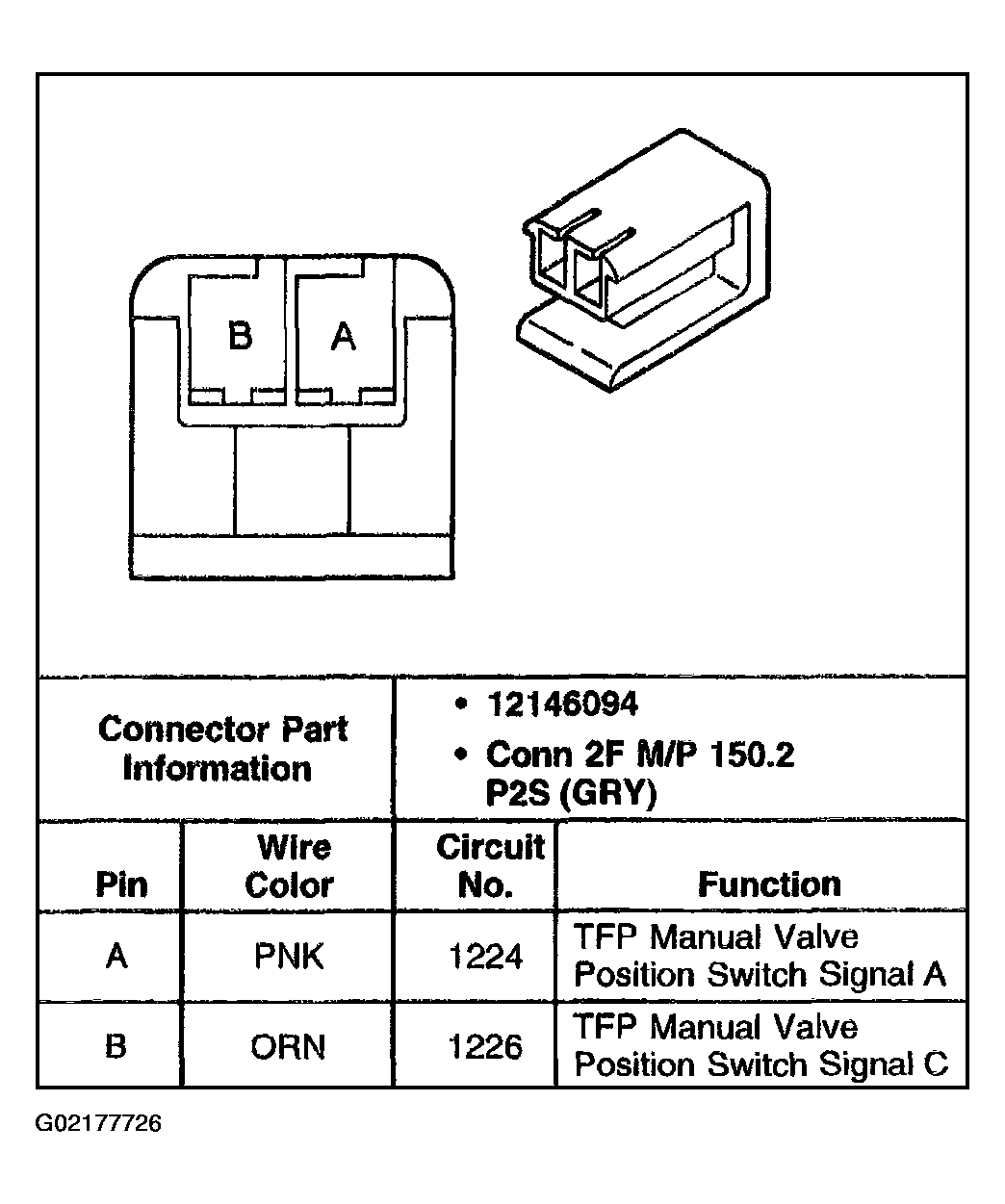

Fig 1: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side Connector End View
G02177726Courtesy of GENERAL MOTORS CORP.

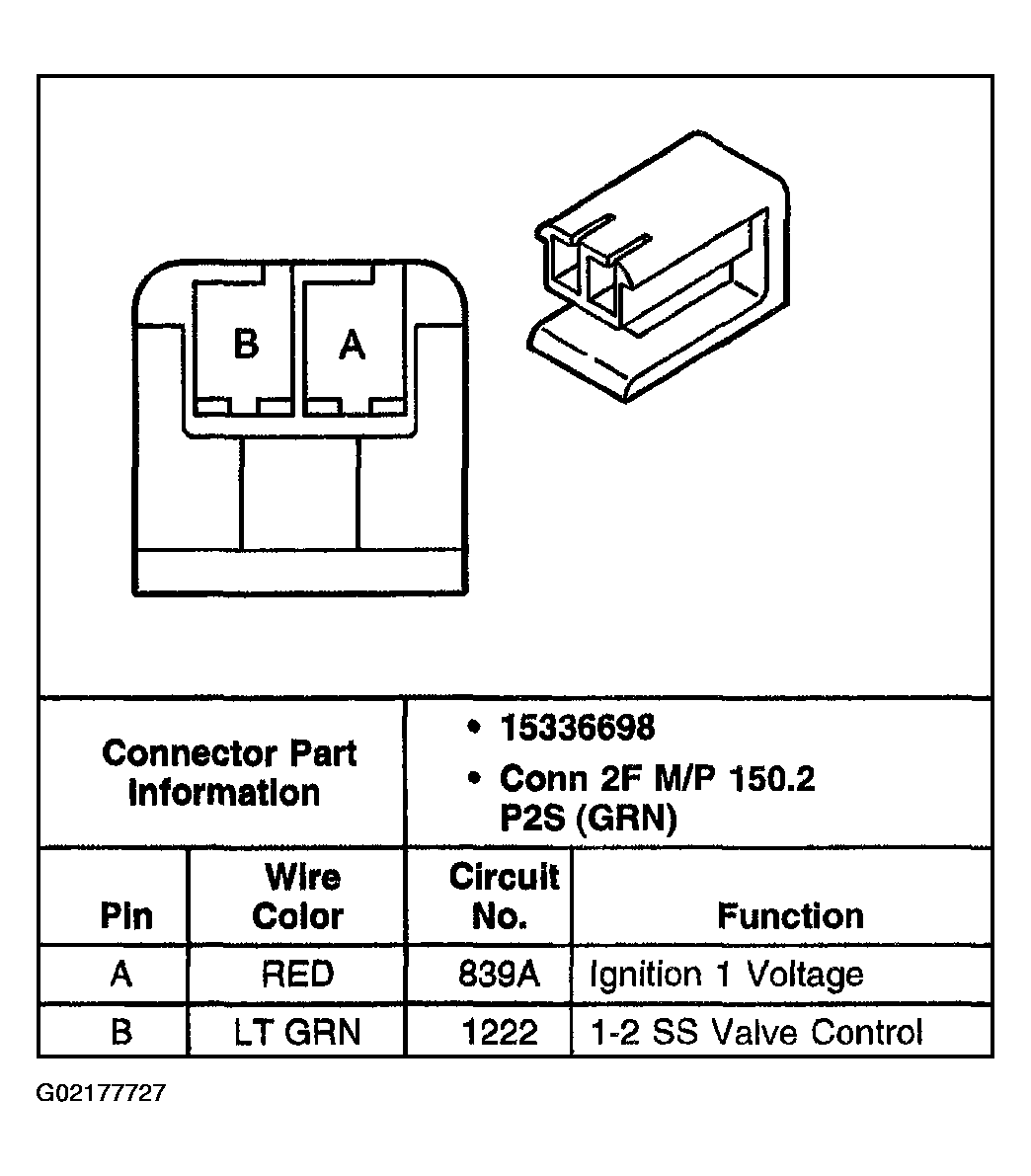

Fig 2: 1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side Connector End View
G02177727Courtesy of GENERAL MOTORS CORP.

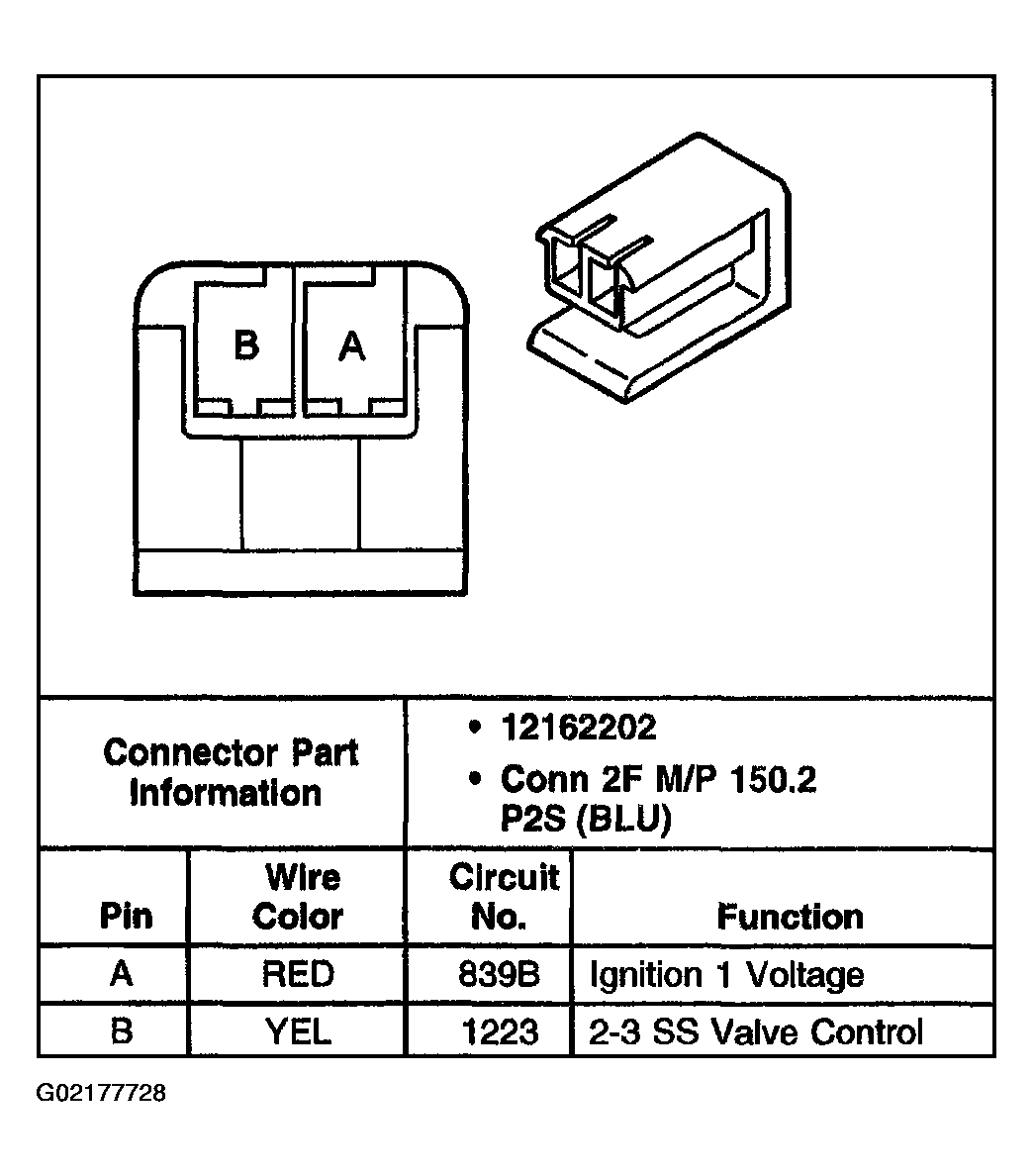

Fig 3: 2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side Connector End View
G02177728Courtesy of GENERAL MOTORS CORP.

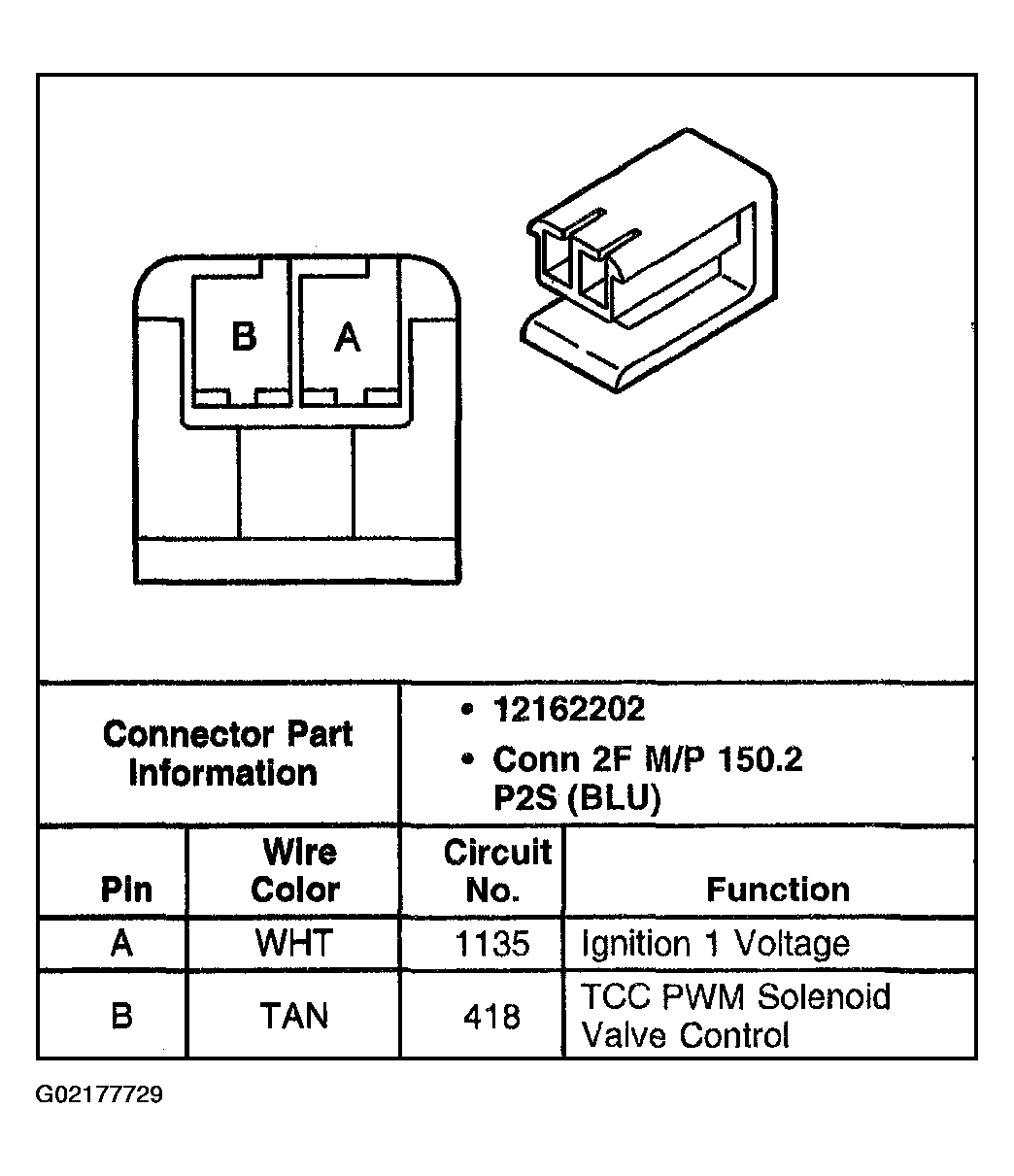

Fig 4: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side Connector End View
G02177729Courtesy of GENERAL MOTORS CORP.

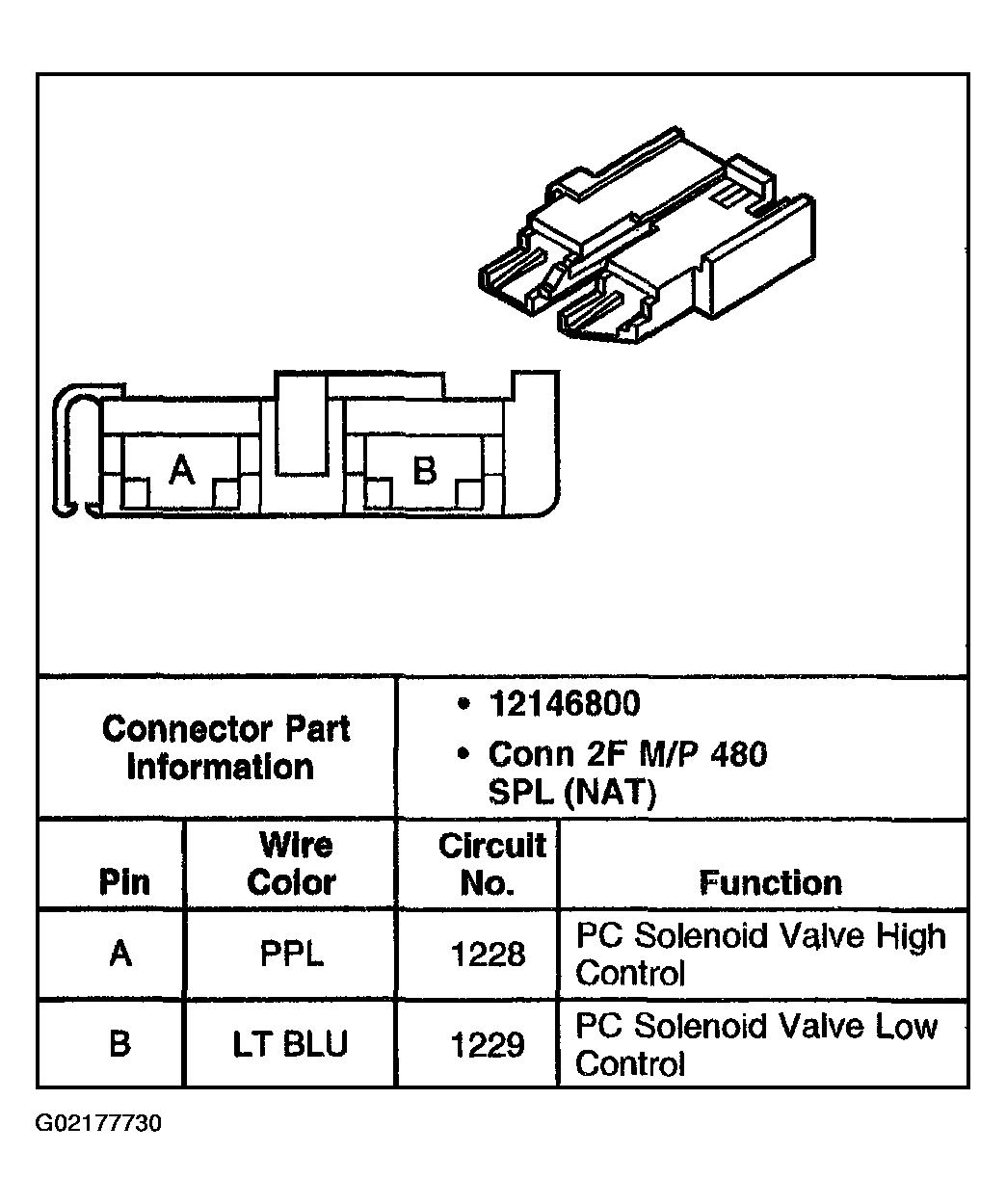

Fig 5: Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side Connector End View
G02177730Courtesy of GENERAL MOTORS CORP.

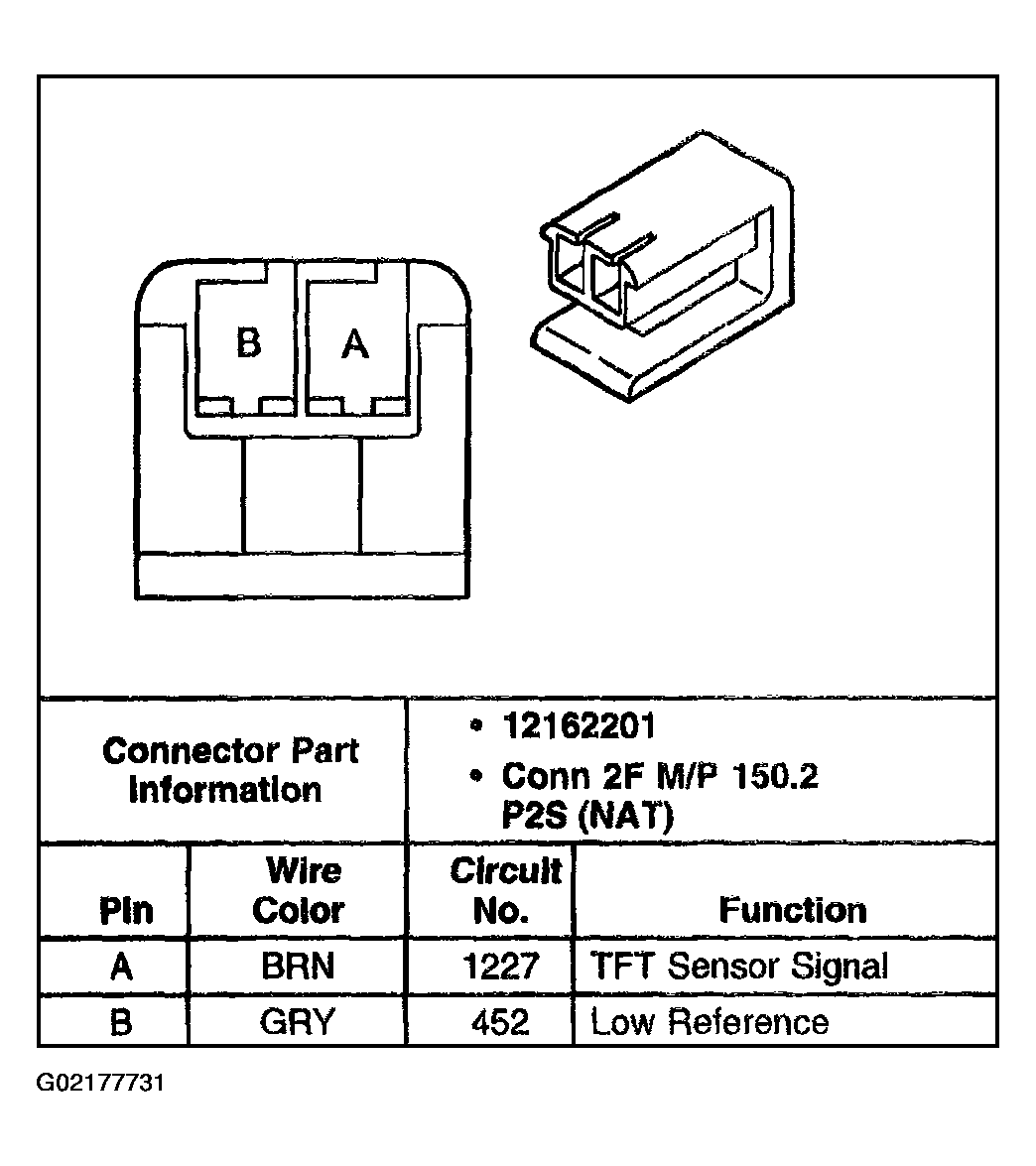

Fig 6: Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side Connector End View
G02177731Courtesy of GENERAL MOTORS CORP.

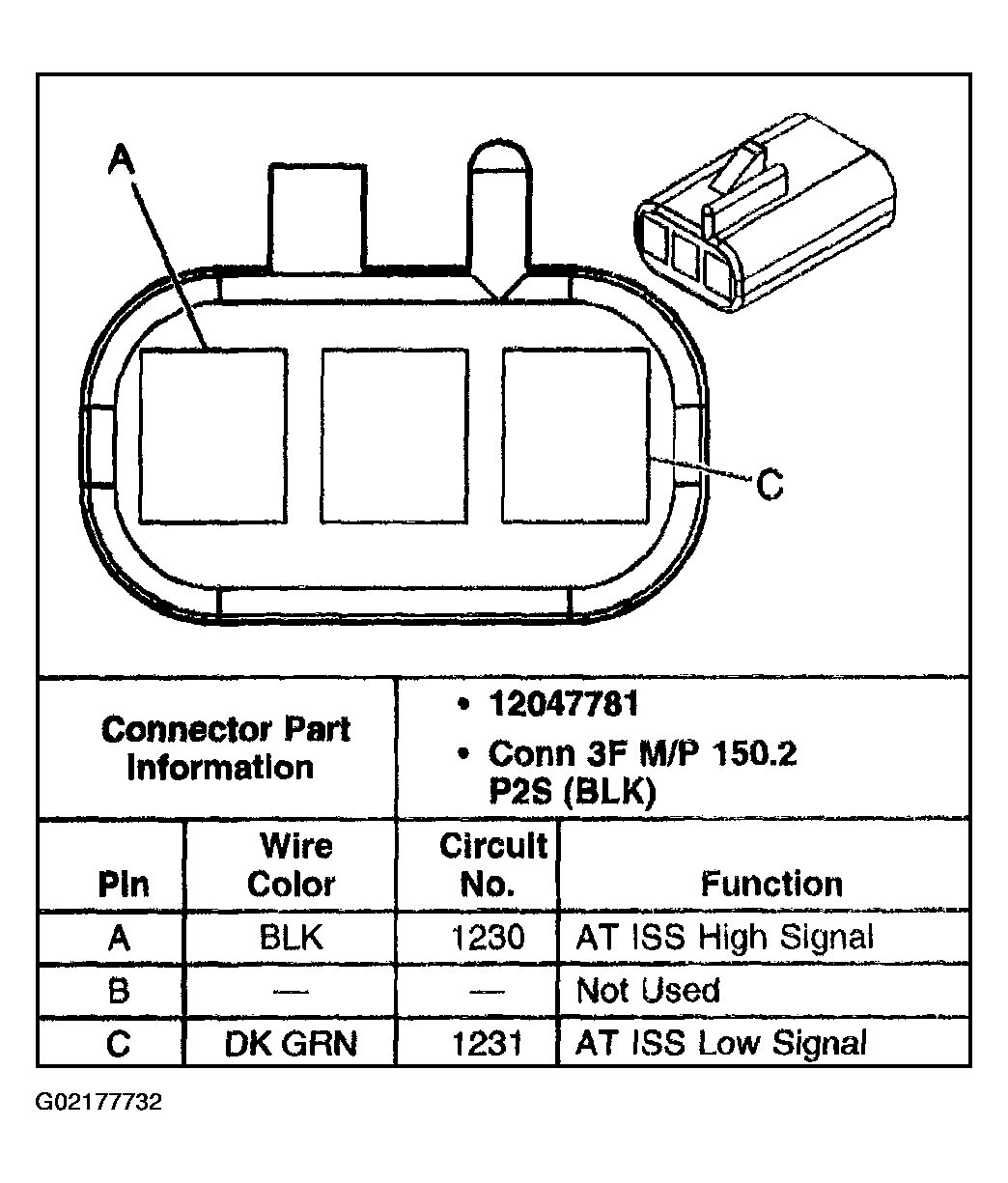

Fig 7: Automatic Transmission Input (Shaft) Speed Sensor (AT ISS) Connector, Wiring Harness Side Connector End View
G02177732Courtesy of GENERAL MOTORS CORP.

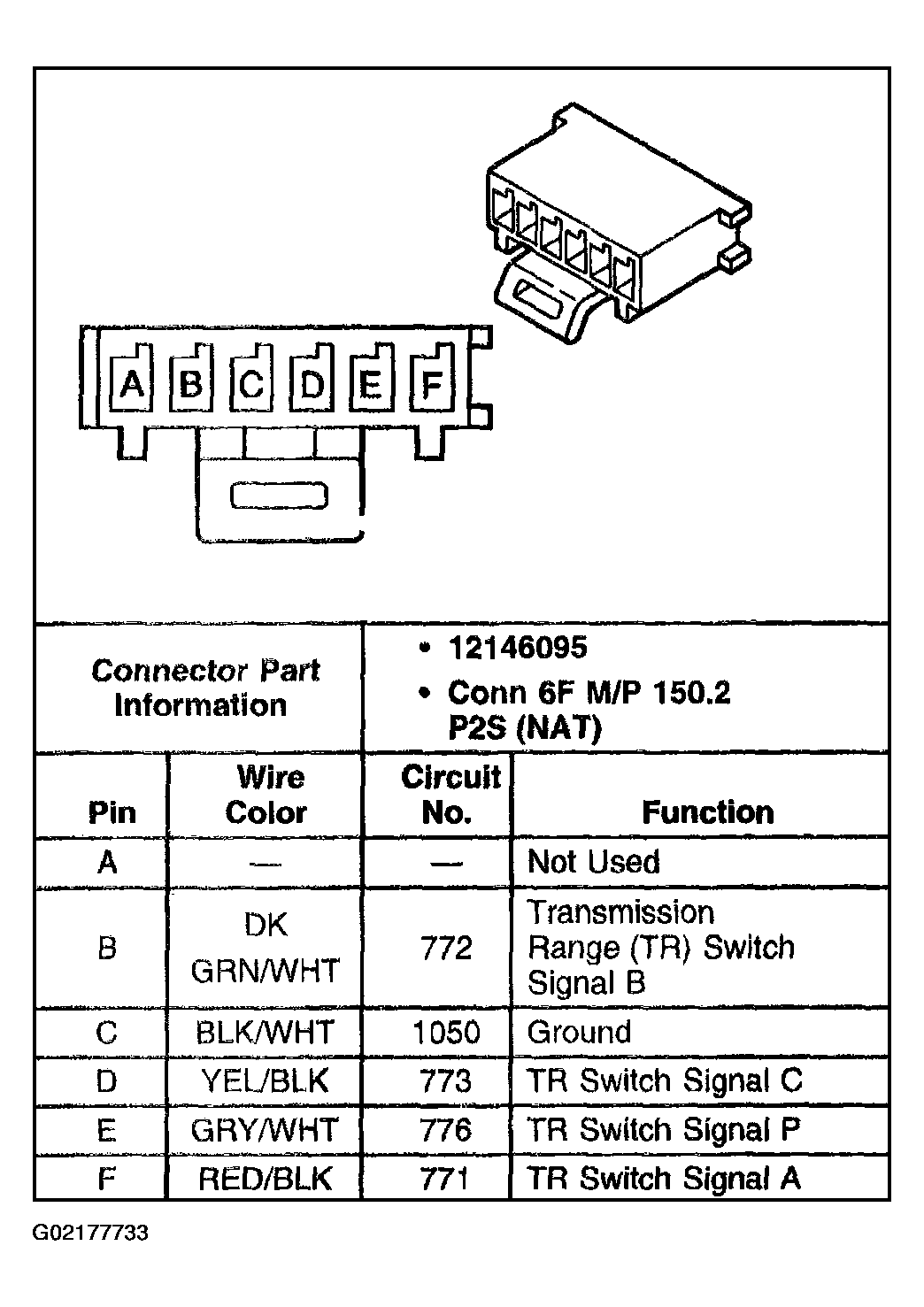

Fig 8: Internal Mode Switch (IMS) Connector, Wiring Harness Side Connector End View
G02177733Courtesy of GENERAL MOTORS CORP.

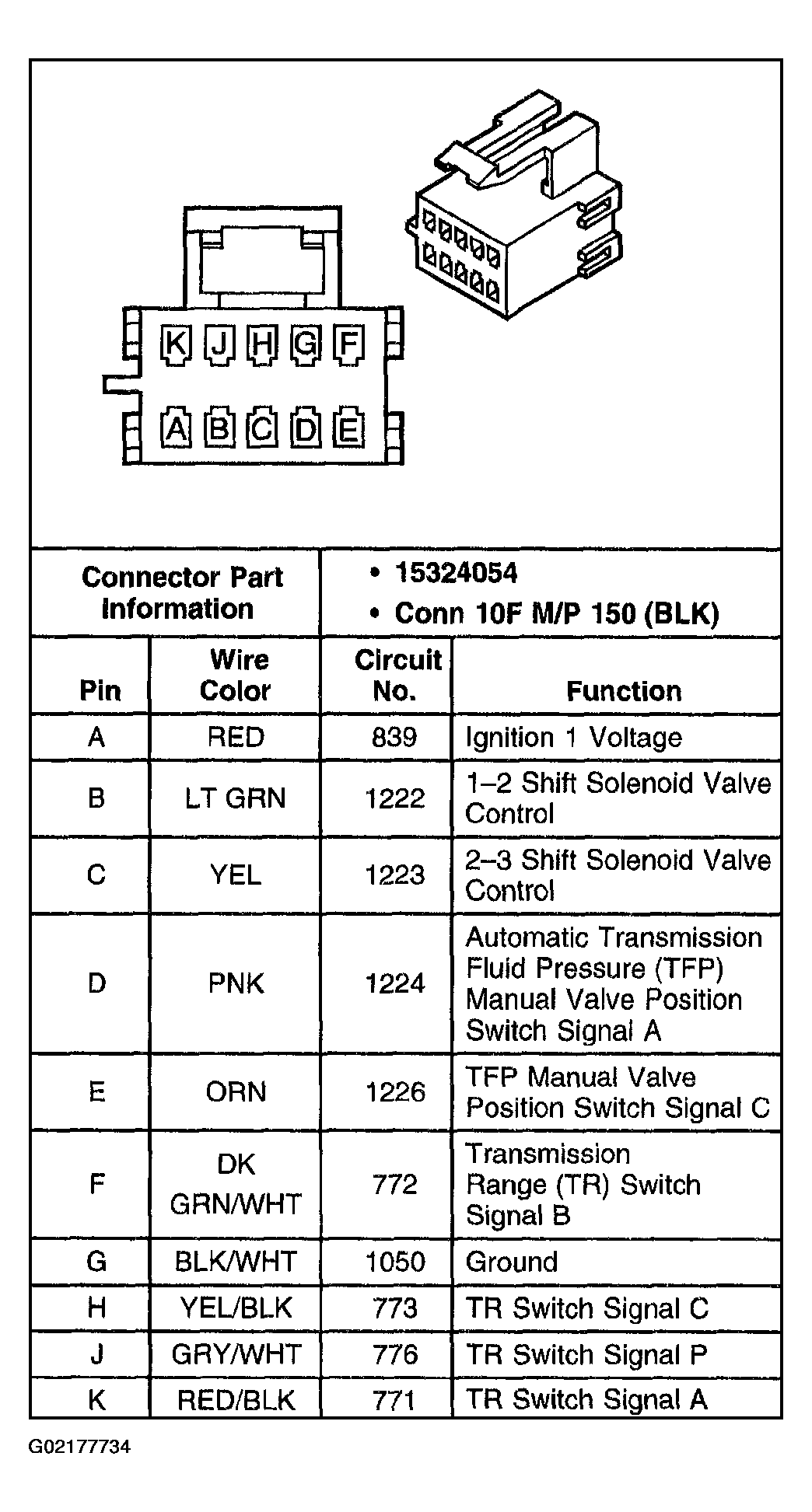

Fig 9: Inline Connector, Automatic Transmission Wiring Harness Assembly Side Connector End View
G02177734Courtesy of GENERAL MOTORS CORP.

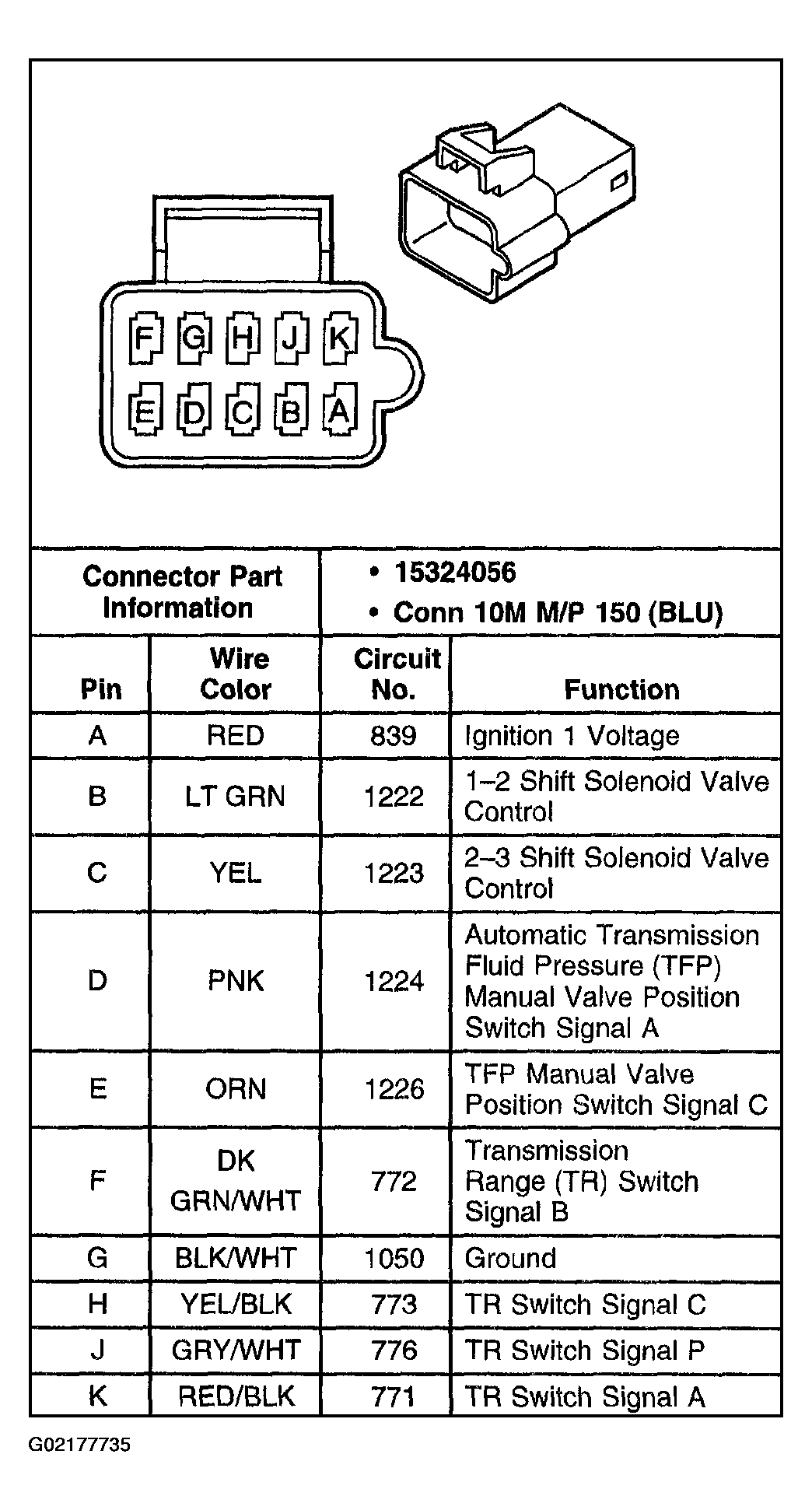

Fig 10: Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side Connector End View
G02177735Courtesy of GENERAL MOTORS CORP.
