Automatic Transmission Related Connector End Views

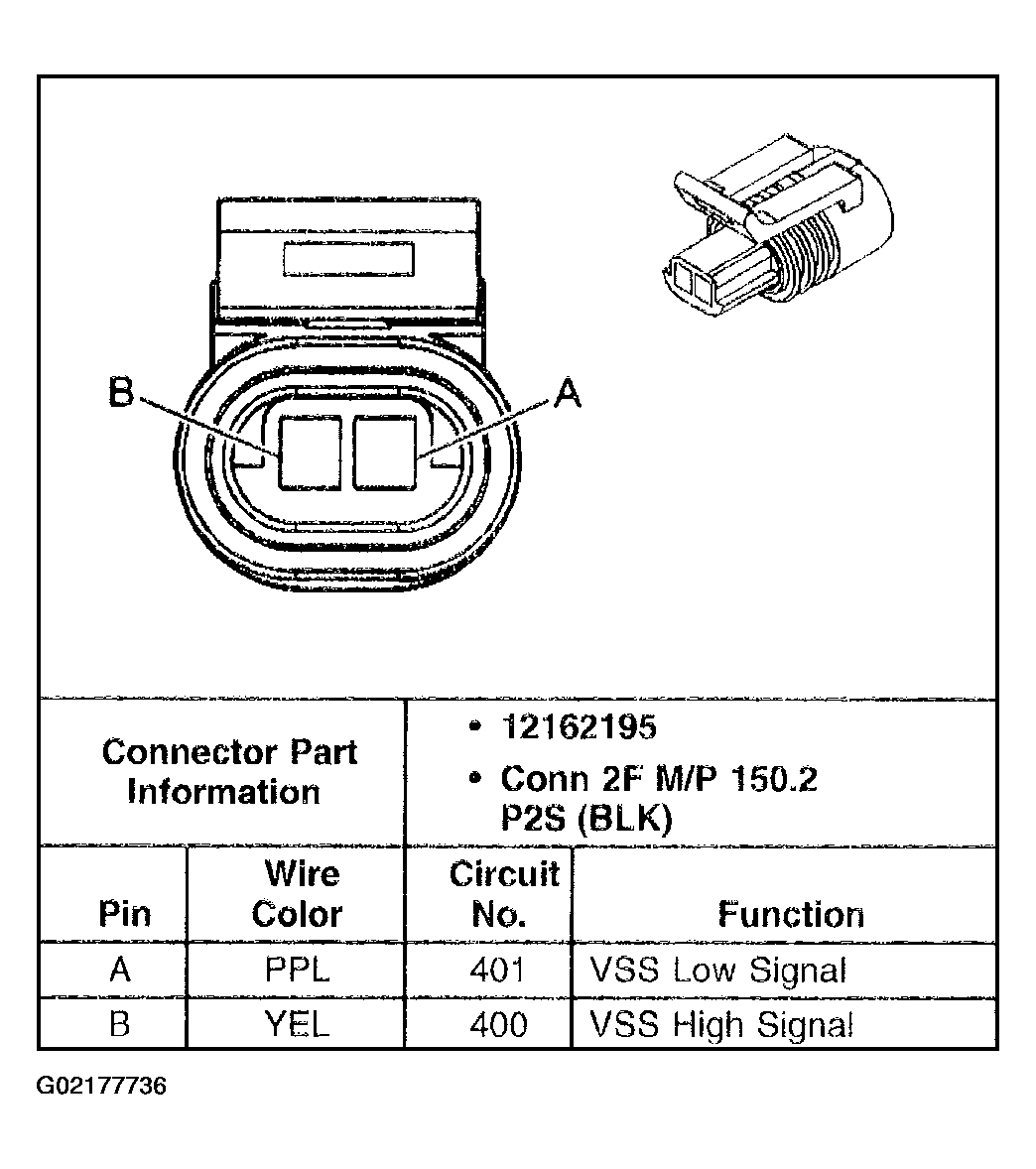

Fig 1: Vehicle Speed Sensor (VSS) Connector, Wiring Harness Side Connector End View
G02177736Courtesy of GENERAL MOTORS CORP.

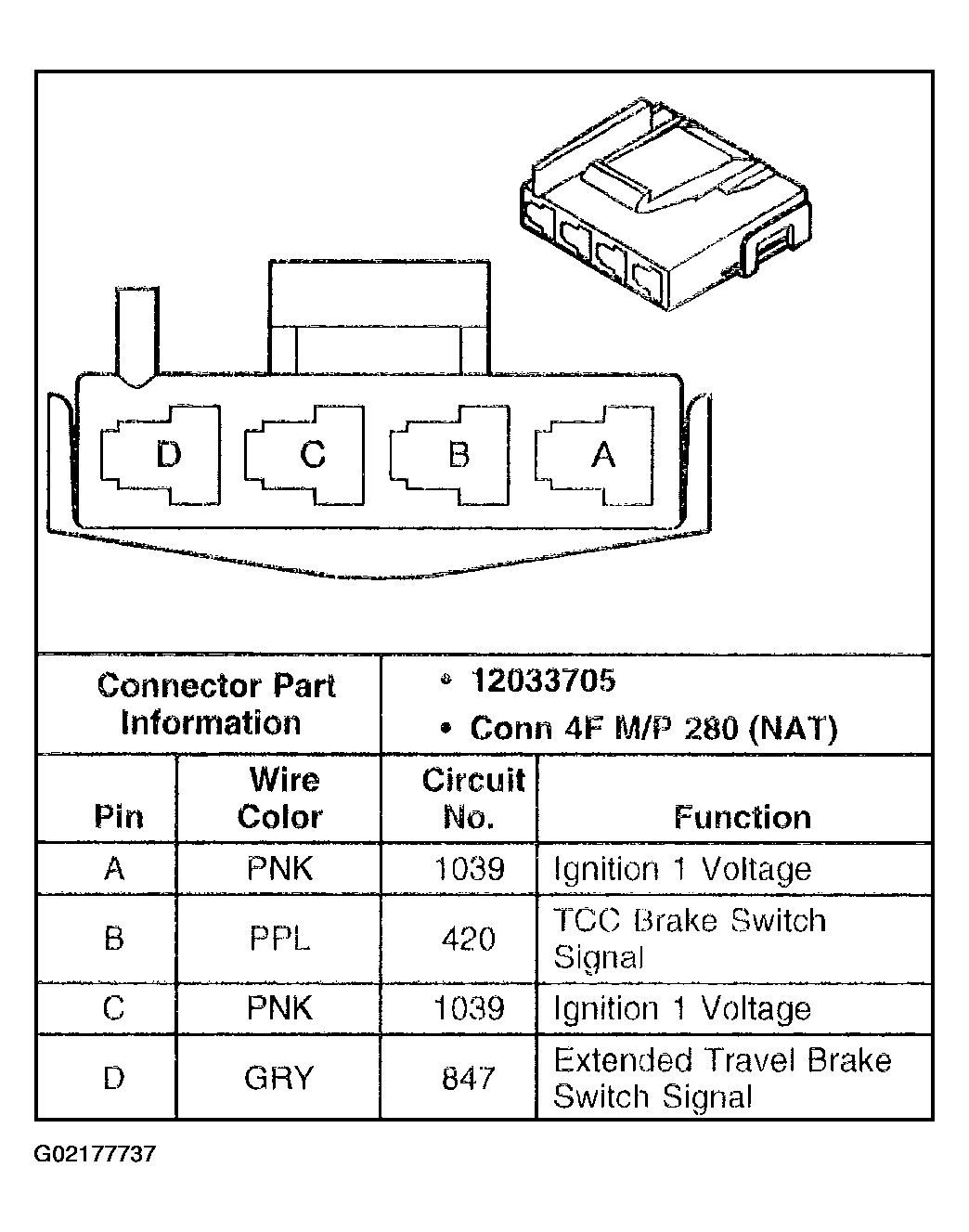

Fig 2: ABS/TCC Brake Switch Connector, Wiring Harness Side Connector End View
G02177737Courtesy of GENERAL MOTORS CORP.
