Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the oil pressure test plug (1).

    Tighten

    Tighten the oil pressure test plug to 22 N.m (16 lb ft).

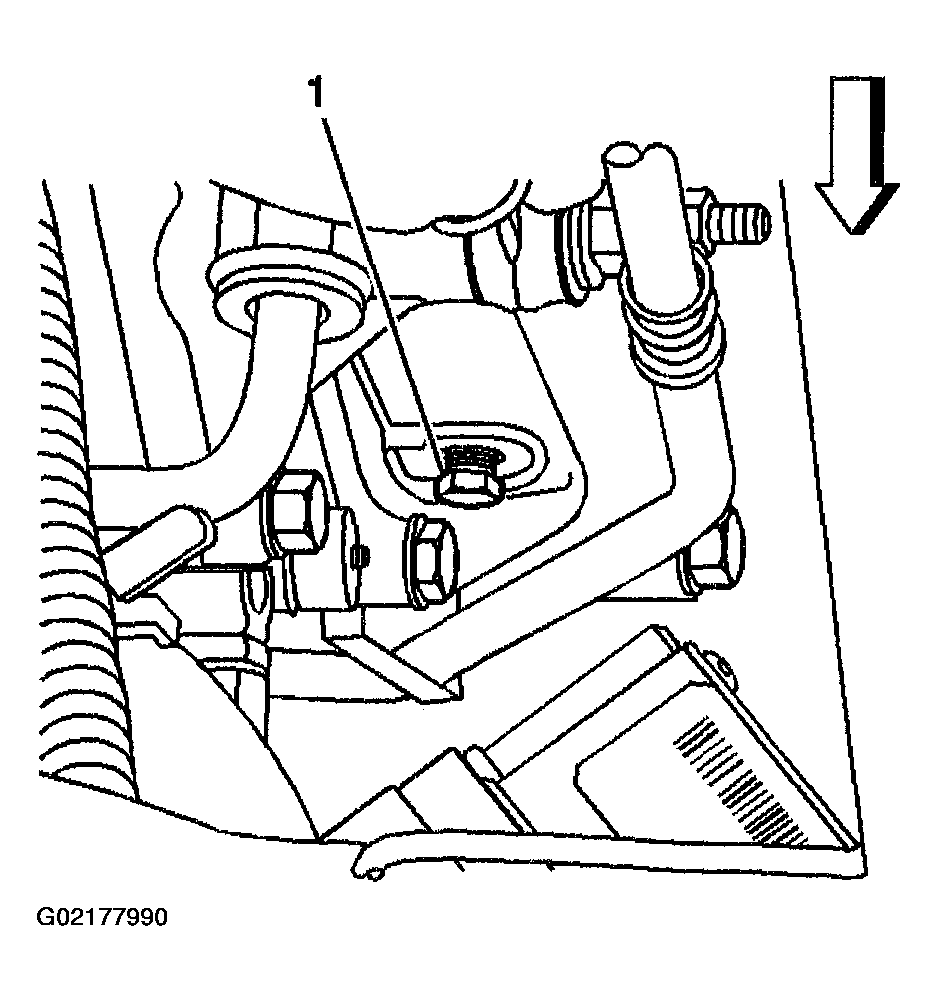

    Fig 1: Installing Oil Pressure Test Plug
    G02177990Courtesy of GENERAL MOTORS CORP.
  2. Install the throttle body air inlet duct. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation.
