Installation Procedure

  1. Inspect the output shaft (57) splines for burrs or damage. Inspect the snap rings (56) for overexpansion.
    Fig 1: View Of Output Shaft & Snap Rings
    G02178014Courtesy of GENERAL MOTORS CORP.
  2. Install the snap rings (56) onto the output shaft and install the output shaft (57) from the channel plate side of the transmission.

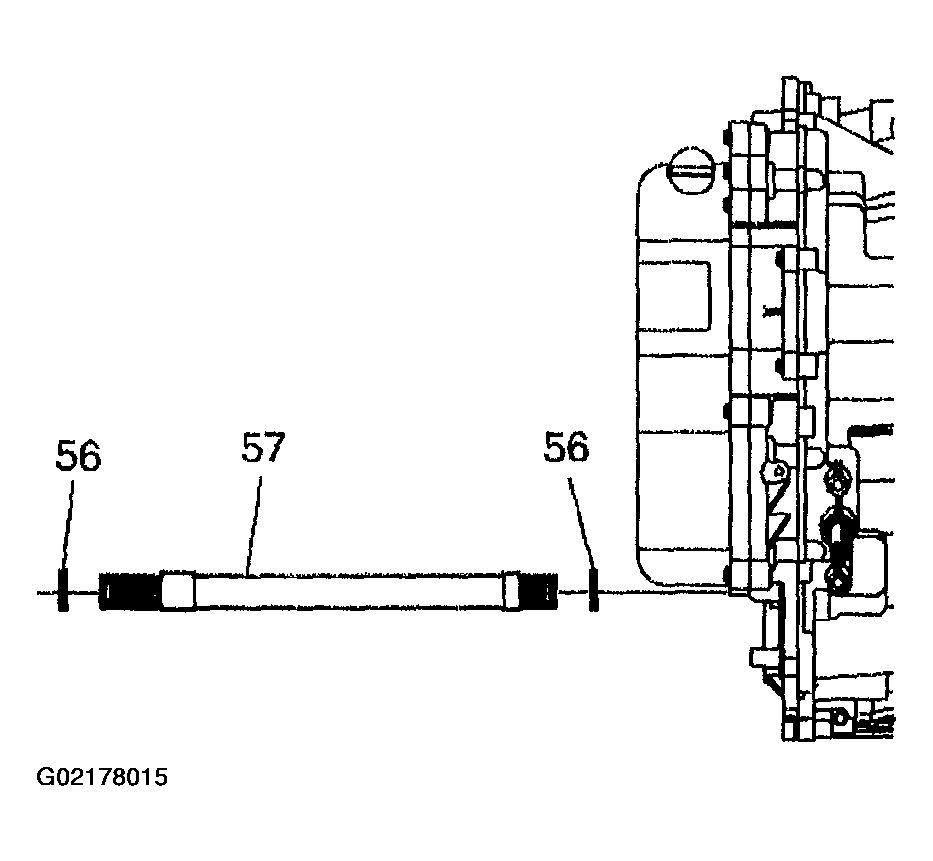

    Fig 2: Installing Output Shaft & Snap Rings
    G02178015Courtesy of GENERAL MOTORS CORP.
  3. Install the differential carrier. Refer to DIFFERENTIAL CARRIER REPLACEMENT   .
  4. Install the left drive axle. Refer to AXLE SHAFTS in Axle Shafts.
