Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the torque converter cover.
Tighten

Tighten the cover bolt to 12 N.m (106 lb in).

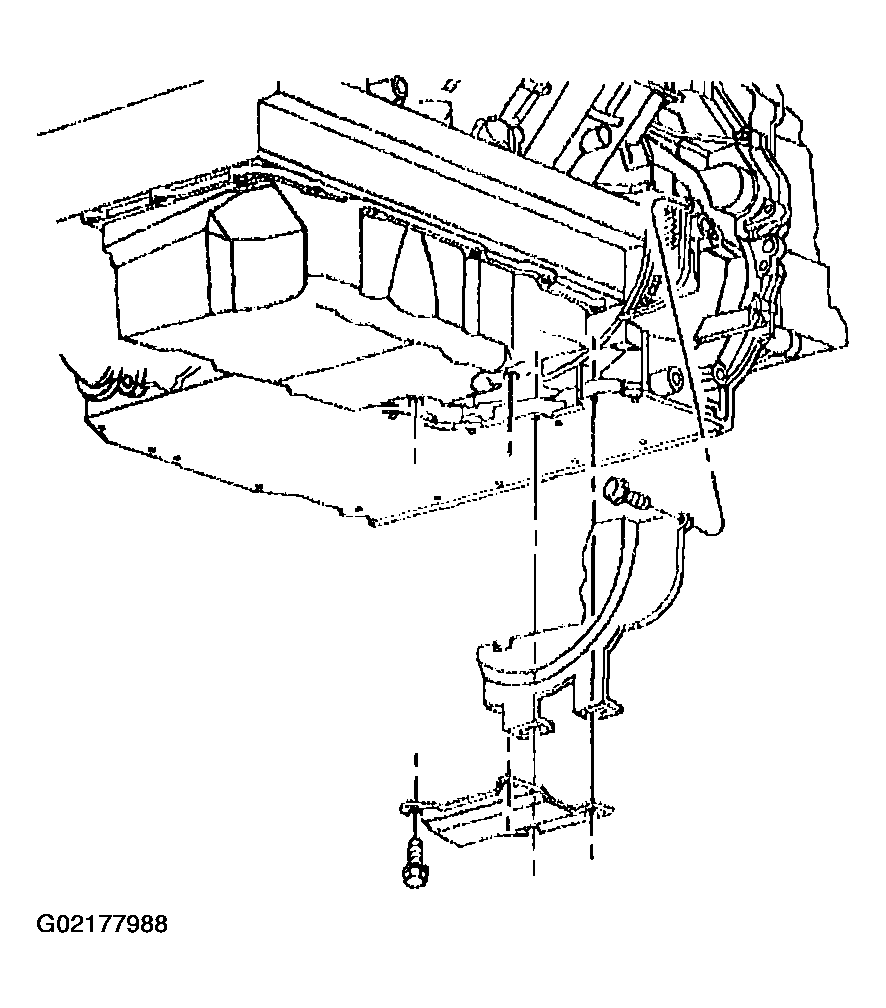

Fig 1: Installing Torque Converter Cover & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the engine-to-transmission brace and attaching bolts.
Tighten

Tighten the bolts to 47 N.m (35 lb ft).
Lower the vehicle.
