Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

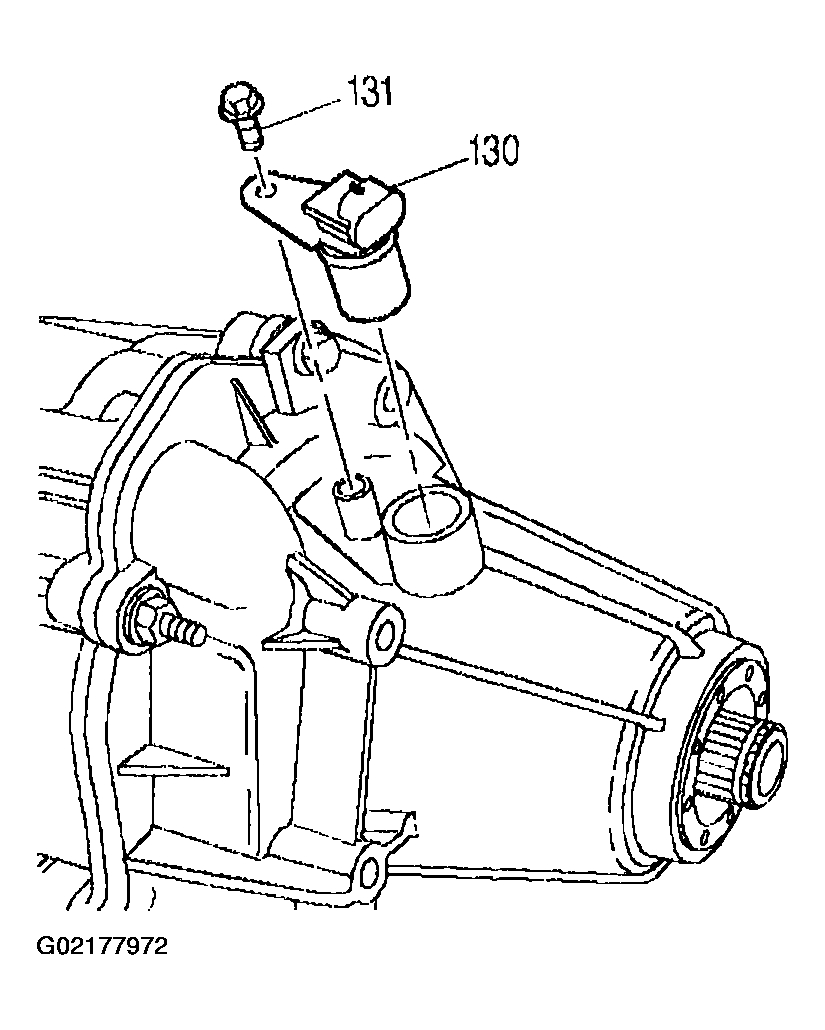

Install the vehicle speed sensor (130) and the retaining bolt (131). Install a new O-ring seal on sensor if necessary.
Tighten

Tighten the bolt to 10 N.m (89 lb in).

Fig 1: Installing Vehicle Speed Sensor & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Install the electrical connector at the sensor.

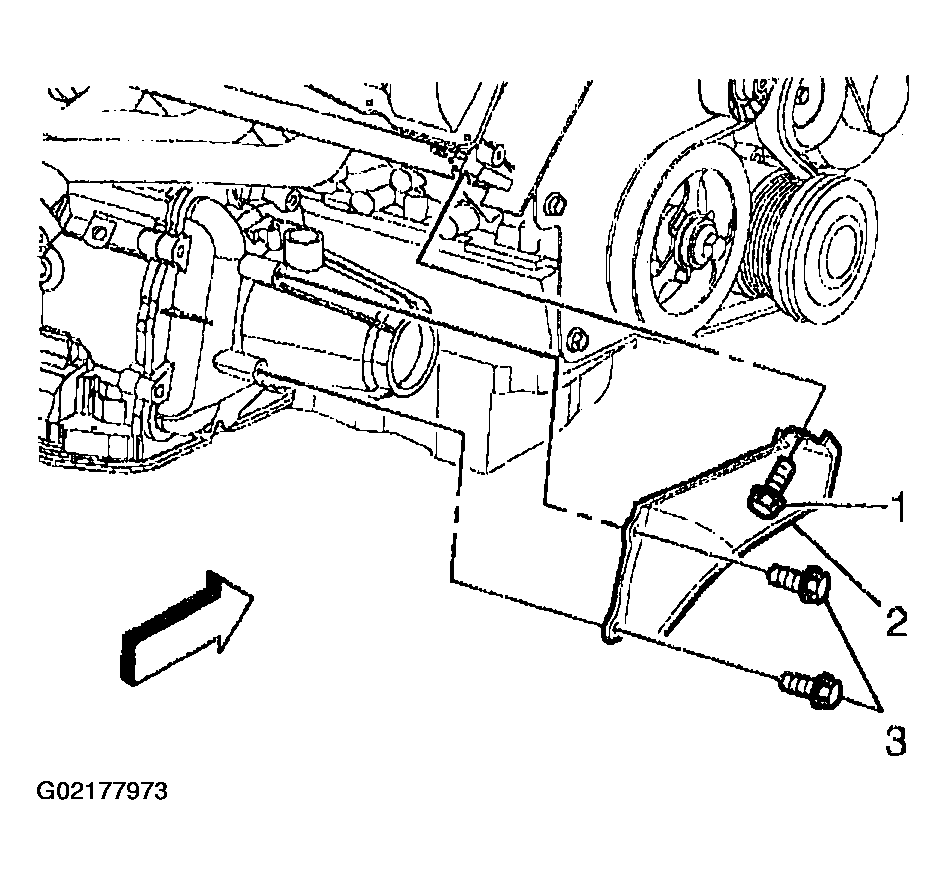

Install the bolts (1, 3) securing the front transaxle brace (2) to the transaxle and right cylinder head.

Fig 2: Installing Front Transaxle Brace & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
