Automatic Transaxle - 4T80-E
›
Specifications
›
Range Reference
Range Reference

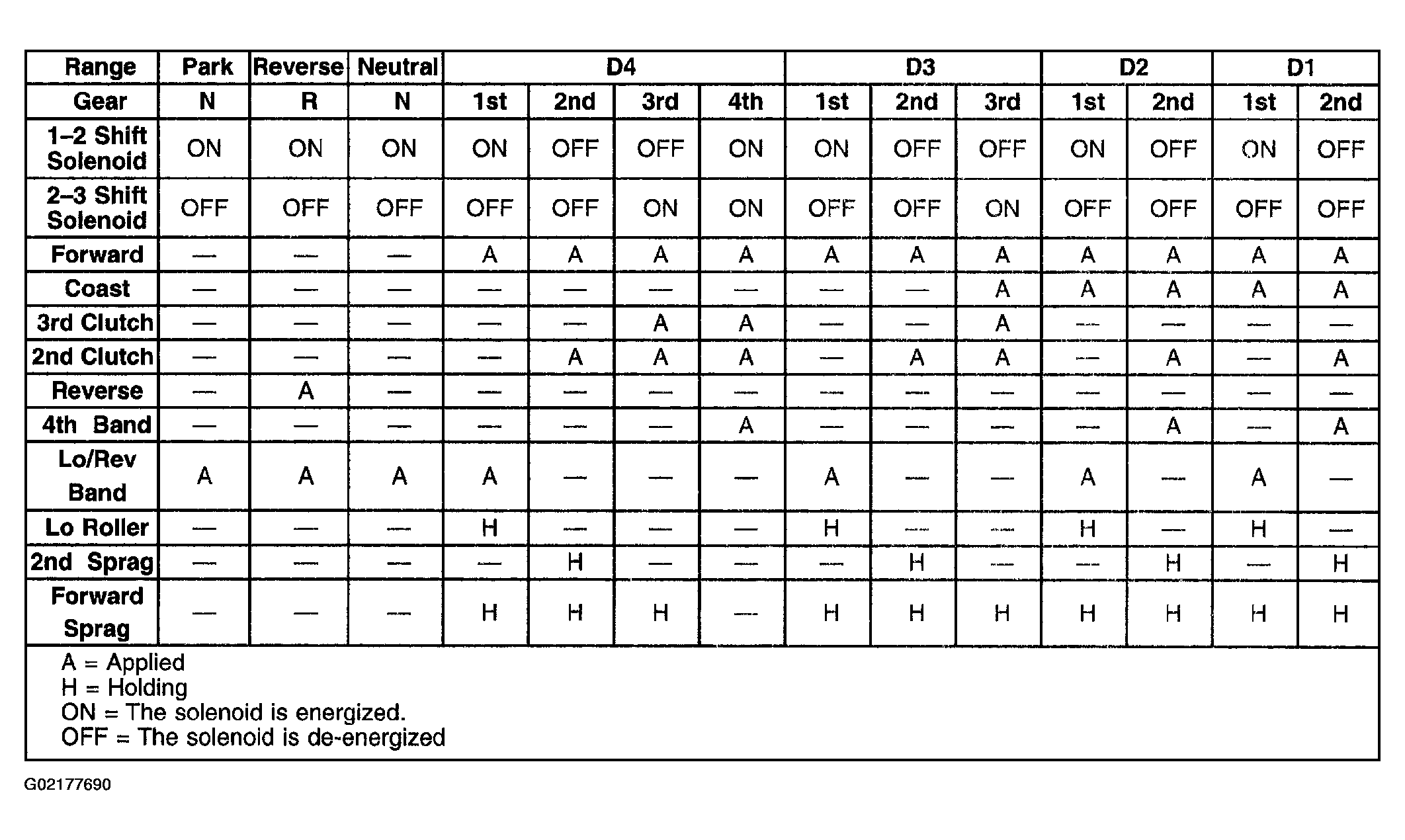

Fig 1: Range Reference Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
