Transmission Fluid Temperature (TFT) Sensor Specifications

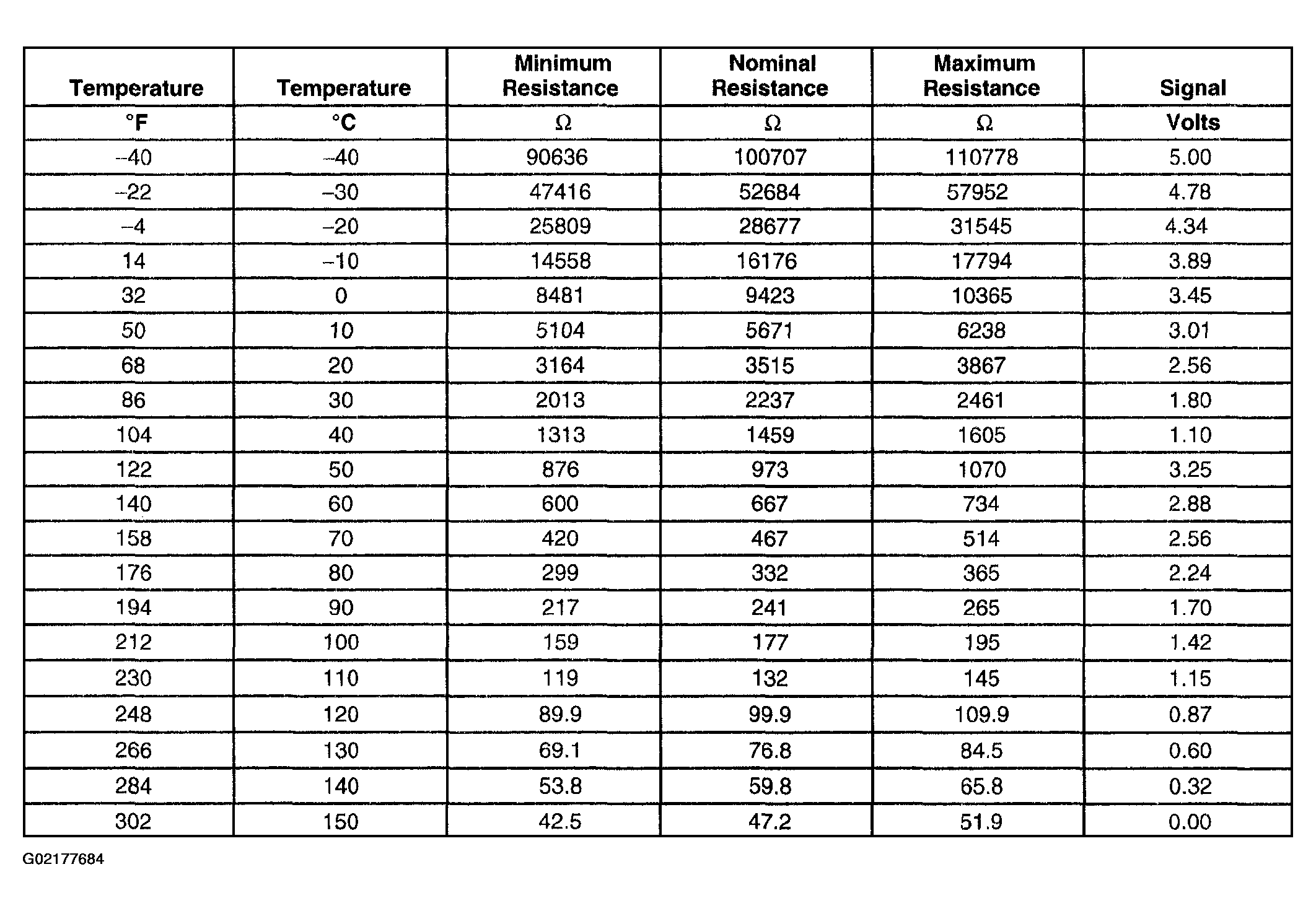

Fig 1: Transmission Fluid Temperature Sensor Specifications
G02177684Courtesy of GENERAL MOTORS CORP.
